Product Description

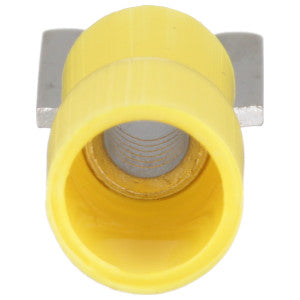

The PANDUIT PV10-10FX-D Pan-Term® terminal is designed for fast assembly and reliable performance. This fork terminal is vinyl insulated and accommodates 12-10 AWG wire and a #10 stud size. It features expanded insulation for large wire O.D. and is available in a bulk package.
- Fork Terminal
- Vinyl insulated
- Expanded insulation for large wire O.D.
Product Highlights
The PV10-10FX-D ensures secure wire termination with its internal barrel serrations and brazed seam, making it ideal for various electrical applications.
Product Information
Standard Information
-
Brand: PANDUIT
-
Manufacturer Part Number: PV10-10FX-D
-
Country of Origin: MX - Mexico
Technical Specifications
-
ECCN: EAR99
-
UNSPSC: 39121409
-
Brand: Panduit
-
Finish: Tin-Plated
-
Standard: UL Listed 587H E52164; CSA Certified LR31212
-
Material: Copper
-
Use With: CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550)
-
Color: Yellow
-
Conductor Size: 12-10 AWG
-
Flammability Rating: UL94V-0
-
Insulation Material: Vinyl
-
Outer Diameter: 0.25
-
Rated Voltage: 600V
-
Stud Size: #10
-
Lug Wire Size: 12-10 AWG
-
Color Family: Yellow
-
Max. Temperature Rating: 221 F
-
Barrel Type: Beveled Edge/Brazed Seam/Funnel Entry/Serrated
-
Conductor Type: Solid/Stranded
-
Series: Pan-Term
-
Temperature Rating: 221 deg F
-
Tongue Type: Standard Fork
-
Type: Insulated Loose Piece
-
Voltage Rating: 600 VAC
-
Wire Gauge: 10-12 AWG
-
Manufacturer: Panduit Corp
-
Insulation: Insulated
-
Features: Brazed Seam, Serrated Termination
-
Packaging: Bulk
-
Part Status: Active
-
Contact Finish: Tin
-
Terminal Type: Standard
-
Contact Material: Copper
-
Insulation Diameter: 0.250" (6.35mm)
-
Width - Outer Edges: 0.370" (9.40mm)
-
Material - Insulation: Vinyl
-
Length - Overall: 1.110" (28.19mm)
-
Tongue Inside Opening: 0.200" (5.08mm)
-
Mounting Type: Free Hanging (In-Line)
-
Base Product Number: PV10
-
Termination: Crimp
