Panduit PV10-10F-L Pan-Term Vinyl Insulated Fork Terminal 600VAC #10 Stud

Product Description

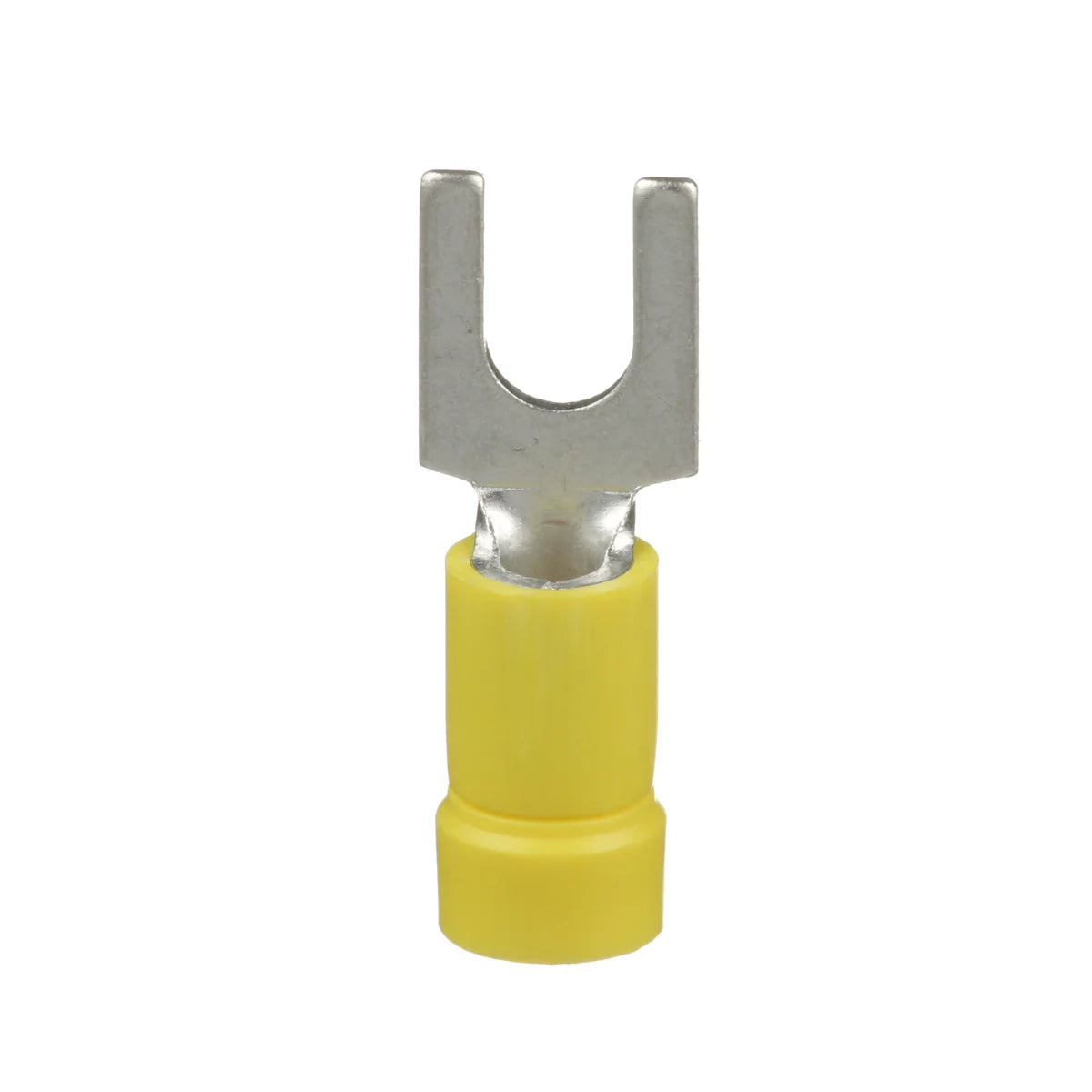

The PV10-10F-L Pan-Term Terminal by Panduit is a vinyl insulated fork terminal. This product is designed to provide strong connections in various wiring applications. The terminal features a brazed seam which protects the barrel from splitting during the crimp process. Internal serrations enhance wire contact, ensuring maximum tensile strength. The extended insulation helps secure the connection and offers strain relief when crimped.

• Vinyl insulation for durability and safety.
• Compatible with 14 to 10 AWG conductors.
• Rated for 600 volts per UL 486 specifications.

Product Highlights

This fork terminal's design allows fast installation, eliminating the need to remove fasteners. The metal insulation grip sleeve also aids in protecting the crimp joint from damage during high-vibration conditions.

Product Information

Standard Information

• Manufacturer: Panduit
• Part Number: PV10-10F-L

Technical Specifications

• Type: Fork Terminal
• Color: Yellow
• Material: Copper
• Finish: Tin-Plated
• Voltage Rating: 600 VAC
• Temperature Rating: 221 Degrees Fahrenheit (105 Degrees Celsius)
• Wire Size: 14 to 10 AWG
• Stud Size: #10
