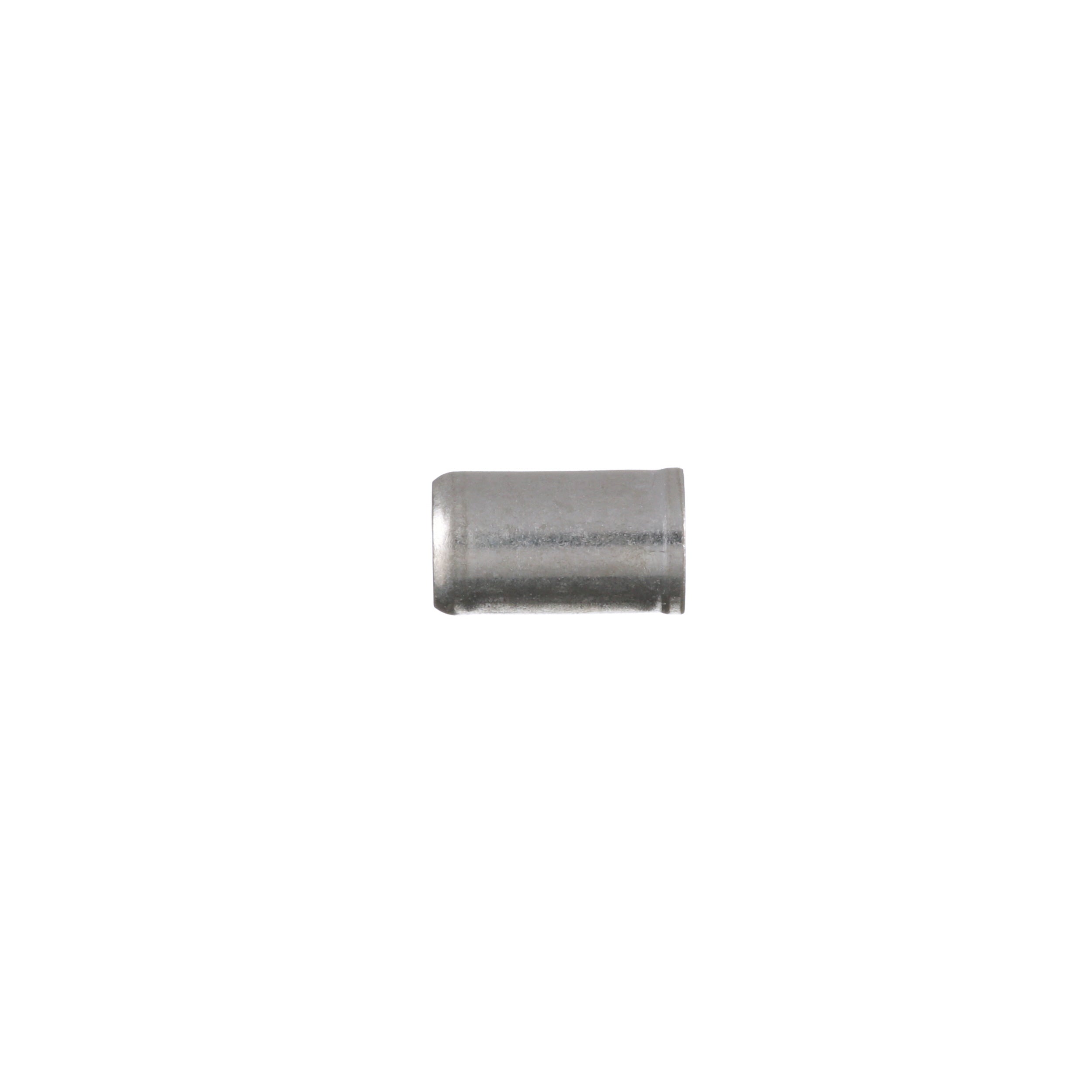

Panduit PS12-L Parallel Splice 14-12 AWG

Product Description

The PANDUIT PS12-L splice is a non-insulated parallel splice designed to splice two solid or stranded wires together to repair or lengthen wires. The parallel design requires only one crimp to complete the splice, and the seamless tubular barrel provides a consistent high-performance quality crimp.

• Designed to splice two solid or stranded wires together to repair or lengthen wires
• Parallel design results in only one crimp required to complete splice
• Seamless tubular barrel provides a consistent high performance quality crimp

Product Highlights

The PS12-L splice offers an economical termination when insulation is not required and is suitable for 14 to 12 AWG solid or stranded copper conductors.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: PS12-L
• Country of Origin: Mexico

Technical Specifications

• Manufacturer Part Number: PS12-L
• Series: PS Series
• Conductor Type: Solid/Stranded Copper
• Conductor Size: 14 to 12 AWG
• Voltage Rating: 2000 VAC
• Temperature Rating: 302 deg F
• Material: Brass
• Finish: Tin Plated
• Type: Loose Piece Metallic Non-Insulated Standard
• Wire Strip Length: 7/16 in
• Barrel Outer Diameter: 0.22 in
• Length: 0.38 in
• Standards/Approvals: ARRA Compliant|Buy American Act Compliant|CSA C22.2 File No. 65|RoHS Compliant|UL 486C
• Terminals: Wire Splice Connectors
• Number of Wire Entries: 2
• Termination: Crimp
• Wire Gauge: 12-14 AWG
• Insulation: Non-Insulated
• Base Product Number: PS12
• Terminal Type: Inline, Individual Openings (Parallel)
• Brand: Panduit
• Height: 0.22"
• Width: 0.22"
• Barrel Length: 0.38 in
• Barrel Type: Seamless
• Color Coding: Metallic
• TC Connection: Standard
• Voltage: 2,000 Volt
• Wire Size: 14-12 AWG
• Overall Length: 0.38 in
• Country of Origin: Mexico
• Standards Met: UL 486C, CSA C22.2 No.65
