Panduit PNL-4-C Pan-Lug Mechanical Connectors - Lug

Product Description

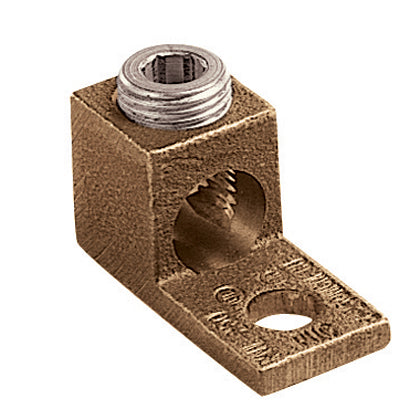

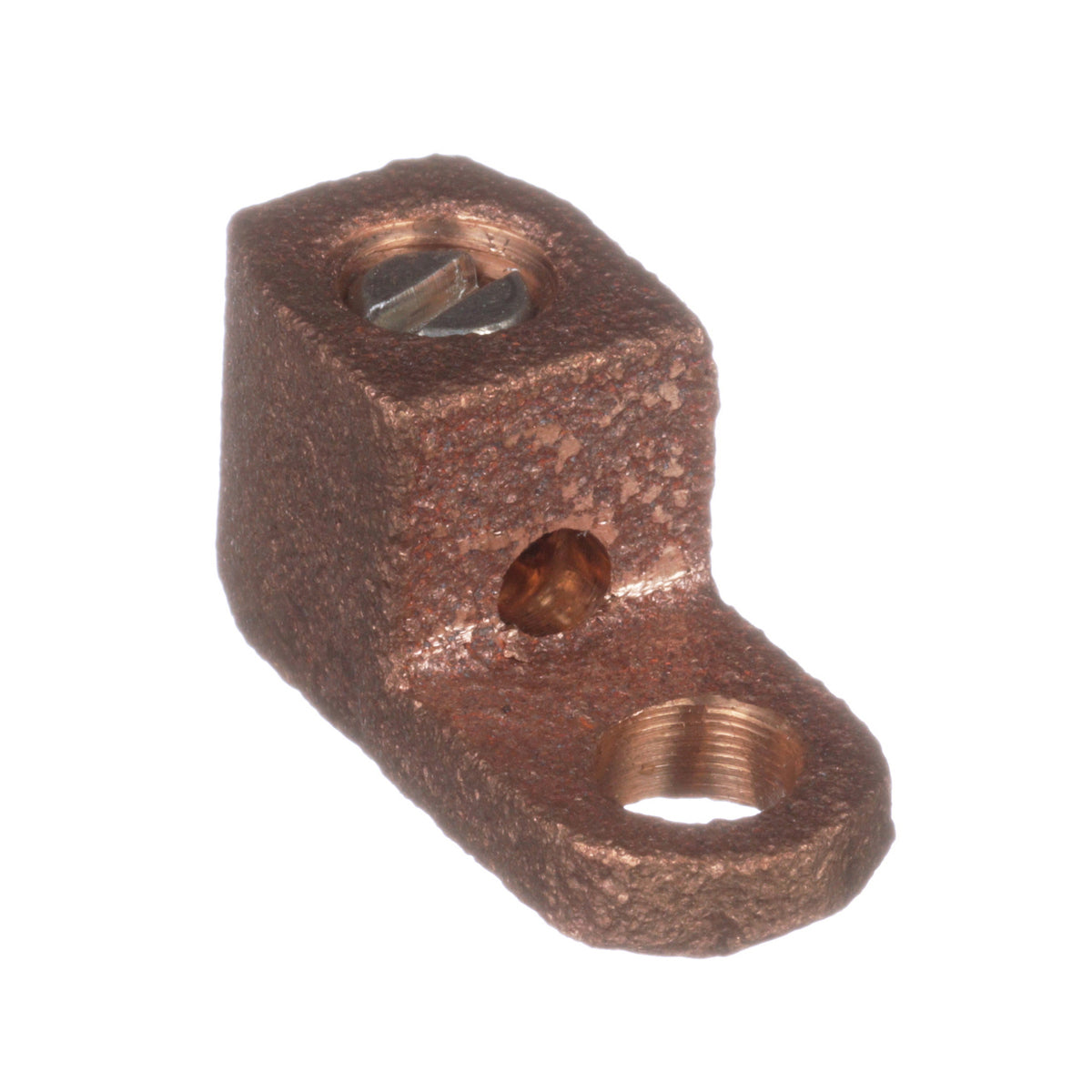

The Panduit PNL-4-C is a mechanical connector lug designed for solid and stranded copper conductors ranging from fourteen to four AWG. This connector features a single barrel with a straight tongue and is made of high-strength cast copper for reliable performance in electrical applications. It has one bolt hole with a quarter inch stud size, allowing for secure connections. The product is suitable for a variety of wiring management and connection tasks.

• Compatible with #14 to #4 AWG solid and stranded conductors
• Designed for use with a 1/4 inch stud
• Constructed from corrosion-resistant cast copper material

Product Highlights

High-quality mechanical connector for reliable electrical connections in various applications.

Product Information

Standard Information

• Manufacturer: Panduit
• Model Number: PNL-4-C

Technical Specifications

• Catalog Number: PNL-4-C
• Material: Cast Copper
• Number of Bolt Holes: 1
• Stud Size: 1/4 inch
• Voltage Rating: 600 VAC
• Temperature Rating: 90 degrees Celsius
• Dimensions: 1.25 inches L x 0.53 inches W x 0.56 inches H
• Country of Origin: India
