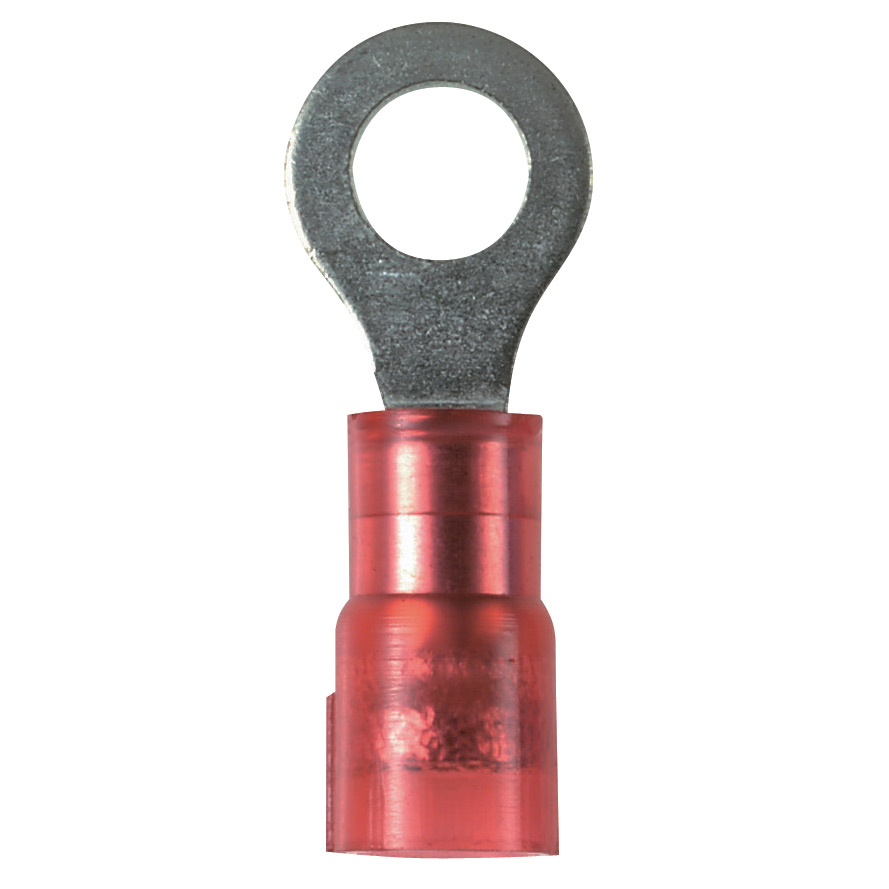

Panduit PNF18-8R-M Ring Terminal #8

Product Description

The Panduit PNF18-8R-M is a ring terminal designed for secure electrical connections. Suitable for 18-22 AWG wires and featuring a #8 stud size. The terminal features a serrated termination and a convenient funnel entry for easy installation. Its nylon insulation ensures safety and reliability.

• Serrated Termination
• Insulated
• Funnel entry

Product Highlights

Ring terminal designed for optimal performance, ensuring safety and reliability for various applications in the electrical and electronics fields.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: PNF18-8R-M
• Country of Origin: MX - Mexico

Technical Specifications

• Category: Connectors, Interconnects
• Terminals: Ring Connectors
• Termination: Crimp
• Manufacturer: Panduit
• Wire Gauge: 18-22 AWG
• Series: Pan-Term
• Insulation: Insulated
• Packaging: Bulk
• Features: Serrated Termination
• Part Status: Active
• Terminal Type: Circular
• Contact Material: Copper
• Stud/Tab Size: 8 Stud
• Contact Finish: Tin
• Thickness: 0.032" (0.81mm)
• Insulation Diameter: 0.080" ~ 0.136" (2.03mm ~ 3.45mm)
• Width - Outer Edges: 0.310" (7.87mm)
• Material - Insulation: Polyamide (PA), Nylon
• Length - Overall: 0.870" (22.10mm)
• Base Product Number: PNF18
• Mounting Type: Free Hanging (In-Line)
• Brand: Pan-Term
• Finish: Tin-Plated
• Standard: UL Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS25036-149)
• Material: Copper
• Use With: CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550)
• Conductor Size: 22-18 AWG
• Flammability Rating: UL94V-2/UL94-HB
• Insulation Material: Nylon
• Outer Diameter: 0.25
• Rated Voltage: 1000V
• Stud Size: #8
• Lug Wire Size: 22-18 AWG
• Color Family: Red
• Length: 0.87 in.
• Width: 0.31 in.
• Max. Temperature Rating: 221 F
• Product Category: Crimp Terminals, Housings, Splices, & Lugs
• Crimp Terminals, Housings, & Splices: Panduit
• Manufacturer Part Number: Panduit PNF18-8R-M
• Maximum Operating Temperature: 105 C, 221 F
• Voltage: 1000 V, 1 kV
• Outside Diameter: .25 in, 6.4 mm
• Wire Insulation Diameter: .14 in, .4 mm
• Barrel Type: Insulation Grip Sleeve
• Product Type: Ring Terminal
• Part Aliases: MS25036-149
• SKU: PANPNF18-8R-M
• RoHS Compliant: Yes
