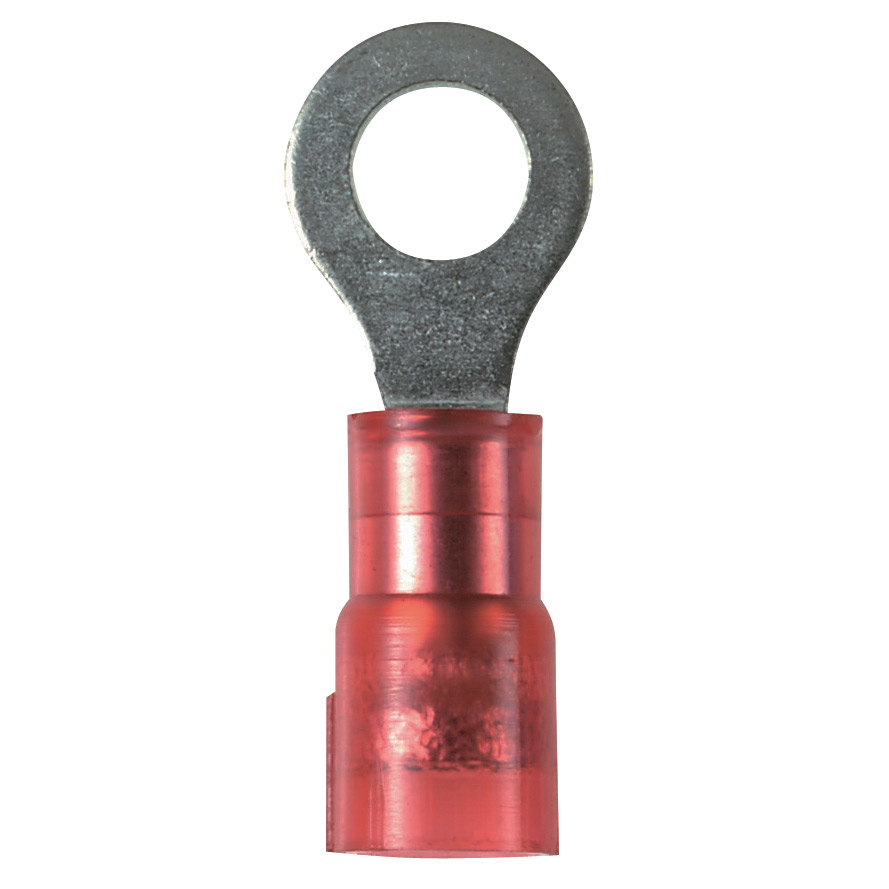

Panduit PNF18-10R-M Ring Terminal 18-22AWG #10

Product Description

The PANDUIT PNF18-10R-M is a ring terminal connector designed for 18-22 AWG wires and #10 studs. It features a serrated termination and insulated design. This ring terminal ensures secure electrical connections in various applications. The copper construction with a tinned finish guarantees durability.

• Serrated Termination
• Insulated
• Funnel entry for easy installation

Product Highlights

Ring terminal with serrated termination, insulated, and funnel entry for easy installation.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: PNF18-10R-M
• Country of Origin: MX - Mexico

Technical Specifications

• Category: Connectors, Interconnects
• Terminals: Ring Connectors
• Termination: Crimp
• Manufacturer: Panduit Corp
• Wire Gauge: 18-22 AWG
• Series: Pan-Term
• Insulation: Insulated
• Packaging: Bulk
• Features: Serrated Termination
• Part Status: Active
• Color: Red
• Terminal Type: Circular
• Contact Material: Copper
• Stud/Tab Size: 10 Stud
• Contact Finish: Tin
• Thickness: 0.032" (0.81mm)
• Insulation Diameter: 0.080" ~ 0.136" (2.03mm ~ 3.45mm)
• Width - Outer Edges: 0.320" (8.13mm)
• Material - Insulation: Polyamide (PA), Nylon
• Length - Overall: 0.870" (22.10mm)
• Base Product Number: PNF18
• Mounting Type: Free Hanging (In-Line)
• RoHS Status: ROHS3 Compliant
• ECCN: EAR99
• Moisture Sensitivity Level (MSL): Not Applicable
• HTSUS: 8536.90.4000
• REACH Status: REACH Unaffected
• Brand: Pan-Term
• Finish: Tin-Plated
• Standard: UL Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS25036-103)
• Material: Copper
• Use With: CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550)
• Conductor Size: 22-18 AWG
• Flammability Rating: UL94V-2/UL94-HB
• Insulation Material: Nylon
• Outer Diameter: 0.25
• Stud Size: #10
• Lug Wire Size: 22-18 AWG
• Color Family: Red
• Max. Temperature Rating: 221 F
• Manufacturer Part Number: Panduit PNF18-10R-M
• Maximum Operating Temperature: 105 C, 221 F
• Barrel Length: 10.9 mm, .43 in
• Wire Insulation Diameter: .14 in, 3.5 mm
• Barrel Type: Insulation Grip Sleeve
• Tinned: None
• Product Type: Ring Terminal
• Part Aliases: MS25036-103
