Panduit PNF18-10R-C Pan-Term Ring Terminal #10

Product Description

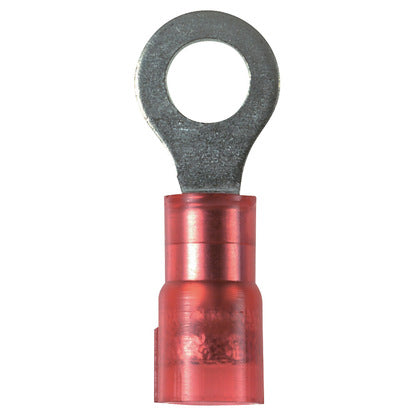

The Panduit PNF18-10R-C Pan-Term Ring Terminal is designed for solid or stranded conductors. This ring terminal is suitable for 18-22 AWG wires and has a #10 stud size. It features electro-tin plating for corrosion resistance and color-coded markings for easy wire size identification.

• Electro-tin plated for corrosion resistance
• Color coded for easy wire size identification
• Ring tongue provides secure termination

Product Highlights

The PANDUIT PNF18-10R-C ring terminal ensures secure and efficient electrical connections with its durable construction and easy identification features.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: PNF18-10R-C

Technical Specifications

• Conductor Size: 18 AWG
• Conductor Type: Solid/Stranded
• Finish: Tin Plated
• Length: 0.87 in
• Manufacturer Part Number: PNF18-10R-C
• Material: Copper
• Stud Size: #10 in
• Temperature Rating: 221 deg F
• Tongue Size: 0.32 in W x 0.03 in THK
• Tongue Type: Ring
• Type: Type PNF-R
• Voltage Rating: 600 V
• Termination: Crimp
• Wire Gauge: 18-22 AWG
• Series: Pan-Term
• Insulation: Insulated
• Packaging: Bulk
• Features: Serrated Termination
• Part Status: Active
• Contact Material: Copper
• Contact Finish: Tin
• Thickness: 0.032" (0.81mm)
• Insulation Diameter: 0.080" ~ 0.136" (2.03mm ~ 3.45mm)
• Width - Outer Edges: 0.320" (8.13mm)
• Material - Insulation: Polyamide (PA), Nylon
• Length - Overall: 0.870" (22.10mm)
• Base Product Number: PNF18
• Mounting Type: Free Hanging (In-Line)
• Brand: PANDUIT
• Flammability Rating: UL94V-2/UL94-HB
• For Use With: CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550)
• Insulation Material: Nylon
• Insulation Type: Nylon
• Primary Type: Ring Terminal
• Wire Size: 22-18 AWG
