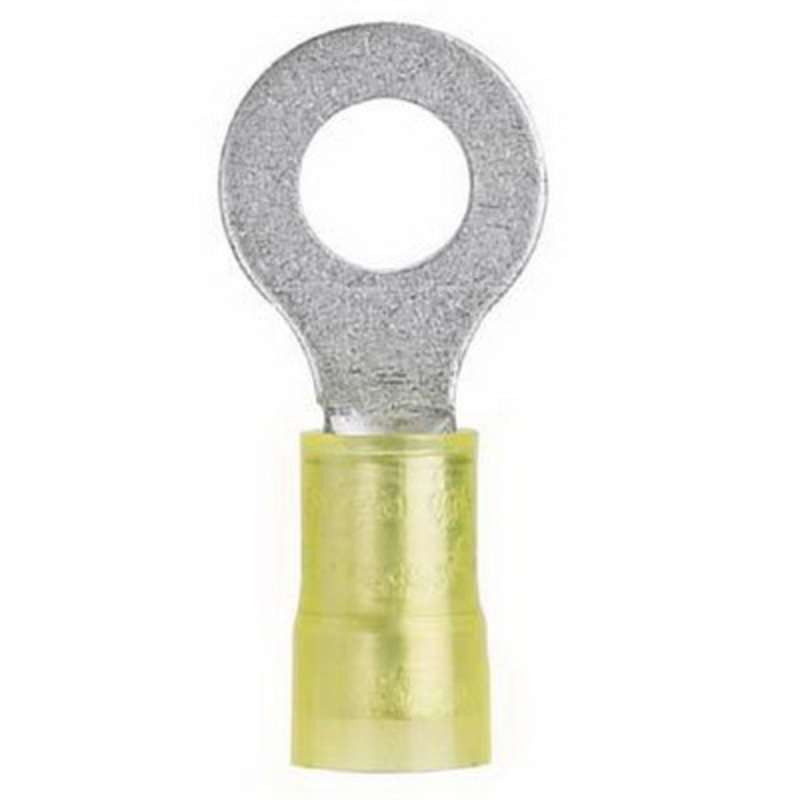

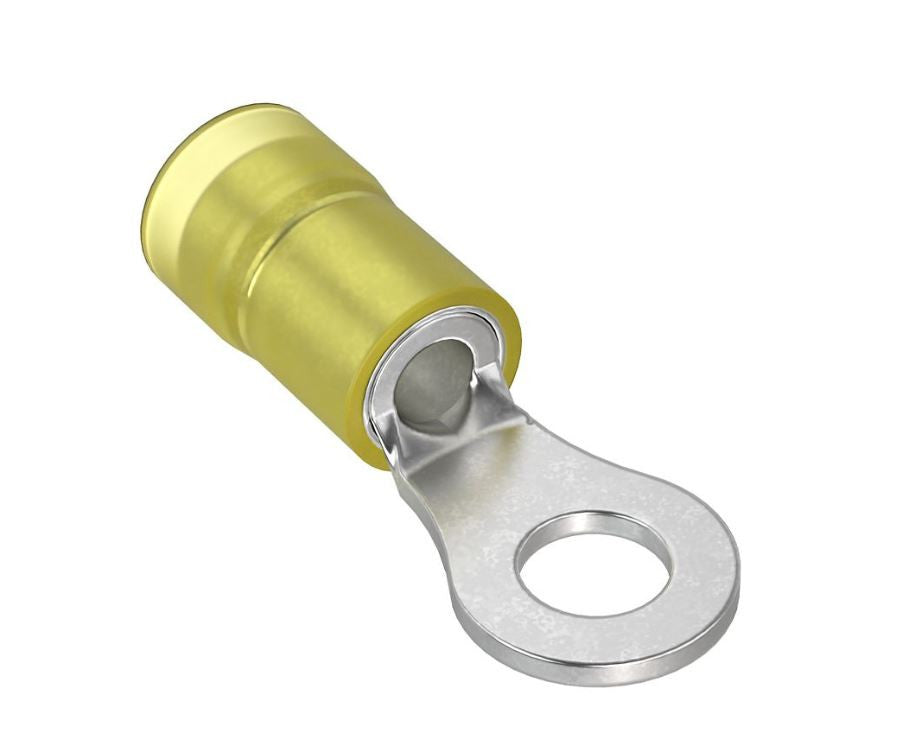

Panduit PN22-6R-C Ring Terminal Connector 26-22 AWG #6 Stud

Product Description

The PANDUIT PN22-6R-C is a ring terminal connector designed for 26-22 AWG wires and #6 stud size. This Pan-Term® ring terminal ensures secure and reliable connections in various electrical applications. It features a nylon insulation for enhanced protection and durability.

• Designed for 26-22 AWG wires
• Features a #6 stud size
• Nylon insulated for enhanced protection

Product Highlights

The PANDUIT PN22-6R-C ring terminal connector is ideal for creating secure connections in electrical applications.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: PN22-6R-C
• Country of Origin: Japan

Technical Specifications

• Category: Connectors, Interconnects
• Terminals: Ring Connectors
• Mounting Type: Free Hanging (In-Line)
• Manufacturer: Panduit Corp
• Termination: Crimp
• Series: Pan-Term
• Wire Gauge: 22-26 AWG
• Insulation: Insulated
• Part Status: Active
• Terminal Type: Circular
• Contact Material: Copper
• Stud/Tab Size: 6 Stud
• Contact Finish: Tin
• Thickness: 0.020" (0.51mm)
• Insulation Diameter: 0.090" (2.29mm)
• Width - Outer Edges: 0.200" (5.08mm)
• Material - Insulation: Polyamide (PA), Nylon
• Length - Overall: 0.690" (17.53mm)
• Base Product Number: PN22
• Finish: Tin-Plated
• Use With: CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550)
• Color: Yellow
• Conductor Size: 26-22 AWG
• Flammability Rating: UL94V-2/UL94-HB
• Insulation Material: Nylon
• Stud Size: #6
• Lug Wire Size: 26-22 AWG
• Color Family: Yellow
• Length: 0.69 in.
• Width: 0.2 in.
• Product Type: Ring Terminal
• Shrouded: Unshrouded
• Outer Ring Diameter: 0.2in
• Material Category: Metal, Plastic
• Inner Ring Diameter: 0.15in
• Maximum Operating Temperature: +221 °F
• Wire Range: 26-22 AWG
• Clearance: .18"
• Max Insulator Dia: .090"
