Panduit pn18-8lf-c pan-term locking fork terminal #8

Product Description

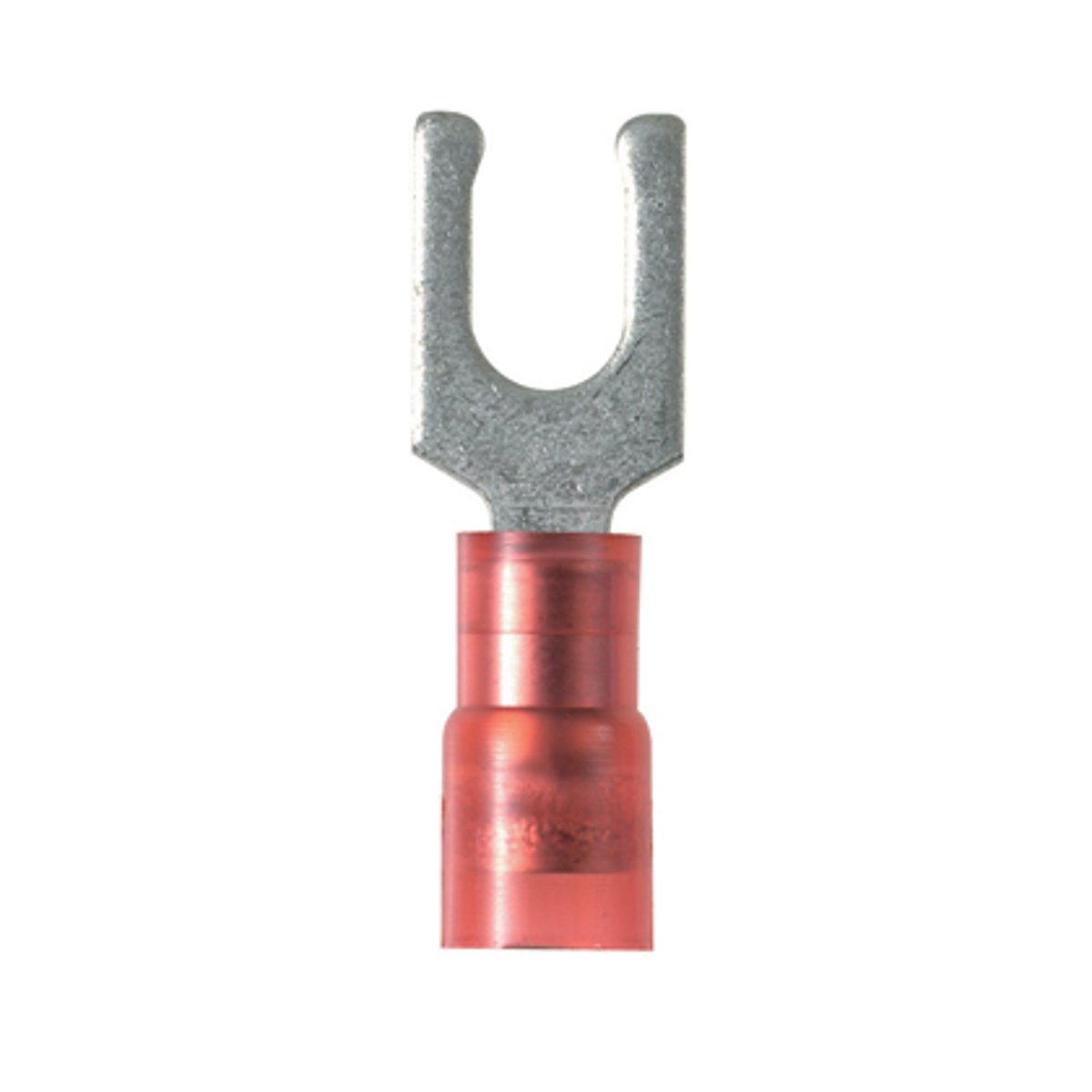

The PANDUIT PN18-8LF-C Pan-Term locking fork terminal is nylon insulated and accommodates 22 - 18 AWG wire with a #8 stud size. These terminals feature a fork shape enclosure and tin-plated finish. They are UL Listed and CSA Certified.

• Nylon insulated
• Accommodates 22 - 18 AWG wire
• #8 stud size

Product Highlights

The PANDUIT PN18-8LF-C locking fork terminal ensures secure connections in electrical applications.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: PN18-8LF-C
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: PN18-8LF-C
• Manufacturer: Panduit
• Brand: Panduit
• Sub Brand: Pan-Term
• Country of Origin: Mexico
• Made in USA: No
• Color: Red
• Connection: Standard
• Enclosure: Fork shape
• Finish: Tin-Plated
• Insulation: Nylon
• Material: Copper
• Standard: UL Listed 587H E52164; CSA Certified LR31212
• UPC: 074983803323
• GTIN: 00074983803323
• Item Type: Locking Fork Terminal
• Size: #8
• Temperature Rating: 221 Degrees Fahrenheit (105 Degrees Celsius)
• Voltage Rating: 600
• Wire Size: #18 AWG
• Category: Connectors, Interconnects
• Terminals: Spade Connectors
• Wire Gauge: 18-22 AWG
• Series: Pan-Term
• Features: Serrated Termination
• Packaging: Bulk
• Contact Finish: Tin
• Contact Material: Copper
• Stud/Tab Size: 8 Stud
• Insulation Diameter: 0.145" (3.68mm)
• Width - Outer Edges: 0.290" (7.37mm)
• Material - Insulation: Polyamide (PA), Nylon
• Length - Overall: 0.890" (22.61mm)
• Tongue Inside Opening: 0.160" (4.06mm)
• Mounting Type: Free Hanging (In-Line)
• Base Product Number: PN18
• Termination: Crimp
• Part Status: Active
