Panduit pn18-6fn-c pan-term pn18-6fn-c loose piece forks

Product Description

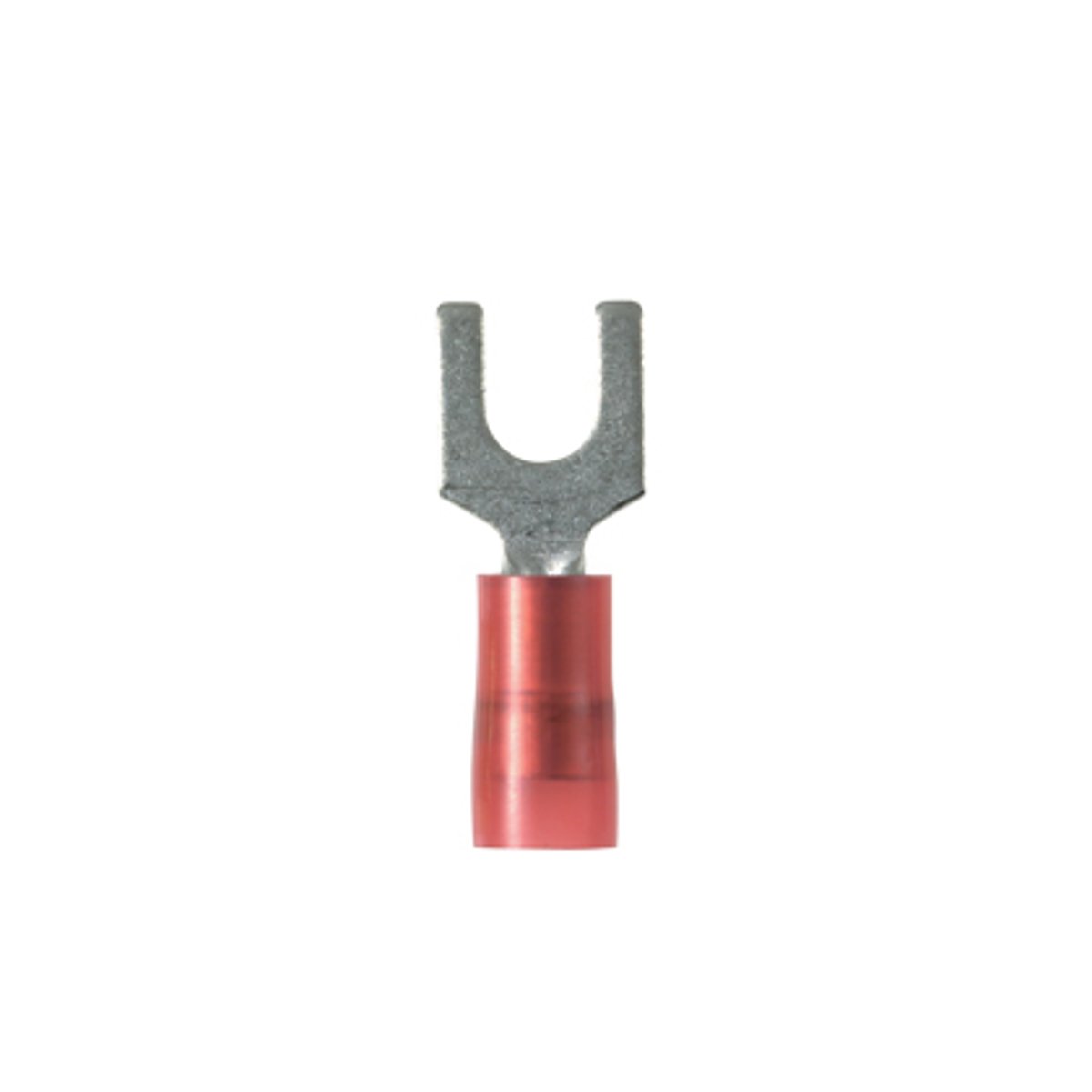

The PANDUIT PN18-6FN-C Pan-Term fork terminal is nylon insulated and accommodates 22-18 AWG wires. Designed for a #6 stud size with a narrow tongue, it ensures secure connections in various electrical applications. Constructed from copper with a tin-plated finish, this terminal offers excellent conductivity and corrosion resistance.

• Fork design allows for fast and easy installation without removing the fastener.
• Internal barrel serrations assure good wire contact and maximum tensile strength.
• Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications.

Product Highlights

This fork terminal features a narrow tongue, nylon insulation, and is suitable for 22-18 AWG wires with a #6 stud size.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: PN18-6FN-C
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: PN18-6FN-C
• Manufacturer: Panduit
• Brand: Panduit
• Sub Brand: Pan-Term
• Country of Origin: Mexico
• Made in USA: No
• Color: Red
• Connection: Standard
• Enclosure: Fork shape
• Finish: Tin-Plated
• Insulation: Insulated
• Material: Copper
• Standard: UL Listed 587H E52164; CSA Certified LR31212
• UPC: 074983808779
• GTIN: 00074983808779
• Item Type: Fork Terminal
• Size: #6
• Temperature Rating: 221 Degrees Fahrenheit (105 Degrees Celsius)
• Voltage Rating: 600 V
• Wire Size: #18 AWG
• Conductor Size: #18
• Conductor Type: Copper Stranded
• Length: 0.78 in
• Series: PN-FN
• Specifications: 7/32 in L Wire Strip, 0.08 to 0.145 in Dia Nylon Insulation, 0.2 in Clearance, Standard Barrel Configuration, Fork Shape Enclosure
• Standards/Approvals: ABS Approved|ARRA Compliant|Buy American Act Compliant|CSA C22.2 No. 65 File No. LR31212|RoHS Compliant|UL 486A|UL 486B/587H File No. E52164|UL 94 V-2 HB Flammability Rated
• Stud Size: #6
• Tongue Size: 0.24 in W x 0.03 in THK
• Tongue Type: Narrow Fork
• Type: Loose Piece
• Maximum Operating Temperature: 105 °C, 221 °F
• Overall Length: 19.8 mm, .78 in
• Stud Hole Size: 1/7 in, 3.5 in
• Maximum Wire Size: 18 AWG
• Minimum Wire Size: 22 AWG
• Barrel Type: Grip Sleeve
• Product: Crimp Spade Terminals
• Fork Type: Narrow Fork
• SKU: PANPN18-6FN-C
• ECCN: EAR99
• UNSPSC: 39121409
• Packaging: 100 per Package
• Use With: CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550)
• Flammability Rating: UL94-HB
• Rated Voltage: 600V
• Lug Wire Size: 22-18 AWG
• Color Family: Red
• Width: 0.24 in.
• Max. Temperature Rating: 221°F
• Category: Connectors, Interconnects
• Terminals: Spade Connectors
• Wire Gauge: 18-22 AWG
• Manufacturer Part Number: Panduit PN18-6FN-C
• Features: Butted Seam
• Part Status: Active
• Contact Finish: Tin
• Terminal Type: Standard
• Contact Material: Copper
• Stud/Tab Size: 6 Stud
• Insulation Diameter: 0.145" (3.68mm)
• Width - Outer Edges: 0.240" (6.10mm)
• Material - Insulation: Polyamide (PA), Nylon
• Length - Overall: 0.780" (19.81mm)
• Tongue Inside Opening: 0.150" (3.81mm)
• Mounting Type: Free Hanging (In-Line)
• Base Product Number: PN18
• Termination: Crimp
