Panduit PN18-10LF-M Spade Term 18-22AWG #10

Product Description

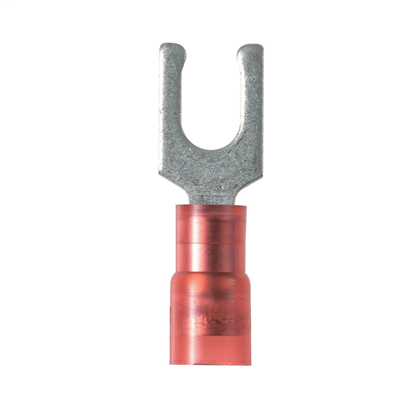

The PANDUIT PN18-10LF-M locking fork terminal is nylon insulated and designed for 22-18 AWG wires, fitting #10 studs. With a maximum operating temperature of 105°C, it ensures reliable performance in various environments. The copper construction with tin plating offers durability and conductivity, while the beveled barrel design facilitates efficient crimping.

• Locking Fork Terminal
• Nylon insulated
• 22 - 18 AWG

Product Highlights

These terminals are a must-have for any professional or DIY project requiring secure and long-lasting wire connections.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: PN18-10LF-M

Technical Specifications

• Category: Connectors, Interconnects
• Terminals: Spade Connectors
• Wire Gauge: 18-22 AWG
• Manufacturer: Panduit
• Insulation: Insulated
• Series: Pan-Term
• Features: Serrated Termination
• Packaging: Bulk
• Part Status: Obsolete
• Contact Finish: Tin
• Contact Material: Copper
• Stud/Tab Size: 10 Stud
• Insulation Diameter: 0.145" (3.68mm)
• Width - Outer Edges: 0.330" (8.38mm)
• Material - Insulation: Polyamide (PA), Nylon
• Length - Overall: 0.890" (22.61mm)
• Tongue Inside Opening: 0.190" (4.83mm)
• Mounting Type: Free Hanging (In-Line)
• Base Product Number: PN18
• Termination: Crimp
• Maximum Operating Temperature: 105 "".C, 221 "".F
• Stud Size: #10_1
• Stud Hole Size: 1/5 in, 4.8 mm
• Material: Copper
• Insulation Material: Nylon
• Maximum Wire Size: 18 AWG
• Minimum Wire Size: 22 AWG
• Barrel Type: Beveled
• Finish: Tin Plated
• Product: Crimp Spade Terminals
• Fork Type: Locking Fork
• Brand: PANDUIT
• Manufacturer Part Number: PN18-10LF-M
