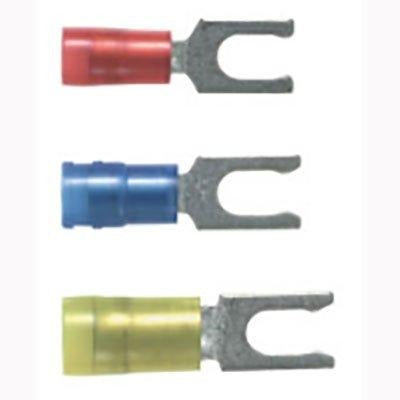

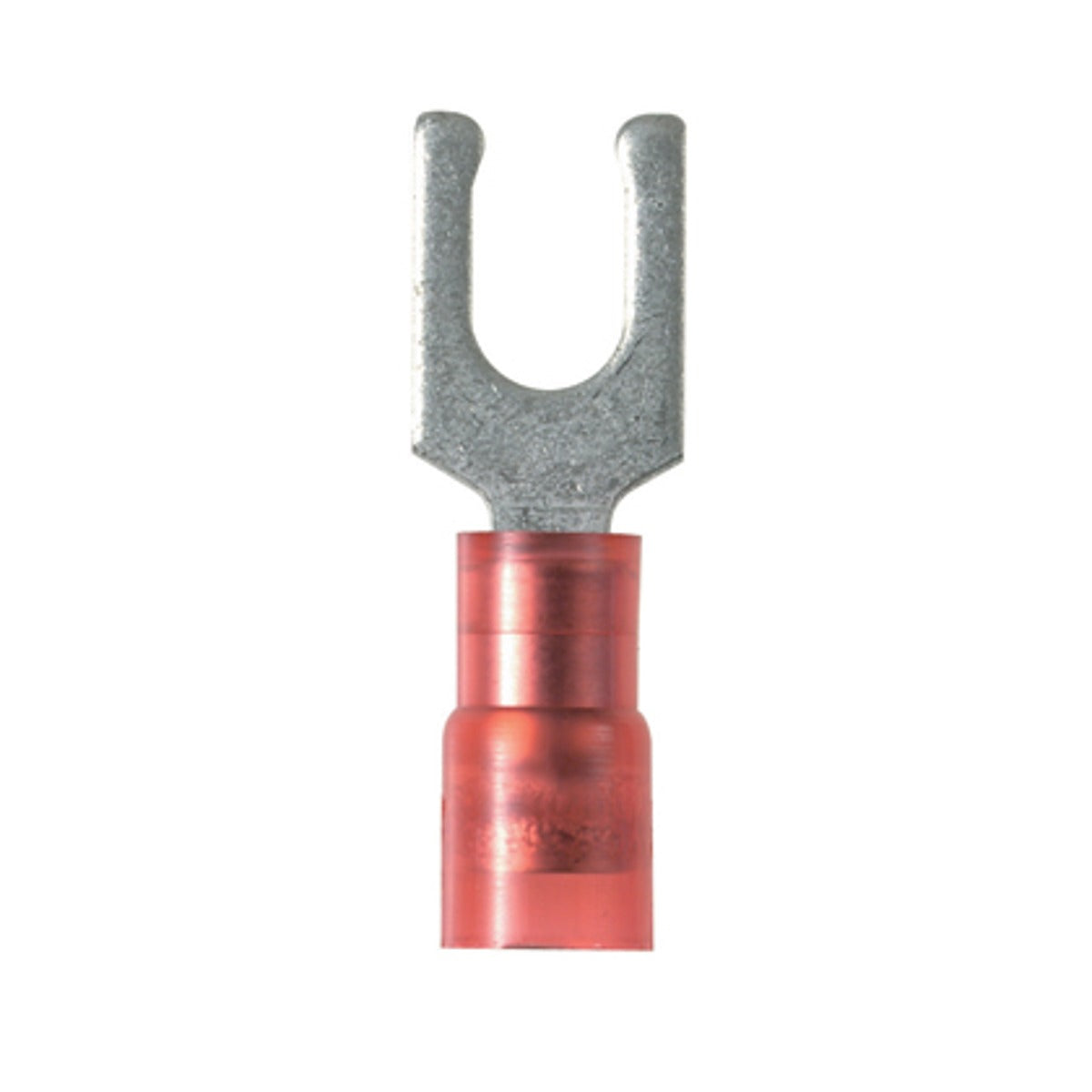

Panduit PN18-10LF-C Locking Fork Terminal Nylon (Pack of 100)

Product Description

Panduit PN18-10LF-C is a locking fork terminal with nylon insulation designed for 22–18 AWG conductors and #10 stud applications. The tin-plated copper contact includes an insulation grip sleeve and internal barrel serrations to ensure reliable wire contact and tensile strength in high-vibration environments. It is UL and CSA listed with a 600 V rating and maximum insulation temperature of 221 degrees Fahrenheit (105 degrees Celsius).

• Nylon-insulated locking fork terminal for 22–18 AWG conductors and #10 stud
• Tin-plated copper contact with internal barrel serrations and insulation grip sleeve for secure crimp termination
• UL Listed 587H E52164 and CSA Certified LR31212; rated to 600 V and 221 degrees Fahrenheit (105 degrees Celsius)

Product Highlights

Locking nylon-insulated fork terminal for 22–18 AWG, #10 stud, tin-plated copper contact, 600 V / 105 degrees Celsius rating, sold in packs of 100.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: PN18-10LF-C
• Country of Origin: Mexico
