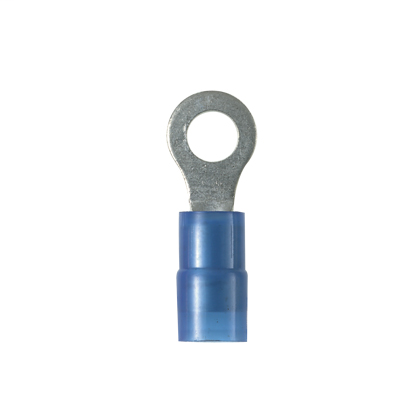

Panduit PN14-6RN-C Ring Terminal #6 Stud

Product Description

The Panduit PN14-6RN-C is a nylon insulated ring terminal designed for secure connections in high vibration environments. It is suitable for 18-14 AWG wire sizes and features a #6 stud. The metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint.

• Ring tongue design assures a secure connection in high vibration applications
• Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
• Internal barrel serrations assure good wire contact and maximum tensile strength

Product Highlights

This ring terminal ensures reliable electrical connections with its durable construction and secure design, making it ideal for various applications.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: PN14-6RN-C
• Country of Origin: Mexico

Technical Specifications

• Category: Connectors, Interconnects
• Terminals: Ring Connectors
• Mounting Type: Free Hanging (In-Line)
• Manufacturer: Panduit Corp
• Termination: Crimp
• Series: Pan-Term
• Wire Gauge: 14-16 AWG
• Packaging: Bulk
• Insulation: Insulated
• Part Status: Active
• Contact Material: Copper
• Stud/Tab Size: 6 Stud
• Contact Finish: Tin
• Thickness: 0.030" (0.76mm)
• Insulation Diameter: 0.080" ~ 0.162" (2.03mm ~ 4.11mm)
• Width - Outer Edges: 0.250" (6.35mm)
• Material - Insulation: Polyamide (PA), Nylon
• Length - Overall: 0.760" (19.30mm)
• Base Product Number: PN14
• Contact Finish Thickness: Tin
• Standard: cULus Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS25036-106)
• Material: Copper
• Use With: CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550)
• Conductor Size: 18-14 AWG
• Flammability Rating: UL94-HB
• Insulation Material: Nylon
• Rated Voltage: 600V
• Stud Size: #6
• Lug Wire Size: 18-14 AWG
• Color Family: Blue
• Length: 0.76 in.
• Width: 0.25 in.
• Max. Temperature Rating: 221 F
• Maximum Operating Temperature: 105 C, 221 F
• Voltage: 600 V, .6 kV
• Barrel Length: .38 in, 9.7 mm
• Wire Insulation Diameter: .16 in, 4.1 mm
• Barrel Type: Insulation Grip Sleeve
• Product Type: Ring Terminal
• Part Aliases: MS25036-106
