Panduit PN14-6RN-C Nylon Insulated Ring Terminal 14 AWG

Product Description

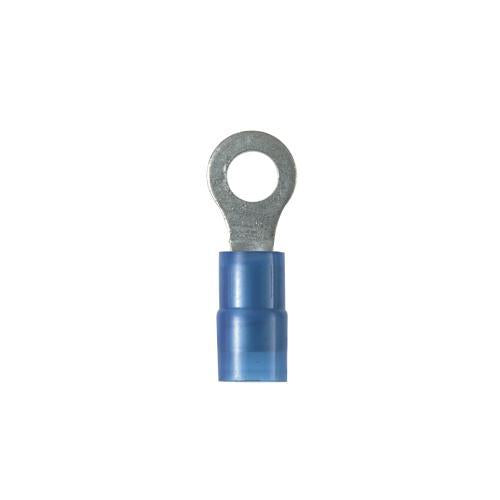

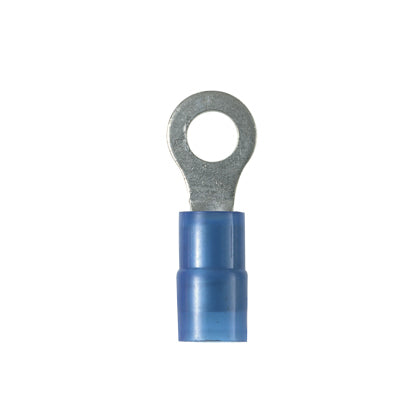

The Panduit PN14-6RN-C is a nylon insulated ring terminal designed for use with 14 AWG conductor wire. It is suitable for applications requiring a secure connection, particularly in high vibration environments. The ring terminal features a narrow tongue design and accommodates a #6 stud size.

• Ring tongue design ensures secure connections
• Internal barrel serrations enhance wire contact
• Rated for 600 volts, suitable for various electrical applications

Product Highlights

This terminal provides reliable grip and strain relief, thanks to its metal insulation grip sleeve that crimps to wire insulation.

Product Information

Standard Information

• Brand: Panduit
• MPN: PN14-6RN-C

Technical Specifications

• Conductor Type: Solid/Stranded
• Conductor Size: 14 AWG
• Stud Size: #6
• Length: 0.76 inches
• Voltage Rating: 600 V
• Temperature Rating: 221 degrees Fahrenheit (105 degrees Celsius)
• Material: Copper
• Insulation: Nylon
• Finish: Tin-Plated
• Color: Blue
• Specifications: 0.162 inches diameter nylon insulation, 0.2 inches clearance, 7/32 inches mounting hole size
