Panduit PN14-6R-M Ring Terminal, 14-16AWG #6

Product Description

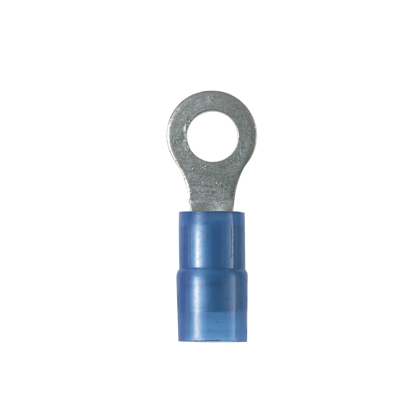

The PANDUIT PN14-6R-M Pan-Term Terminal is a nylon insulated ring terminal. The metal insulation grip sleeve crimps to wire insulation, providing protection and strain relief to the crimp joint for high vibration applications. Internal barrel serrations assure good wire contact and maximum tensile strength.

• Nylon insulated
• Metal insulation grip sleeve
• Strain relief

Product Highlights

This ring terminal connector features a circular design with a #6 stud, suitable for 14-16 AWG wires, and is crimp terminated.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: PN14-6R-M
• Country of Origin: Mexico

Technical Specifications

• Category: Connectors, Interconnects
• Terminals: Ring Connectors
• Mounting Type: Free Hanging (In-Line)
• Manufacturer: Panduit Corp
• Termination: Crimp
• Series: Pan-Term
• Wire Gauge: 14-16 AWG
• Packaging: Bulk
• Insulation: Insulated
• Part Status: Active
• Terminal Type: Circular
• Contact Material: Copper
• Stud/Tab Size: 6 Stud
• Contact Finish: Tin
• Thickness: 0.030" (0.76mm)
• Insulation Diameter: 0.080" ~ 0.162" (2.03mm ~ 4.11mm)
• Width - Outer Edges: 0.310" (7.87mm)
• Material - Insulation: Polyamide (PA), Nylon
• Length - Overall: 0.850" (21.59mm)
• Base Product Number: PN14
• RoHS Status: ROHS3 Compliant
• ECCN: EAR99
• Moisture Sensitivity Level (MSL): Not Applicable
• HTSUS: 8536.90.4000
• REACH Status: REACH Unaffected
• Brand: Panduit
• AWG Size: 18-14AWG
• Material: Copper/Tin-Plated
• Quantity: 1000 Piece
• Stud Size: #6
• Width: 0.31"
• UPC: 07498380017
• UNSPSC: 39121409
• Finish: Tin-Plated
• Standard: cULus Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS25036-107)
• Use With: CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550)
• Conductor Size: 18-14 AWG
• Flammability Rating: UL94-HB
• Insulation Material: Nylon
• Rated Voltage: 600V
• Lug Wire Size: 18-14 AWG
• Color Family: Blue
• Length: 0.85 in.
• Max. Temperature Rating: 221 °F
