Panduit PN14-6FF-C Fork Flange Nylon 18-14 AWG #6 PK100

Product Description

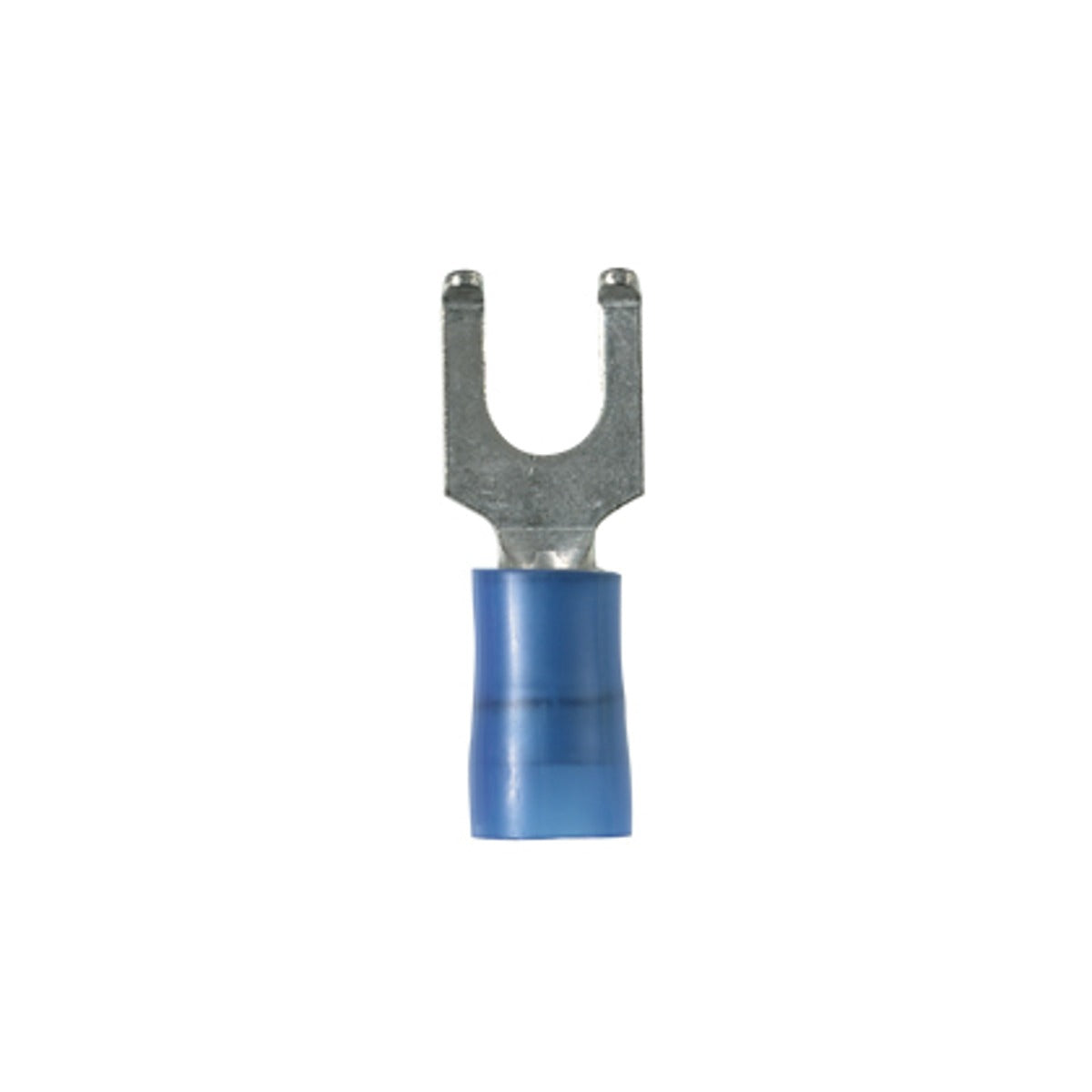

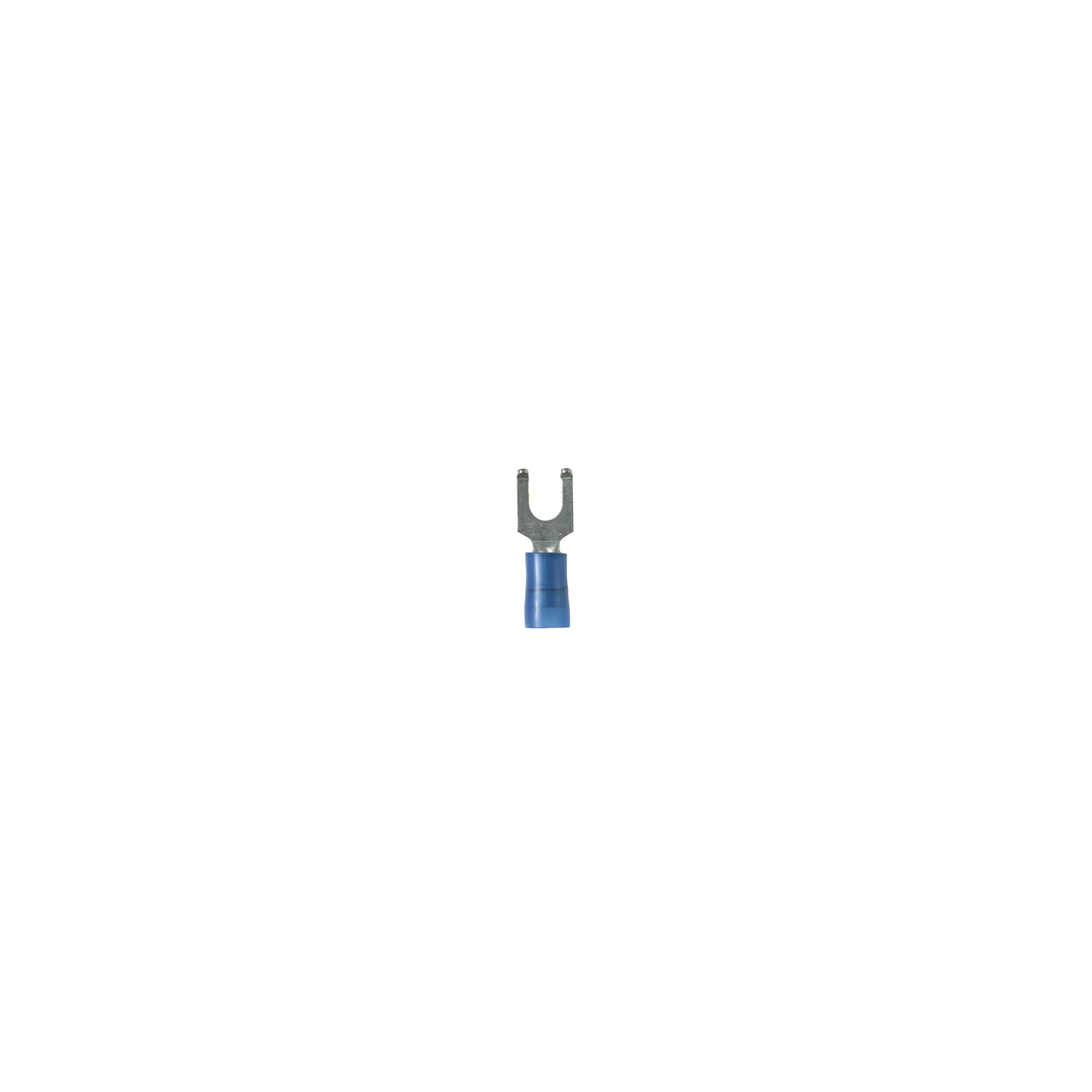

The Panduit PN14-6FF-C is a flanged fork terminal with nylon insulation, sized for 18–14 AWG conductors and a #6 stud. It is constructed of tin-plated copper with a grip-sleeve barrel and funnel-entry design, rated to 600 V per UL 486, with UL 94V-2 flammability and a maximum insulation temperature of 221°F (105°C). Typical applications include panel wiring, terminal connections, and installations exposed to vibration.

• Flanged fork terminal, nylon insulated, fits 18–14 AWG and #6 stud
• Tin-plated copper construction with grip-sleeve barrel and funnel-entry connection
• UL and CSA rated to 600 V per UL 486; UL 94V-2 flammability; max insulation temp 221°F (105°C)

Product Highlights

Nylon-insulated flanged fork terminal for 18–14 AWG on #6 studs; tin-plated copper; grip-sleeve barrel; UL/CSA 600 V rated; max temp 105°C.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: PN14-6FF-C
• Country of Origin: Mexico
