Panduit PN14-6F-C Pan-Term Fork Terminal 18-14 AWG #6 Stud

Product Description

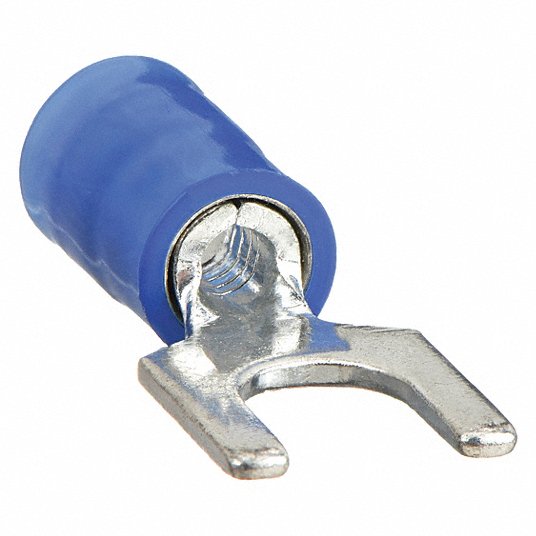

The PANDUIT PN14-6F-C Pan-Term Fork Terminal is designed for stranded copper conductors from 18 to 14 AWG and #6 stud size. The metal insulation grip sleeve crimps to wire insulation, providing protection and strain relief. Internal barrel serrations assure good wire contact and maximum tensile strength.

• Locks in place for secure connection
• Fork design provides for fast and easy installation, without the need to remove fastener
• Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration application

Product Highlights

This nylon insulated fork terminal ensures secure wire contact and maximum tensile strength, ideal for high vibration applications.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: PN14-6F-C
• Country of Origin: MX - Mexico

Technical Specifications

• Manufacturer Part Number: PN14-6F-C
• Conductor Size: 18 to 14 AWG
• Conductor Type: Stranded Copper
• Finish: Tin Plated
• Length: 0.79 in
• Material: Copper
• Specifications: 0.162 in Dia Nylon Insulation, 0.19 in Clearance, 7/32 in Mounting Hole Size, 7/32 in L Wire Strip, Fork Shape Enclosure
• Stud Size: #6
• Temperature Rating: 221 deg F
• Tongue Size: 0.28 in W x 0.032 in THK
• Tongue Type: Standard Fork
• Type: Type PN-F Loose Piece
• Voltage Rating: 600 V
• Insulation: Insulated
• Series: Pan-Term
• Features: Butted Seam
• Contact Finish: Tin
• Terminal Type: Standard
• Contact Material: Copper
• Insulation Diameter: 0.162" (4.11mm)
• Width - Outer Edges: 0.280" (7.11mm)
• Material - Insulation: Polyamide (PA), Nylon
• Length - Overall: 0.790" (20.07mm)
• Tongue Inside Opening: 0.150" (3.81mm)
• Mounting Type: Free Hanging (In-Line)
• Base Product Number: PN14
• Termination: Crimp
• Brand: Pan-Term
• Standard: UL Listed 587H E52164; CSA Certified LR31212
• Use With: CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550)
• Flammability Rating: UL94-HB
• Insulation Material: Nylon
• Rated Voltage: 600V
• Lug Wire Size: 18-14 AWG
• Color Family: Blue
• Width: 0.28 in.
• Max. Temperature Rating: 221 F
• Barrel Length: 0.4 in
• Barrel Style: Insulation Grip
• Compatible with Product Type: Crimp Tool; Crimper; Micro Crimp Tool
• Seam Style: Brazed
• Strip Length: 1/4 in
• Termination Style: Crimp
• Fork Length: 0.4 in
• Fork Thickness: 0.03 in
• Tongue Width: 0.28 in
• AWG Size: 18-14AWG
• Quantity: 100 Piece
