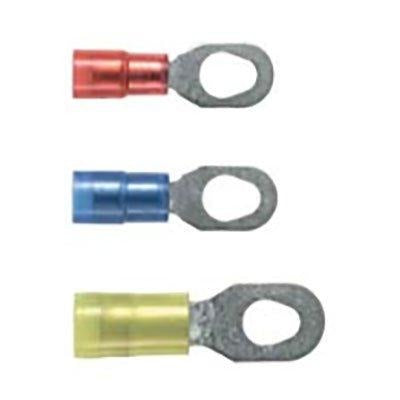

Panduit PN14-610R-C Pan-Term nylon insulated ring terminal (pack of 100)

Product Description

Panduit PN14-610R-C is a nylon-insulated Pan-Term ring terminal designed for multi-stud connections. The terminal accepts 14-16 AWG conductors, fits #6, #8, and #10 studs, and provides a crimp termination with a copper contact plated in tin. Dimensions include an overall length of 0.95 in and a width of 0.31 in; the insulation is rated to 221°F (105°C).

• Nylon-insulated ring terminal for 14-16 AWG wire with crimp termination
• Multi-stud compatible: fits #6, #8, and #10 studs; copper contact with tin finish
• Overall length 0.95 in (24.13 mm), width 0.31 in (7.87 mm); insulation rated to 105°C

Product Highlights

Pan-Term nylon-insulated multi-stud ring terminal for 14-16 AWG, crimp termination, tin-plated copper contact, 0.95 in length, pack quantity 100.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: PN14-610R-C
• Country of Origin: MX
