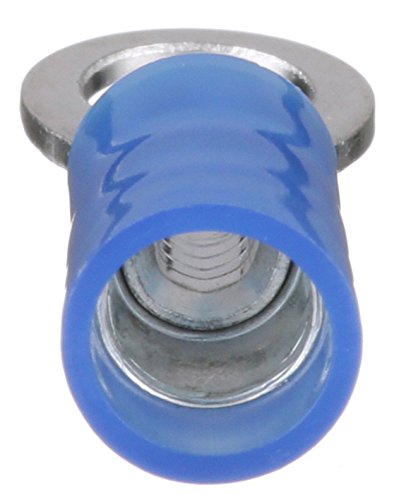

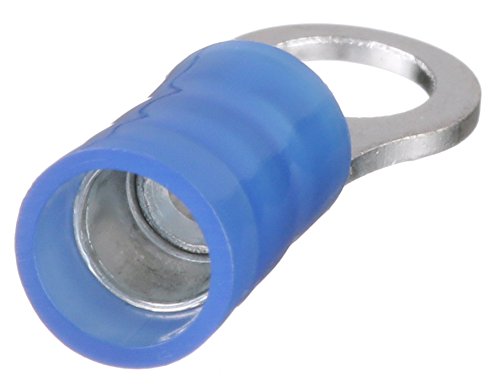

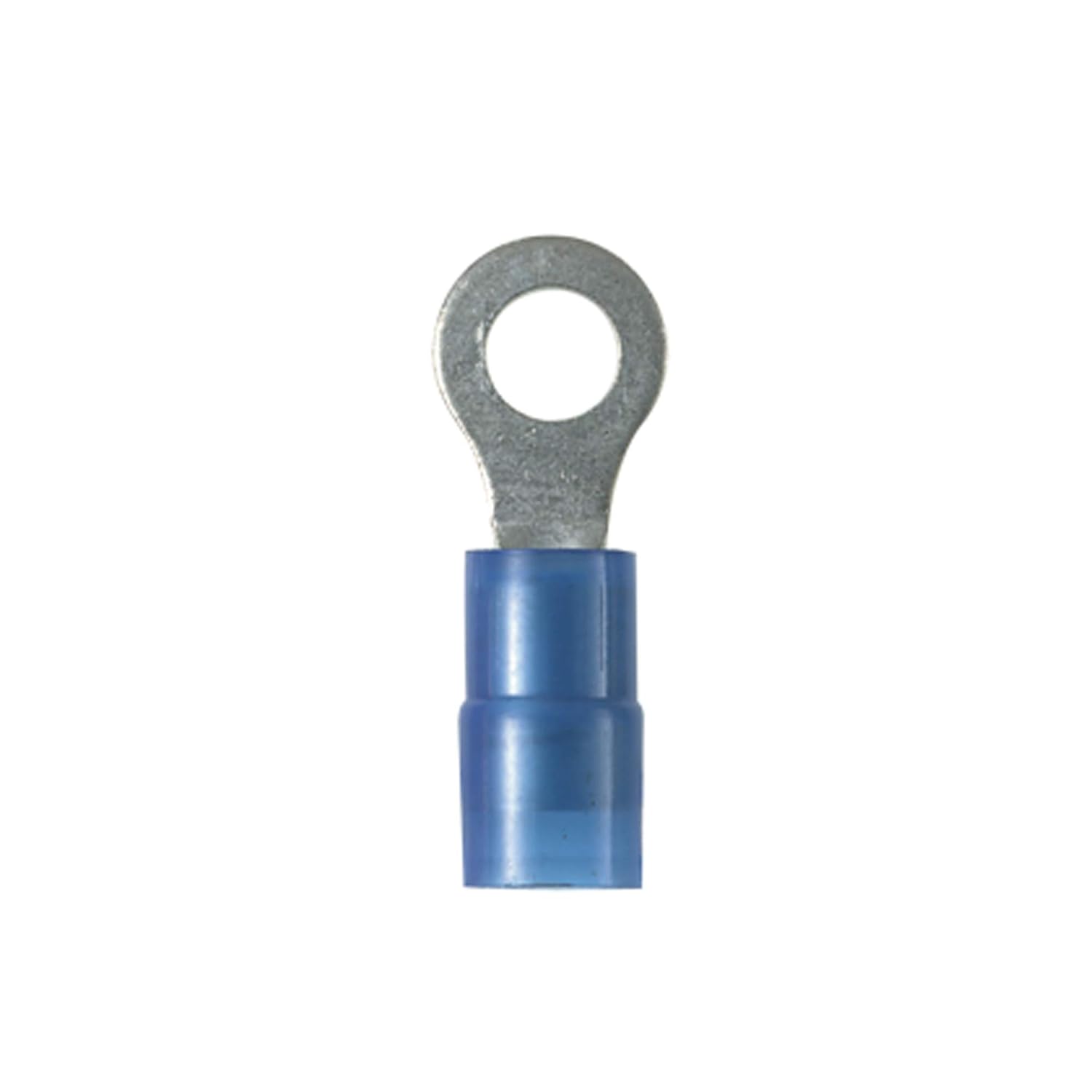

Panduit PN14-4R-M Ring Terminal 18 - 14 AWG #4 Stud Size

Product Description

The Panduit PN14-4R-M ring terminal is designed for 18 - 14 AWG wires and #4 stud size. Constructed with nylon insulation, this ring terminal ensures secure and reliable electrical connections. Ideal for various applications requiring durable and insulated connections. Use cases include control panels, automotive wiring, and general electrical repairs.

• Ring terminal
• 18 - 14 AWG
• #4 Stud Size

Product Highlights

The Panduit PN14-4R-M ring terminal provides secure, insulated connections for 18 - 14 AWG wires with a #4 stud size.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: PN14-4R-M
• Country of Origin: Mexico

Technical Specifications

• Brand: Panduit
• Terminal Type: Ring
• Wire Gauge (AWG): 18-14
• Stud Size: #4
• Category: Connectors, Interconnects
• Mounting Type: Free Hanging (In-Line)
• Manufacturer: Panduit Corp
• Termination: Crimp
• Series: Pan-Term
• Packaging: Bulk
• Insulation: Insulated
• Part Status: Active
• Color: Blue
• Contact Material: Copper
• Stud/Tab Size: 4 Stud
• Contact Finish: Tin
• Thickness: 0.030" (0.76mm)
• Insulation Diameter: 0.080" ~ 0.162" (2.03mm ~ 4.11mm)
• Width - Outer Edges: 0.250" (6.35mm)
• Material - Insulation: Polyamide (PA), Nylon
• Length - Overall: 0.780" (19.81mm)
• Base Product Number: PN14
• Product Category: Terminals
• Type: Ring
• Termination Style: Crimp
• Wire Gauge Max: 14 AWG
• Contact Plating: Tin
• Tradename: Pan-Term
• Insulation Material: Nylon
• Length: 0.78 in
• Product Type: Terminals
• Subcategory: Terminals
