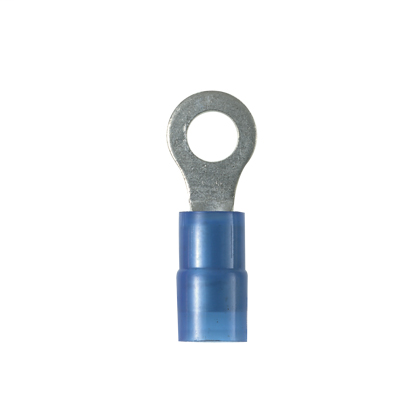

Panduit PN14-14R-C Ring Terminal 18-14 AWG 1/4 inches Stud

Product Description

The PANDUIT PN14-14R-C Pan-Term® Terminal is a nylon insulated ring terminal. The metal insulation grip sleeve crimps to wire insulation, providing protection and strain relief to the crimp joint for high vibration applications. Internal barrel serrations assure good wire contact and maximum tensile strength.

• Ring tongue design assures a secure connection in high vibration applications
• Insulation support helps to prevent wire damage in bending applications
• Internal barrel serrations assure good wire contact and maximum tensile strength

Product Highlights

This ring terminal is designed for 18-14 AWG wires with a 1/4" stud size. It features a tin-plated finish and is RoHS compliant.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: PN14-14R-C
• Country of Origin: MX - Mexico

Technical Specifications

• Manufacturer Part Number: PN14-14R-C
• Conductor Type: Solid/Stranded
• Conductor Size: 18-14 AWG
• Stud Size: 1/4 in
• Length: 1.05 in
• Material: Copper
• Finish: Tin Plated
• Temperature Rating: 221 deg F
• Voltage Rating: 600 V
• Type: Type PN-R
• Standards/Approvals: ARRA Compliant|Buy American Act Compliant|CSA C22.2 File No. 65|CSA File No. LR31212|RoHS Compliant|UL 486A/486B|UL 587H File No. E52164|UL94 V-2 HB Flammability Rated
• Tongue Size: 0.46 in W x 0.03 in THK
• Mounting Type: Free Hanging (In-Line)
• Termination: Crimp
• Series: Pan-Term ®
• Insulation: Insulated
• Terminal Type: Circular
• Thickness: 0.030" (0.76mm)
• Insulation Diameter: 0.080" ~ 0.162" (2.03mm ~ 4.11mm)
• Width - Outer Edges: 0.460" (11.68mm)
• Material - Insulation: Polyamide (PA), Nylon
• Length - Overall: 1.050" (26.67mm)
• Base Product Number: PN14
• ECCN: EAR99
• Brand: Pan-Term ®
• Insulation Material: Nylon
• Flammability Rating: UL94-HB
• Lug Wire Size: 18-14 AWG
• Color Family: Blue
• Width: 0.46 in.
• Max. Temperature Rating: 221 °F
• Maximum Operating Temperature: 105 °C, 221 °F
• Voltage: 600 V, .6 kV
• Barrel Length: 13.5 mm, .53 in
• Wire Insulation Diameter: .16 in, 4.1 mm
• Barrel Type: Insulation Grip Sleeve
• Product Type: Ring Terminal
• Part Aliases: MS25036-154
• TC Connection: Standard
• Tongue Thickness: 0.03 in
• Overall Length: 1.05 in
• Buy American Compliant: Y
• Country of Origin: Mexico
• Color: Blue
• Standard: cULus Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS25036-154)
• Standards and Certifications: Standards Met: cULus Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS25036-154)
