Panduit PN14-10R-C nylon insulated ring terminal #10

Product Description

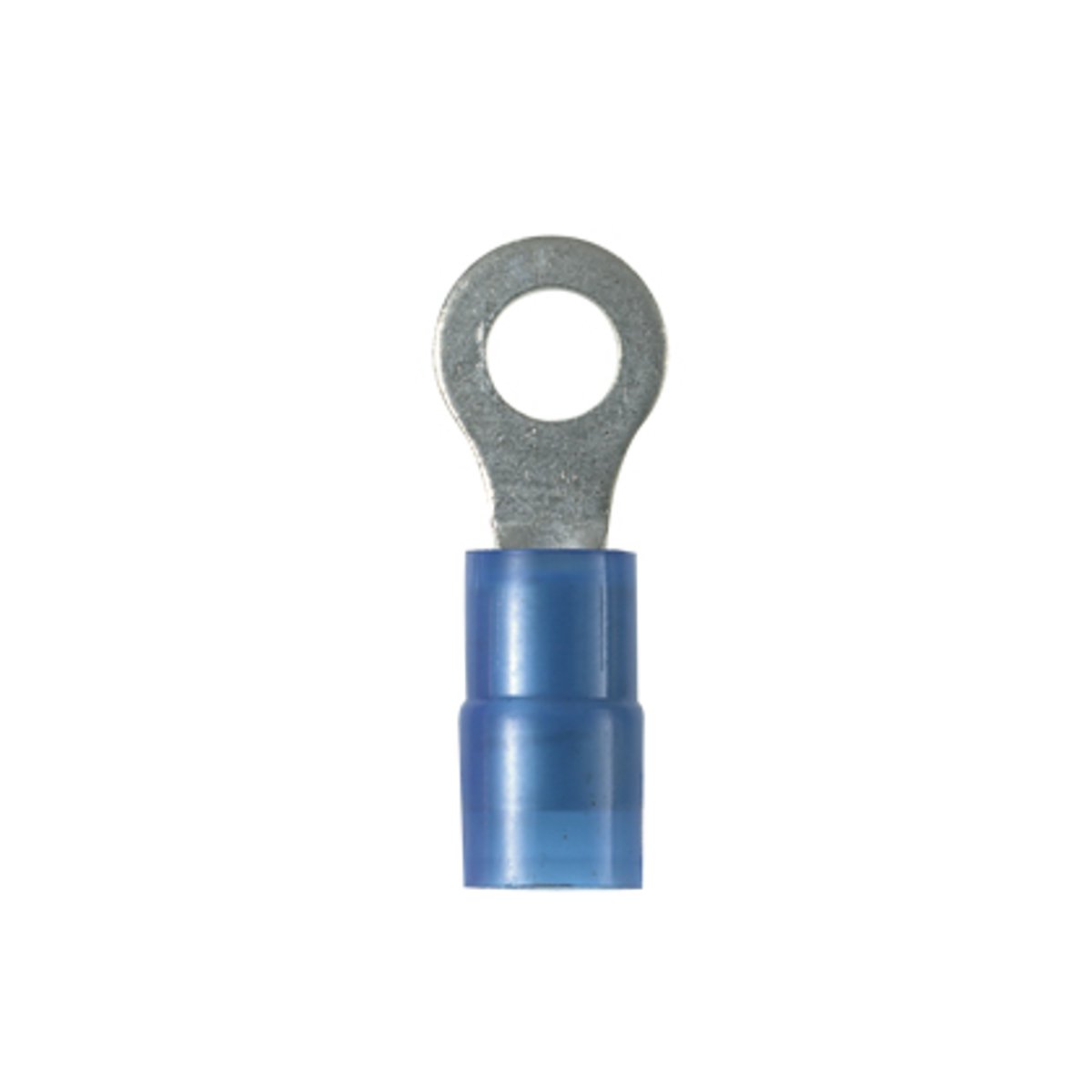

The Panduit PN14-10R-C Pan-Term Terminal is a nylon insulated, ring terminal. The metal insulation grip sleeve crimps to wire insulation, providing protection and strain relief to the crimp joint for high vibration applications. Internal barrel serrations assure good wire contact and maximum tensile strength. It is UL and CSA rated up to 600 V per UL 486.

• Ring tongue design assures a secure connection in high vibration applications
• Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
• Internal barrel serrations assure good wire contact and maximum tensile strength

Product Highlights

The Panduit PN14-10R-C ring terminal ensures secure wire connection with insulation grip and internal serrations, ideal for high vibration environments.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: PN14-10R-C
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: PN14-10R-C
• Manufacturer: Panduit
• Brand: Panduit
• Sub Brand: Pan-Term®
• Country of Origin: Mexico
• Made in USA: No
• Connection: Standard
• Enclosure: Ring shape
• Finish: Tin-Plated
• Insulation: Nylon
• Material: Copper
• Standard: cULus Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS25036-108)
• UPC: 074983800209
• GTIN: 00074983800209
• Item Type: Ring Terminal
• Size: #10
• Temperature Rating: 221 Degrees Fahrenheit (105 Degrees Celsius)
• Voltage Rating: 600
• Wire Size: #14 AWG
• Series: PN
• Product Type: Ring Terminal
• Shrouded: Unshrouded
• Overall Length: 0.85in
• Outer Ring Diameter: 0.31in
• Contact Material: Copper
• Contact Plating: Tin
• Material Category: Metal; Plastic
• Inner Ring Diameter: 0.162in
• Insulation Material: Nylon
• Thickness: 0.03in
• Maximum Operating Temperature: +221°F
• Length: 0.85 in
• Conductor Size: 14 AWG
• Conductor Type: Solid/Stranded
• Tongue Type: Ring
• Tongue Size: 0.31 in W x 0.03 in THK
