Panduit PN12-8HDR-L Ring Terminal #8 Stud

Product Description

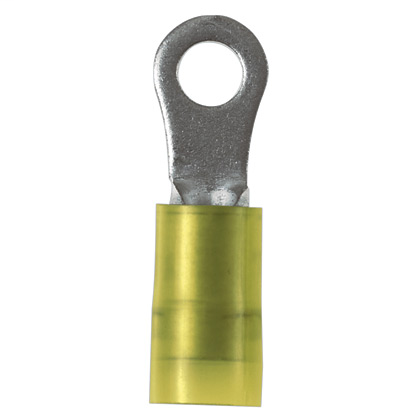

The PANDUIT PN12-8HDR-L is a ring terminal designed for 12-16 AWG wires with a #8 stud size. Constructed from heavy-duty copper and insulated with nylon, this terminal ensures reliable performance. It features a maximum operating temperature of 105°C (221°F) and a voltage rating of 600V, guaranteeing safety and efficiency.

• Heavy Duty
• Serrated Termination
• RoHS compliant

Product Highlights

The PANDUIT PN12-8HDR-L ring terminal is tin-plated for longevity and has an insulated barrel with a grip sleeve design for easy installation.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: PN12-8HDR-L
• Country of Origin: Mexico

Technical Specifications

• Category: Connectors, Interconnects
• Terminals: Ring Connectors
• Termination: Crimp
• Manufacturer: Panduit Corp
• Wire Gauge: 12-16 AWG
• Series: Pan-Term ®
• Insulation: Insulated
• Part Status: Active
• Color: Yellow
• Terminal Type: Circular
• Contact Material: Copper
• Stud/Tab Size: 8 Stud
• Contact Finish: Tin
• Thickness: 0.050" (1.27mm)
• Insulation Diameter: 0.230" (5.84mm)
• Width - Outer Edges: 0.310" (7.87mm)
• Material - Insulation: Polyamide (PA), Nylon
• Length - Overall: 1.060" (26.92mm)
• Base Product Number: PN12
• Mounting Type: Free Hanging (In-Line)
• Maximum Operating Temperature: 105 °C, 221 °F
• Voltage: 600 V, .6 kV
• Material: Copper
• Insulation Material: Nylon
• Barrel Length: 13.5 mm, .53 in
• Wire Insulation Diameter: .23 in, 5.8 mm
• Barrel Type: Insulation Grip Sleeve
• Finish: Tin Plated
• Product Type: Ring Terminal
• SKU: PANPN12-8HDR-L
• ECCN: EAR99
• Country of Origin: MX - Mexico
• UPC: 07498380289
• UNSPSC: 39121409
• Brand: Pan-Term ®
• Standard: UL Listed 587H E52164, CSA Certified LR31212
• Use With: CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH)
• Conductor Size: 16-12 AWG
• Flammability Rating: UL94V-2/UL94-HB
• Rated Voltage: 600V
• Stud Size: #8
• Lug Wire Size: 16-12 AWG
• Color Family: Yellow
• Length: 1.06 in.
• Width: 0.31 in.
• Max. Temperature Rating: 221°F
