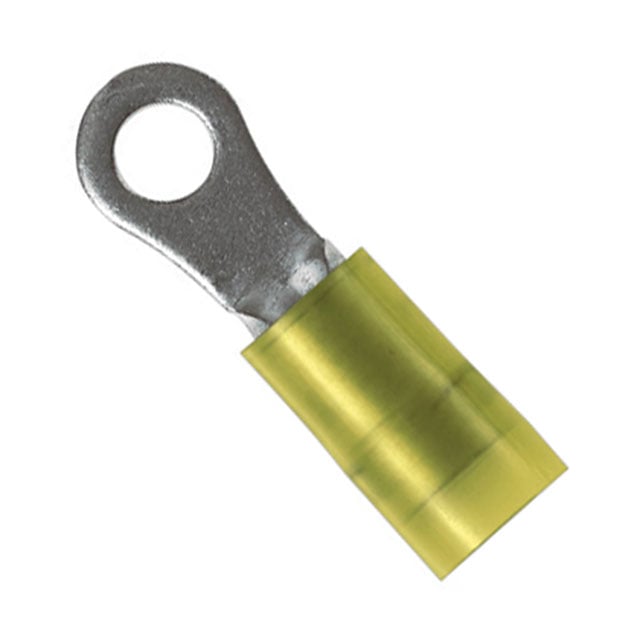

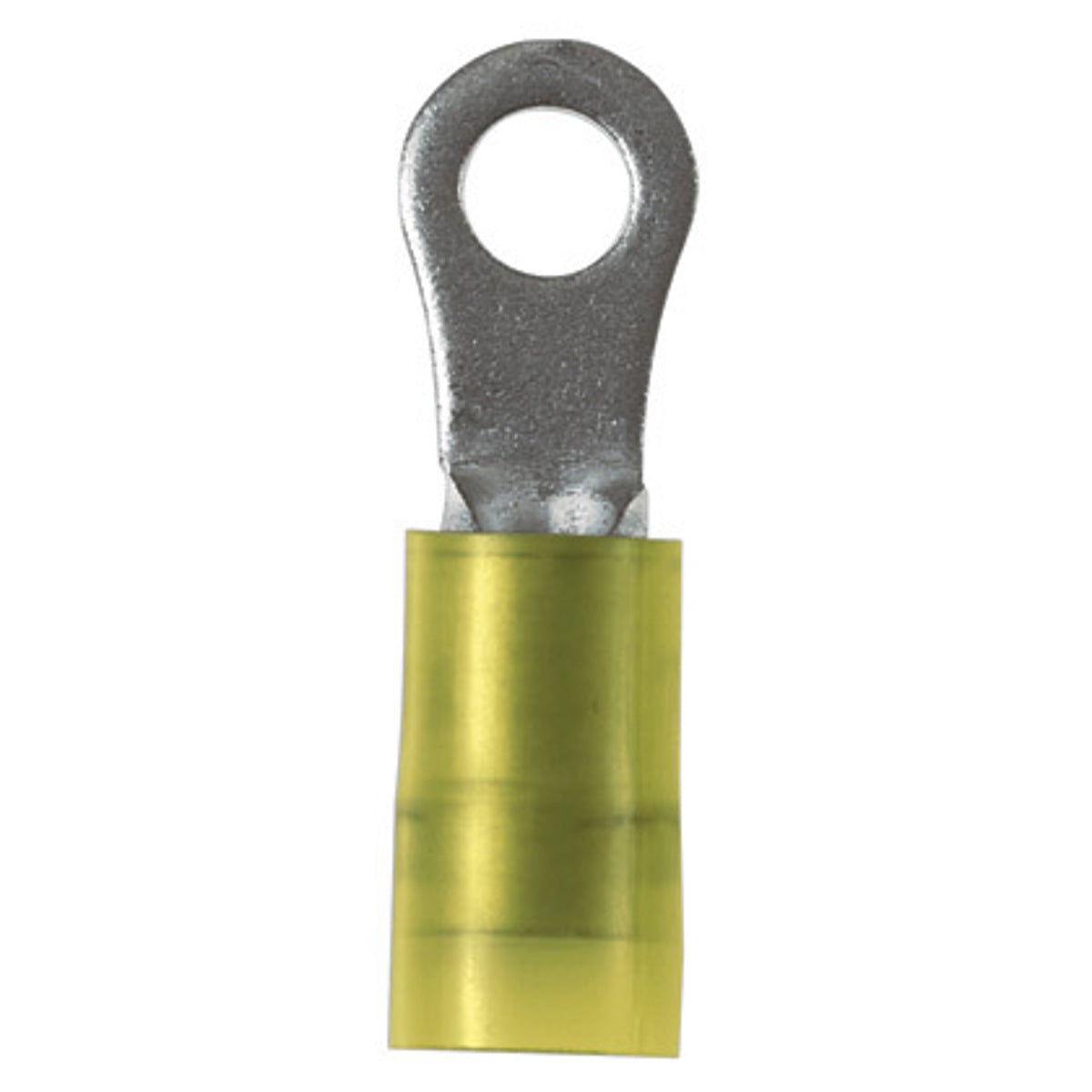

Panduit PN12-56HDR-L Ring Terminal Heavy Duty Nylon Insulated 600 V (5/16 inches Stud, Pack of 50)

Product Description

Panduit PN12-56HDR-L is a heavy-duty nylon insulated ring terminal for 16–12 AWG conductors with a 5/16 in stud. The terminal is made of tin-plated copper, rated 600 V and 105 °C (221 °F), and features an insulation grip sleeve and serrated barrel for crimp termination. It is intended for secure wire-to-stud connections, grounding, and panel terminations requiring corrosion-resistant contact.

• Accepts 16–12 AWG conductors; fits 5/16 in stud; wire strip length 0.28 in (7.1 mm).
• Tin-plated copper contact with nylon (polyamide) insulation; insulation diameter ~0.23 in (5.8 mm).
• Rated 600 V, 105 °C (221 °F); UL Listed 587H E52164 and CSA Certified LR31212; supplied Pack of 50.

Product Highlights

Heavy-duty tin-plated copper ring terminal with nylon insulation; 16–12 AWG, 5/16 in stud, 600 V and 105 °C rating; UL and CSA listed; pack of 50.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: PN12-56HDR-L
• Country of Origin: Mexico

Technical Specifications

• Manufacturer: Panduit
• Manufacturer Part Number: PN12-56HDR-L
• Internal Part Number: 10044703
• Series: Pan-Term
• Product Type: Ring terminal
• Wire Gauge: 16-12 AWG
• Minimum Wire Size (AWG): 16
• Maximum Wire Size (AWG): 12
• Stud Size: 5/16 in (stud hole 0.27 in / 6.9 mm)
• Voltage Rating: 600 V
• Temperature Rating: 105 °C (221 °F)
• Material: Copper, tin-plated
• Finish: Tin plated
• Insulation Material: Nylon (polyamide)
• Insulation Diameter: 0.23 in (5.8 mm)
• Barrel Type: Insulation grip sleeve; serrated barrel
• Barrel Length: 0.62 in (15.7 mm)
• Overall Length: 1.24 in (31.5 mm)
• Tongue Width: 0.52 in (13.21 mm)
• Tongue Thickness: 0.05 in (1.27 mm)
• Wire Strip Length: 0.28 in (7.1 mm)
• Mounting Type: Free Hanging (In-Line)
• Standards / Certifications: UL Listed 587H E52164; CSA Certified LR31212
• RoHS Compliance: Yes (ROHS3 Compliant)
• Country of Origin: Mexico
• Package Quantity: Pack of 50
• UPC: 074983802937
• UNSPSC Code: 39121400
