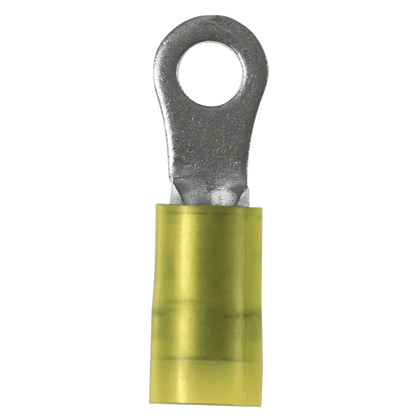

Panduit PN12-10HDR-L Heavy Duty Ring Terminal #10

Product Description

The PANDUIT PN12-10HDR-L is a heavy-duty Pan-Term ring terminal designed for solid or stranded conductors from 16 to 12 AWG and a #10 stud. Constructed from copper with tin plating, it ensures a secure connection in high-vibration environments. The terminal features a brazed seam, insulation grip sleeve, and internal serrations for enhanced performance.

• Ring tongue design assures a secure connection in high vibration applications
• Internal barrel serrations assure good wire contact and maximum tensile strength
• Insulation support helps to prevent wire damage in bending applications

Product Highlights

Heavy duty ring terminal with secure connection and internal serrations for optimal wire contact.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: PN12-10HDR-L
• Country of Origin: Mexico

Technical Specifications

• Conductor Size: 16 to 12 AWG
• Conductor Type: Solid/Stranded
• Finish: Tin Plated
• Length: 1.09 in
• Manufacturer Part Number: PN12-10HDR-L
• Material: Copper
• Series: PN-HDR
• Standards/Approvals: ARRA Compliant|Buy American Act Compliant|CSA C22.2 No. 65 File No. LR31212|RoHS Compliant|UL 486A|UL 486B/587H File No. E52164|UL 94 V-2 HB Flammability Rated
• Stud Size: #10
• Temperature Rating: 221 deg F
• Tongue Size: 0.37 in W x 0.05 in THK
• Tongue Type: Ring
• Type: Heavy Duty
• Voltage Rating: 600 V
• Termination: Crimp
• Insulation: Insulated
• Features: Heavy Duty, Serrated Termination
• Terminal Type: Circular
• Contact Material: Copper
• Contact Finish: Tin
• Thickness: 0.050" (1.27mm)
• Insulation Diameter: 0.120" ~ 0.225" (3.05mm ~ 5.72mm)
• Width - Outer Edges: 0.370" (9.40mm)
• Material - Insulation: Polyamide (PA), Nylon
• Length - Overall: 1.090" (27.69mm)
• Mounting Type: Free Hanging (In-Line)
