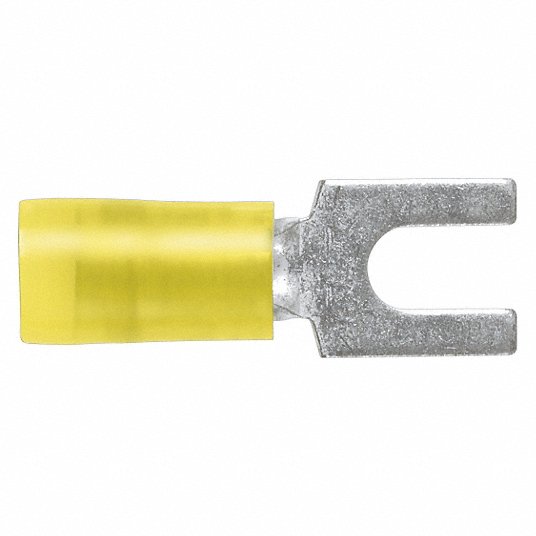

Panduit PN10-6F-L Pan Fork Terminal Nylon Insulated 12-10AWG #6 Stud Size

Product Description

The Panduit PN10-6F-L Pan-Term® fork terminal is designed for copper stranded conductors, accommodating #10 to 12 AWG wire and a #6 stud size. This loose piece terminal features a sleeved barrel and standard fork tongue. It is suitable for applications requiring reliable connections with a voltage rating of 600V and a temperature rating of 221 deg F.

• Fork design provides for fast and easy installation, without the need to remove fastener
• Internal barrel serrations assure good wire contact and maximum tensile strength
• Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications

Product Highlights

The PN10-6F-L terminal ensures secure and efficient connections in various electrical applications. It is constructed from copper with tin plating for corrosion resistance.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: PN10-6F-L
• Country of Origin: Mexico

Technical Specifications

• Manufacturer Part Number: PN10-6F-L
• Conductor Size: 12-10 AWG
• Stud Size: #6
• Material: Copper
• Finish: Tin Plated
• Insulation: Insulated
• Series: Pan-Term ®
• Voltage Rating: 600 V
• Temperature Rating: 221 deg F
• Length: 1 in
• Width: 0.31 in
• Mounting Type: Free Hanging (In-Line)
• Termination: Crimp
• Insulation Material: Nylon
• Contact Material: Copper
• Contact Finish: Tin
• Flammability Rating: UL94-HB
• Tongue Type: Standard Fork
• Insulation Diameter: 0.225 "
• Overall Length: 1 in
• Overall Width: 0.31 in
• Barrel Style: Insulation Grip
• Fork Terminal Shape: Standard Fork
• Maximum Temperature: 221 °F
• Maximum Voltage: 600 V
• Minimum Wire Size: 12 AWG
• Maximum Wire Size: 10 AWG
