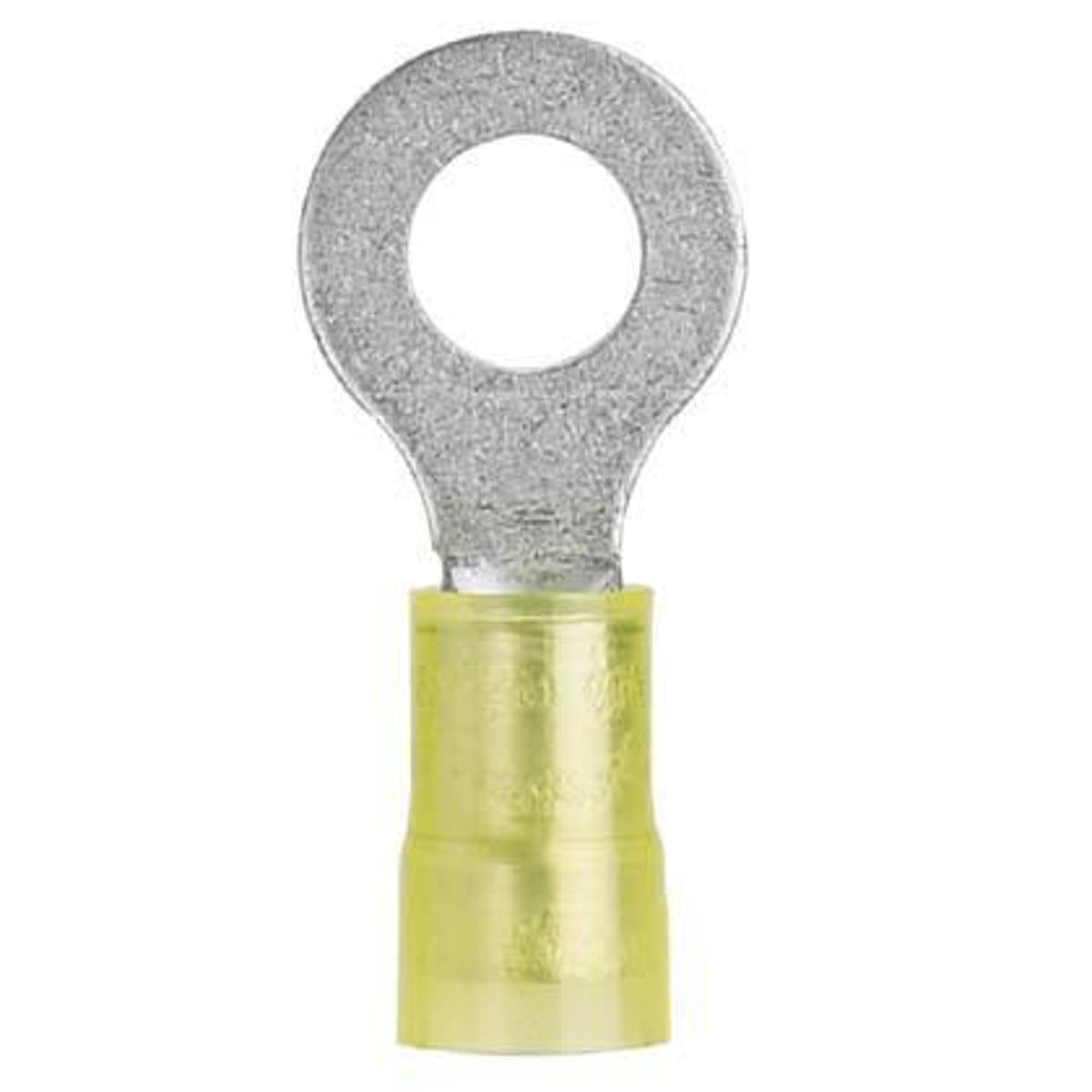

Panduit PN10-38R-L Nylon Insulated Ring Terminal 10 AWG 3/8

Product Description

The Panduit PN10-38R-L is a nylon insulated ring terminal designed for use with 10 AWG wire. It features a secure ring tongue design that is ideal for high vibration applications, ensuring reliable connections. The metal insulation grip sleeve secures the wire insulation and protects the crimp joint from damage in demanding conditions. This terminal is rated for a maximum voltage of six hundred volts.

• Compatible with wire sizes from twelve to ten AWG
• Maximum insulation temperature rating of 221 degrees Fahrenheit
• UL and CSA rated, ensuring compliance with safety standards

Product Highlights

Provides reliable connections for electrical systems, making it suitable for a variety of applications in wiring and cable management.

Product Information

Standard Information

• Brand: Panduit
• MPN: PN10-38R-L

Technical Specifications

• Wire Size: 10 AWG
• Stud Size: 3/8 inches
• Material: Copper
• Insulation: Nylon
• Voltage Rating: 600 V
• Temperature Rating: 221 degrees Fahrenheit (105 degrees Celsius)
• Connection Type: Standard
• Type: Ring Terminal
