Panduit pn10-14r-2k Ring Terminal 10-12 Awg 2000 Pack

Product Description

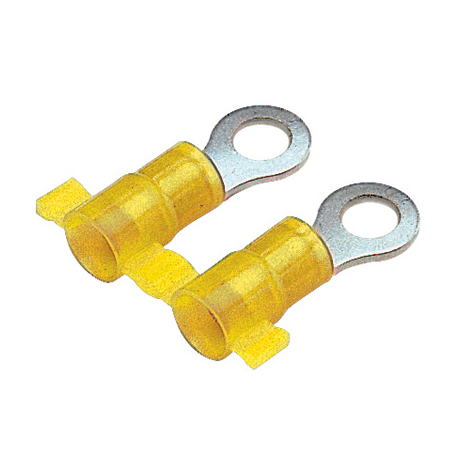

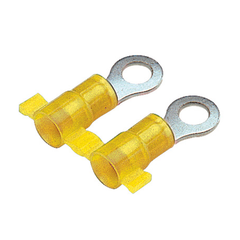

The PANDUIT pn10-14r-2k is a nylon-insulated ring terminal designed for secure, permanent wire terminations in electrical distribution and control wiring applications. The terminal features a tin-plated metal sleeve with a non-funnel entry barrel that accepts 10 and 12 AWG conductors and fits a 1/4 inch stud. Yellow color coding identifies the AWG range at a glance, reducing mis-termination on the job. The overall length is 1.21 inches and the width is 0.52 inches. Rated for a maximum operating temperature of 105 degrees C, this terminal holds up in panel, conduit, and equipment enclosure environments. Sold in packages of 2000.

This ring terminal is used in residential, commercial, and industrial electrical work wherever a reliable, insulated ring lug is needed on a screw or stud connection. Common applications include control panels, load centers, motor controls, and equipment grounding connections. The nylon insulation sleeve provides mechanical protection to the conductor crimp and reduces the risk of accidental contact with adjacent terminals in tight enclosures. The 1/4 inch stud size suits a wide range of terminal blocks and equipment lugs.

Key Features

• Nylon-insulated barrel protects the crimp zone and reduces incidental conductor contact
• Tin-plated finish resists corrosion and promotes low-resistance connections
• Non-funnel entry barrel for positive conductor positioning during crimping
• Yellow color coding identifies 10-12 AWG range for quick field verification
• 1/4 inch stud size fits common terminal blocks, equipment lugs, and grounding hardware
• Rated to 105 degrees C for use in high-ambient enclosures and motor control applications

Compatibility

Designed as an OEM-style ring terminal for use with 10 and 12 AWG conductors on 1/4 inch stud connections in standard electrical termination applications.

Installation Notes

Installation is performed by licensed electricians in accordance with applicable NEC requirements. Power down and lock out the circuit before terminating any conductors. Use a ratcheting crimp tool rated for insulated ring terminals in the appropriate AWG range to achieve a complete, gas-tight crimp. Do not attempt to solder over a mechanical crimp or re-use a terminal that has already been crimped.

Technical Specifications

• Wire Range: 10-12 AWG
• Stud Size: 1/4 inch
• Insulation Type: Nylon
• Barrel Type: Non-Funnel Entry
• Finish: Tin-Plated
• Color Coding: Yellow
• Max Operating Temperature: 105 degrees C
• Overall Length: 1.21 inches
• Width: 0.52 inches
• Package Quantity: 2000
• Package Weight: 14.8 pounds

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: pn10-14r-2k
