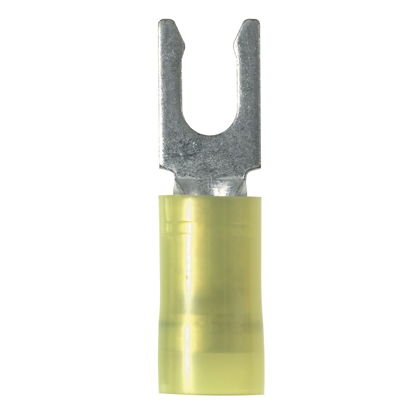

Panduit PN10-14LF-L Fork Terminal, Locking Type, Nylon Insulated, 12 - 10 AWG, 1/4 inches

Product Description

The PANDUIT PN10-14LF-L is a locking fork terminal designed to enhance electrical connections. Made from copper with a tin-plated finish, this terminal is designed for 12-10 AWG wires and features a 1/4 inch stud hole. Its nylon insulation ensures safe and reliable performance, even in high-temperature environments up to 105°C (221°F).

• Locking Fork Terminal
• Nylon insulated
• 12 - 10 AWG

Product Highlights

Ideal for automotive, industrial, and electronics sectors, it's RoHS compliant and features a beveled barrel and locking fork design for secure crimping.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: PN10-14LF-L
• Country of Origin: United States

Technical Specifications

• Category: Connectors, Interconnects
• Terminals: Spade Connectors
• Wire Gauge: 10-12 AWG
• Manufacturer: Panduit
• Insulation: Insulated
• Series: Pan-Term
• Features: Butted Seam, Serrated Termination
• Packaging: Bulk
• Color: Yellow
• Contact Finish: Tin
• Contact Material: Copper
• Stud/Tab Size: 1/4 Stud
• Insulation Diameter: 0.225" (5.72mm)
• Width - Outer Edges: 0.460" (11.68mm)
• Material - Insulation: Polyamide (PA), Nylon
• Length - Overall: 1.170" (29.72mm)
• Tongue Inside Opening: 0.250" (6.35mm)
• Mounting Type: Free Hanging (In-Line)
• Base Product Number: PN10
• Termination: Crimp
• Manufacturer Part Number: Panduit PN10-14LF-L
• Maximum Operating Temperature: 105 0.000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000house
• Stud Size: M6
• Stud Hole Size: 1/4 in, 6.4 mm
• Material: Copper, Nylon
• Insulation Material: Nylon
• Maximum Wire Size: 10 AWG
• Minimum Wire Size: 12 AWG
• Barrel Type: Beveled
• Finish: Tin Plated
• Product: Crimp Spade Terminals
• Fork Type: Locking Fork
• Environmental Initiative: ROHS
• Compliant: Yes
• Brand: Panduit
• MPN: PN10-14LF-L
• Volts AC: 600
• Size: 1/4 in
• Allowable Gauge Range: 12 - 10
