Product Description

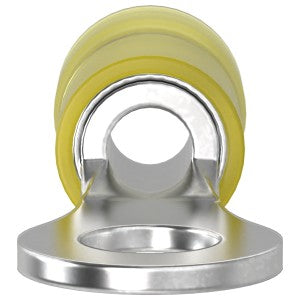

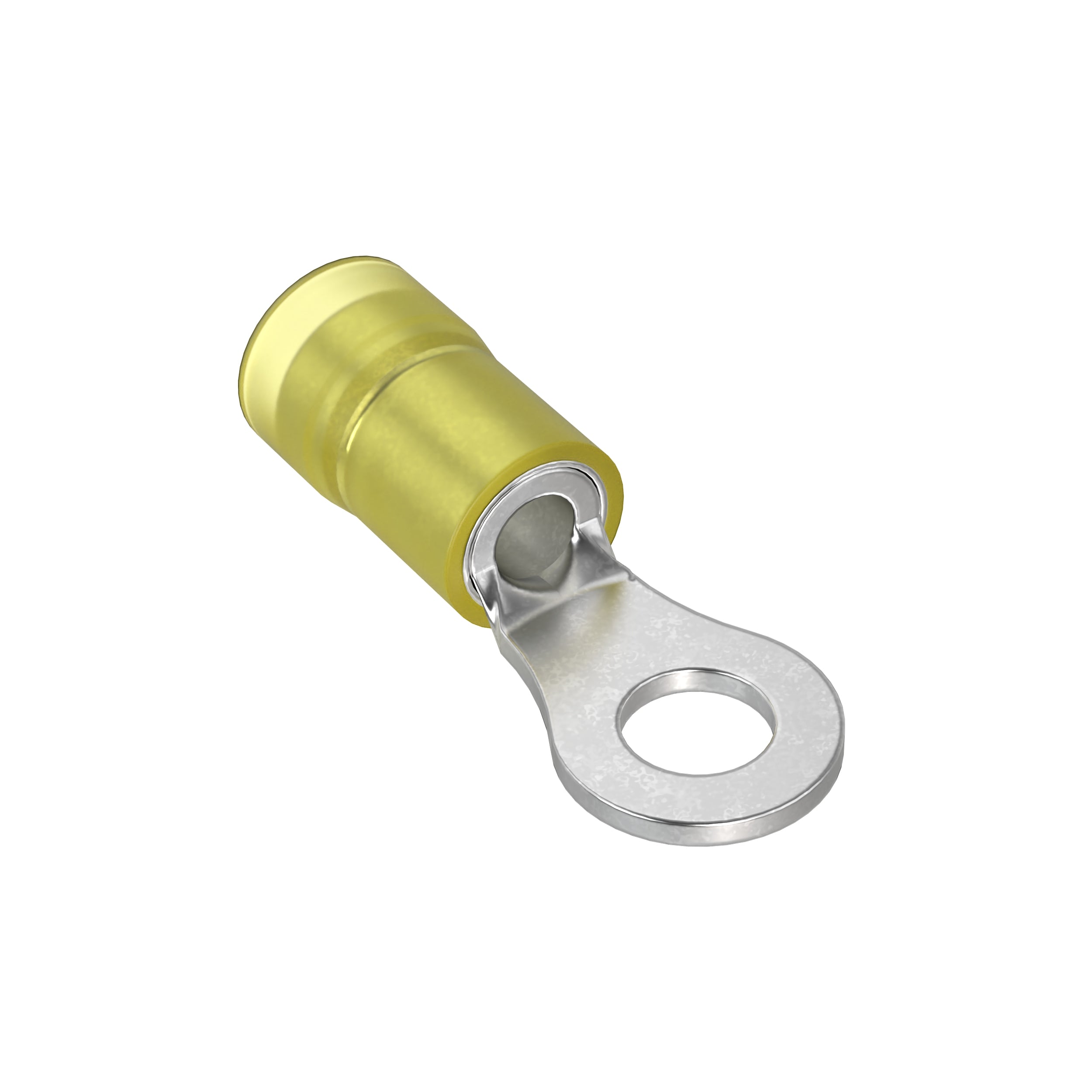

The PANDUIT PN10-10R-L Pan-Term Terminal is a nylon insulated, ring terminal with funnel entry. The metal insulation grip sleeve crimps to wire insulation, providing protection and strain relief to the crimp joint for high vibration applications. Internal barrel serrations assure good wire contact and maximum tensile strength.
- Nylon insulated
- Ring terminal with funnel entry
- Metal insulation grip sleeve crimps to wire insulation
Product Highlights
The PANDUIT PN10-10R-L ring terminal ensures secure connections in high vibration environments. It is made of electrolytic copper, offering optimal crimp forming and high conductivity.
Product Information
Standard Information
-
Brand: PANDUIT
-
Manufacturer Part Number: PN10-10R-L
-
Country of Origin: Mexico
Technical Specifications
-
Type: RING TERMINAL
-
UNSPSC Code: 39121400
-
Brand: Panduit
-
MPN: PN10-10R-L
-
Category: Connectors, Interconnects
-
Terminals: Ring Connectors
-
Mounting Type: Free Hanging (In-Line)
-
Manufacturer: Panduit Corp
-
Termination: Crimp
-
Series: PN-R
-
Wire Gauge: 10-12 AWG
-
Packaging: Bulk
-
Insulation: Insulated
-
Part Status: Active
-
Color: Yellow
-
Terminal Type: Circular
-
Contact Material: Copper
-
Stud/Tab Size: 10 Stud
-
Contact Finish: Tin
-
Thickness: 0.040" (1.02mm)
-
Insulation Diameter: 0.225" (5.72mm)
-
Width - Outer Edges: 0.380" (9.65mm)
-
Material - Insulation: Polyamide (PA), Nylon
-
Length - Overall: 1.060" (26.92mm)
-
Base Product Number: PN10
-
RoHS Status: ROHS3 Compliant
-
ECCN: EAR99
-
Moisture Sensitivity Level (MSL): Not Applicable
-
HTSUS: 8536.90.4000
-
REACH Status: REACH Unaffected
-
Country of Origin: MX - Mexico
-
UPC: 07498380032
-
UNSPSC: 39121409
-
Finish: Tin-Plated
-
Standard: cULus Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS25036-112)
-
Material: Copper
-
Conductor Size: 12-10 AWG
-
Flammability Rating: UL94-HB
-
Insulation Material: Nylon
-
Rated Voltage: 600V
-
Stud Size: #10
-
Lug Wire Size: 12-10 AWG
-
Color Family: Yellow
-
Length: 1.06 in.
-
Width: 0.38 in.
-
Max. Temperature Rating: 221 °F
-
ARRA Compliant: Y
-
Barrel Type: Insulation Grip Sleeve
-
Buy American Compliant: Y
-
Catalog Number: PN10-10R-L
-
Conductor Type: Solid/Stranded
-
Connection: Standard
-
Enclosure: Ring shape
-
EU RoHS Indicator: Y
-
Gross Weight Per Pack: 0.2900 lb
-
Height: 3.65 in
-
Height [Metric]: 9.2710 cm
-
Mounting: 9/32
-
Returnable: Y
-
Size: #10
-
Specifications: 9/32 in L Wire Strip, 0.31 in Clearance, 0.225 in Dia Max Nylon Insulation, Standard Barrel Configuration
-
Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantCSA C22.2 No. 65UL 486A/486BUL94 V-2/HB Flammability Rating
-
Stock Status: NORMALLY STOCKED
-
Sub Brand: Pan-Term?
®
-
Temperature Rating: 221 °F
-
Tongue Size: 0.38 in W x 0.04 in THK
-
Tongue Type: Ring
-
Voltage Rating: 600 V
-
Wire Size: #10 AWG
-
Net Weight: 0.005 lbs
-
Gross Weight: 0.005 lbs
-
Plating Material: Tin
