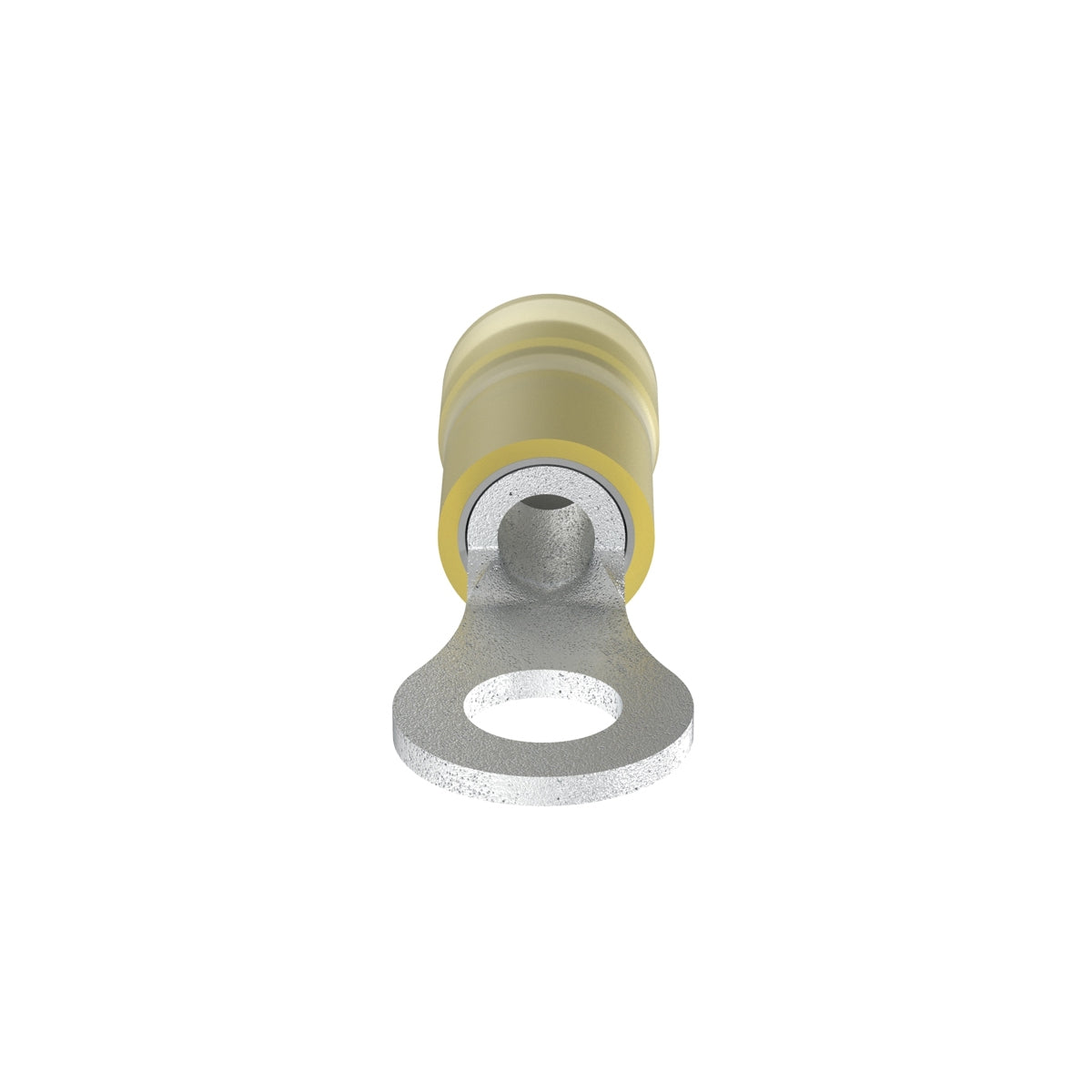

Panduit PN10-10R-D Nylon Insulated Ring Terminal 10-12 AWG #10 Stud PK500

Product Description

The PN10-10R-D ring terminal from Panduit is designed for 10 to 12 AWG wire sizes and features a #10 stud. This nylon insulated terminal provides protection and strain relief in high vibration environments. The grip sleeve crimps effectively to wire insulation ensuring a secure connection. Internal barrel serrations enhance wire contact and improve strength. This product is ideal for electrical applications where durability is critical.

• Ring tongue design for secure connections
• UL and CSA rated for 600 V applications
• Meets industry standards for vibration resistance

Product Highlights

This product is suitable for various electrical tasks requiring robust terminations.

Product Information

Standard Information

• Manufacturer: Panduit
• Part Number: PN10-10R-D

Technical Specifications

• Wire Size: 10 AWG
• Stud Size: #10
• Material: Copper
• Insulation: Nylon
• Finish: Tin-Plated
• Voltage Rating: 600 V
• Temperature Rating: 221 Degrees Fahrenheit (105 Degrees Celsius)
• Standards/Approvals: UL 486A/B, CSA C22.2 No. 65
