Panduit PN10-10F-D Fork Terminal #10

Product Description

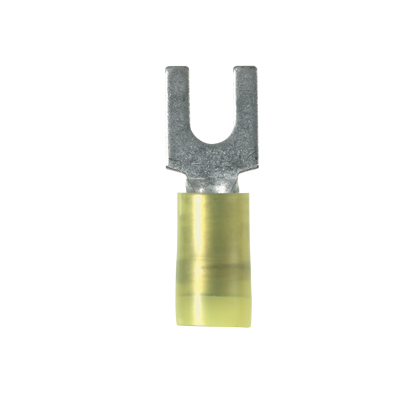

The PANDUIT PN10-10F-D Pan-Term Fork Terminal is designed for copper stranded conductors and #10 studs. Features include a sleeved barrel and standard fork tongue. The fork design allows for quick installation without removing fasteners. Internal barrel serrations ensure good wire contact and maximum tensile strength.

• Fork design for fast and easy installation
• Internal barrel serrations assure good wire contact
• Metal insulation grip sleeve crimps to wire insulation for protection

Product Highlights

This PANDUIT fork terminal ensures reliable connections in electrical applications with its robust design and high-quality materials.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: PN10-10F-D
• Country of Origin: MX - Mexico

Technical Specifications

• Color: Yellow
• Conductor Size: 10 AWG
• Conductor Type: Copper Stranded
• Finish: Tin Plated
• Length: 1.04 in
• Manufacturer Part Number: PN10-10F-D
• Material: Copper
• Series: PN-F
• Stud Size: #10
• Temperature Rating: 221 deg F
• Tongue Size: 0.37 in W x 0.04 in THK
• Tongue Type: Standard Fork
• Type: Loose Piece
• Voltage Rating: 600 V
• Flammability Rating: UL94-HB
• Insulation Material: Nylon
• Lug Wire Size: 12-10 AWG
• Width: 0.37 in.
• Max. Temperature Rating: 221 F
• Barrel Length: 0.52 in
• Barrel Type: Grip Sleeve
• Color Coding: Yellow
• Enclosure: Fork shape
• Max Operating Temperature: 105 degrees C
• Tc Connection: Standard
• Wire Size: 10-12 AWG
• Overall Length: 1.04 in
• Contact Material: Copper
• Contact Plating: Tin
• Insulation Diameter: 0.225 "
• Insulation Type: Nylon
• Special Features: Barrel
