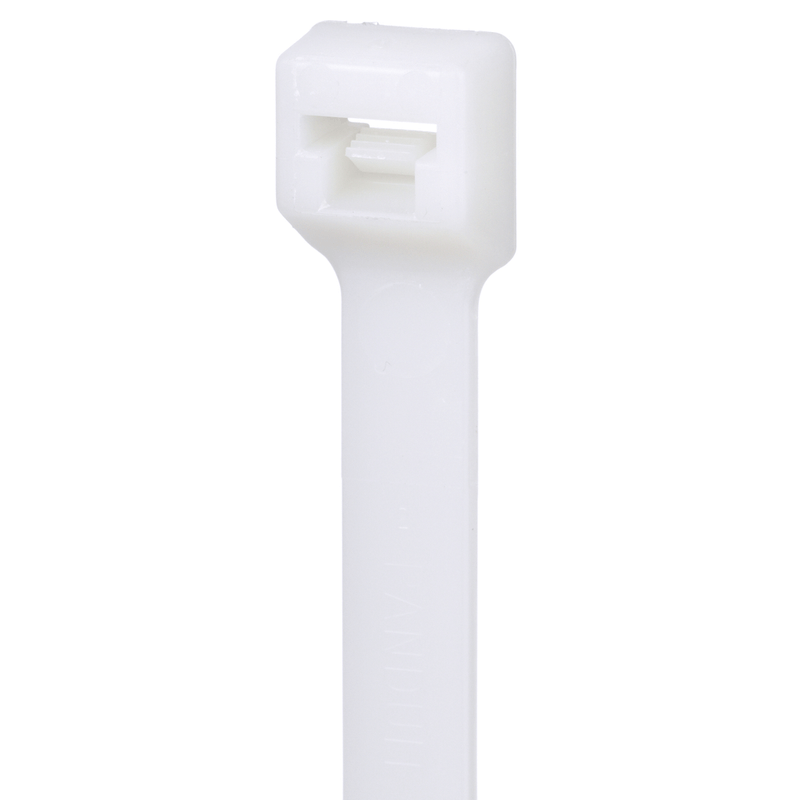

Panduit PLT9LH-C Cable Tie, 30.5 inchesL, 120lb, PK100

Product Description

The Panduit PLT9LH-C locking cable ties are designed for general applications, delivering consistent performance and reliability. These cable ties feature a curved tip for easy pickup from flat surfaces and faster initial threading. These light-heavy cross section cable ties are 30.5" (775mm) in length and made of Nylon 6.6.

• Curved tip for easy pickup
• Faster initial threading
• Consistent performance and reliability

Product Highlights

Panduit PLT9LH-C cable ties offer consistent performance and reliability for general applications with a curved tip for easy handling.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: PLT9LH-C
• Country of Origin: Costa Rica

Technical Specifications

• Category: Cables, Wires - Management
• Cable Ties and Zip Ties: Cable Ties and Zip Ties
• Length - Actual: 2.542' (774.68mm)
• Manufacturer: Panduit Corp
• Mounting Type: Free Hanging (In-Line)
• Series: PAN-TY PLT
• Tensile Strength: 120 lbs (54.43 kg)
• Packaging: Bulk
• Material: Polyamide (PA66), Nylon 6/6
• Part Status: Active
• Color: Natural
• Wire/Cable Tie Type: Standard, Locking
• Length - Approximate: 30.5"
• Bundle Diameter: 9.00" (228.60mm)
• Base Product Number: PLT9LH
• Width: 0.300" (7.62mm)
• RoHS Status: ROHS3 Compliant
• ECCN: EAR99
• Moisture Sensitivity Level (MSL): Not Applicable
• HTSUS: 3926.90.9989
• REACH Status: REACH Unaffected
• UNSPSC: 39121703
• Standard: UL 62275 Compliant (Type 2, 21), UL Recognized (File #E56854), CSA Certified, RoHS Compliant
• Use With: GTH-E, GS4H-E, GS4EH-E, PTH, STH2, ST3EH
• Duty Rating: Heavy Duty
• Color Family: Natural
• Length: 30.5 in.
• Nominal Length: 30.5 in.
• Max. Temperature Rating: 185 F
• Nominal Max. Bundle Dia.: 9 in
• Thickness: 5/64"
• Item: Cable Tie
• Cable Tie Style: Light-Heavy
• Outdoor Use: No
• Locking Style: Locking
• Design: One-Piece Locking Wedge
• UL Type: 2; 21
• Standards: CSA Certified, UL Recognized, UL 62275 Compliant
• Operating Temp. Range: -60 degrees celsius
• Product Line: Pan-Ty
• Additional Information: Cross Section: Light-Heavy, Locking Style: Locking
• Cross Section: Light-Heavy
• Minimum Loop Tensile Strength: 120 Pounds
• Minimum Bundle Diameter: 0.188 Inch
• Plenum Rating: Yes, for use in plenum or air handling spaces per NEC Sec. 300.22 (C) and (D)
• Flammability Rating: V-2
• Type: Cable Ties
• Number in Pack: 100
• MPN: PLT9LH-C
• Item Length: 30.5
• Country of Origin: Costa Rica
