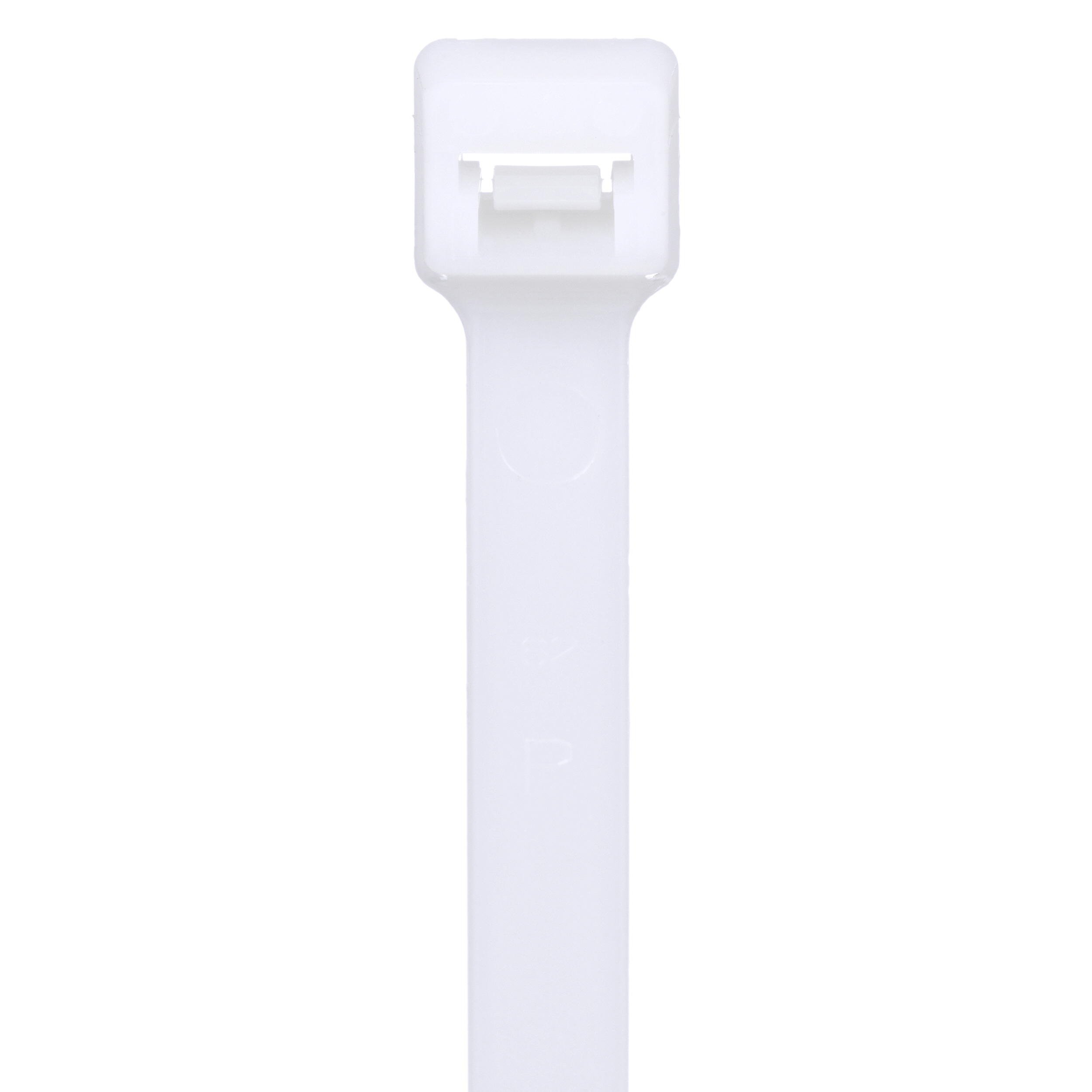

Panduit PLT8LH-L Cable Tie Locking Nat 120lb 2.300 feet

Product Description

The PANDUIT PLT8LH-L cable tie is a standard, locking tie made of polyamide (PA66), Nylon 6/6. It features a tensile strength of 120 lbs (54.43 kg) and is suitable for free hanging (in-line) mounting. These versatile cable ties can be used in countless applications and has a one-piece construction for consistent performance and reliability.

• Standard, Locking
• Natural color
• Tensile Strength: 120 lbs (54.43 kg)

Product Highlights

The PANDUIT cable tie is ideal for use in everyday applications. Nylon 6/6 is a stable material that offers an excellent tensile rating.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: PLT8LH-L
• Country of Origin: Costa Rica

Technical Specifications

• Category: Cables, Wires - Management, Cable Ties and Zip Ties
• Length - Actual: 2.300' (701.04mm)
• Manufacturer: Panduit Corp
• Mounting Type: Free Hanging (In-Line)
• Series: PAN-TY PLT Series
• Tensile Strength: 120 lbs (54.43 kg)
• Material: Polyamide (PA66), Nylon 6/6
• Part Status: Active
• Wire/Cable Tie Type: Standard, Locking
• Length - Approximate: 27.5"
• Bundle Diameter: 8.00" (203.20mm)
• Base Product Number: PLT8LH
• Width: 0.300" (7.62mm)
• ECCN: EAR99
• Standard: UL 62275 Compliant (Type 2, 21), UL Recognized (File #E56854), CSA Certified, RoHS Compliant
• Application: General
• Use With: GTH-E, GS4H-E, GS4EH-E, PTH
• Color Family: Natural
• Length: 27.6 in.
• Nominal Length: 27.6 in.
• Max. Temperature Rating: 185 F
• Maximum Operating Temperature: 185 F, 85 C
• Minimum Operating Temperature: -60 C, -76 F
• Overall Width: 14.2 mm, .56 in
• Overall Length: 30.6 in, 777.2 mm
• Maximum Bundle Diameter: 203.2 in, 8 in
• Environment Application: Plenum
• Minimum Bundle Diameter: .19 in, 4.8 mm
• Part Aliases: MS3367-6-9
• UNSPSC Code: 26120000
• For Use With: GTH-E, GS4H-E, GS4EH-E, PTH
• Special Features: Locking
• Bag Quantity: 50
