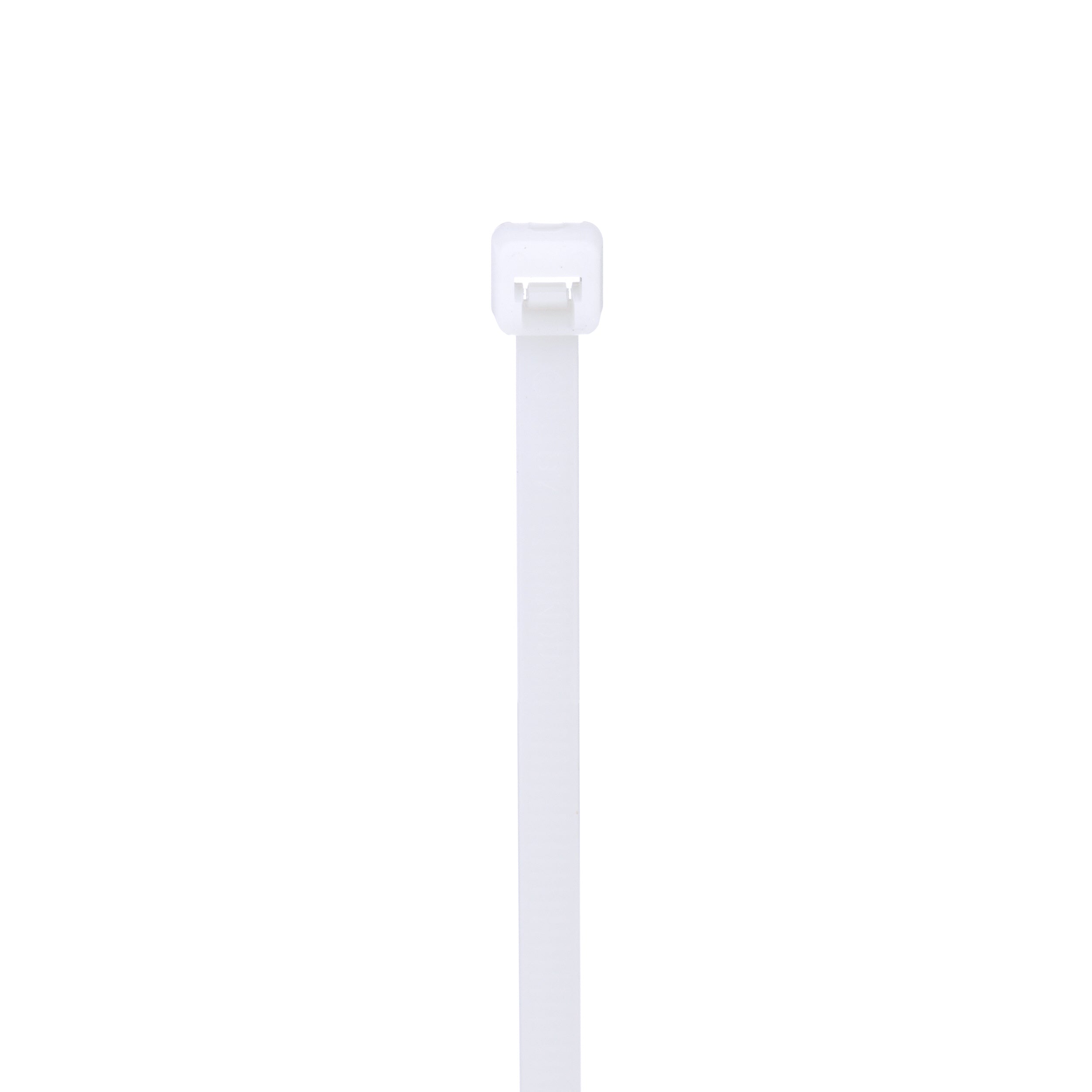

Panduit PLT4I-C Pan-Ty Cable Tie 4 in

Product Description

The PANDUIT PLT4I-C Pan-Ty Cable Tie, with a 4-inch bundle diameter, is designed for general purpose and indoor applications. Constructed from durable Nylon 6.6, it offers a reliable locking mechanism and a tensile strength of 178 N. This cable tie is suitable for use in temperatures ranging from -76 to 185 deg F.

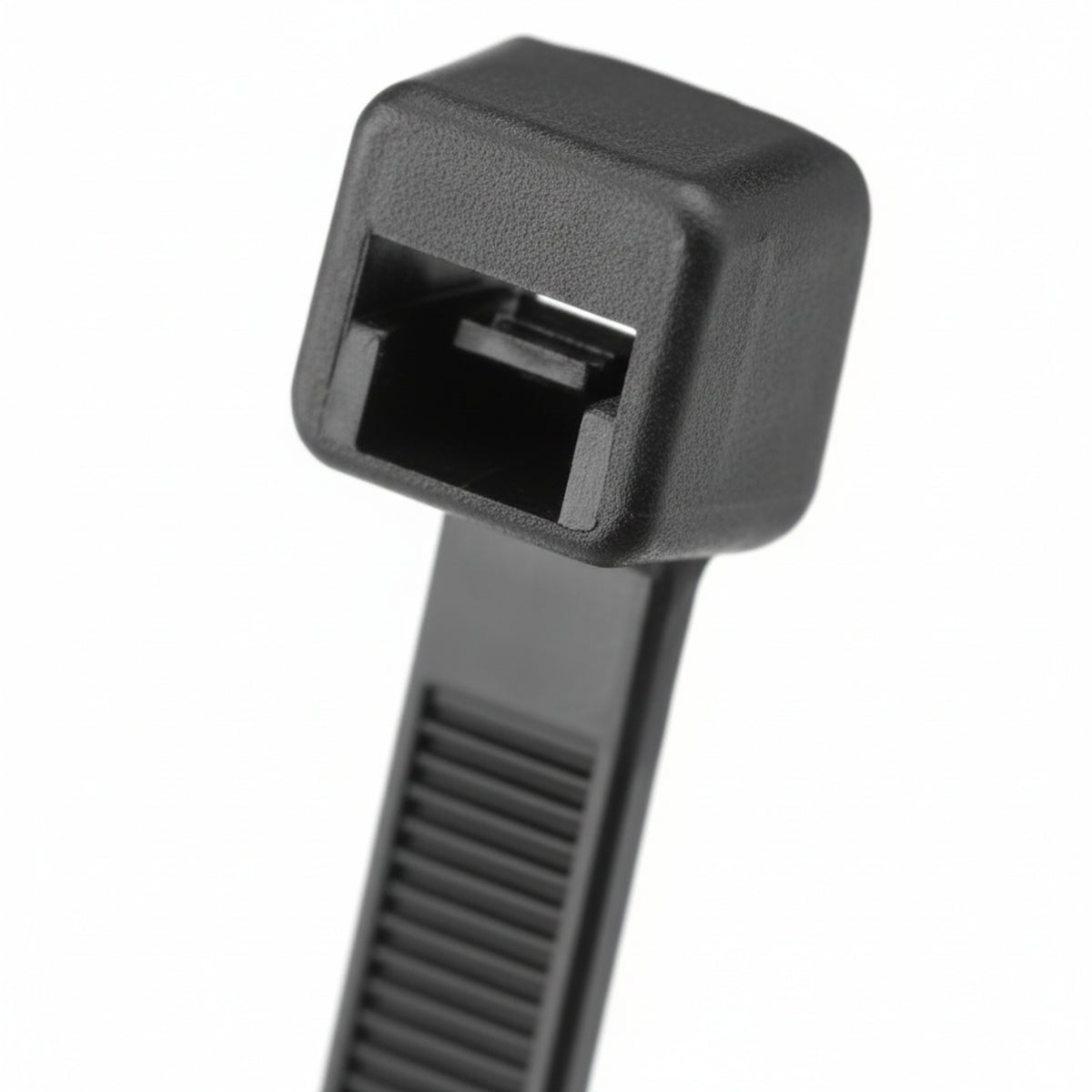

• One-piece locking wedge for consistent performance and reliability
• Low thread force and high loop tensile strength
• Curved tip is easy to pick up from flat surfaces and allows faster initial threading to speed installation

Product Highlights

Durable and reliable, this cable tie is ideal for organizing and securing cables in a variety of indoor applications.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: PLT4I-C
• Country of Origin: SG

Technical Specifications

• Width: 0.145 in
• Length: 14.5 in
• Series: PLT
• Material: Nylon 6.6
• Thickness: 0.052 in
• Lock Mechanism: Locking
• Bundle Diameter: 4 in
• Tensile Strength: 40 lb
• Temperature Rating: -76 to 185 °F
• application: General Purpose and Indoor Applications
• Mounting Type: Free Hanging (In-Line)
• Packaging: Bulk
• Wire/Cable Tie Type: Standard, Locking
• Shelf Life: 48 Months
• Shelf Life Start: Date of Manufacture
• Base Product Number: PLT4I
• Manufacturer: Panduit
• Maximum Operating Temperature: 185 °F, 85 °C
• Minimum Operating Temperature: -76 °F
• Overall Width: .26 in, 6.6 mm
• Overall Length: 14.5 in, 368.3 mm
• Environment Application: Plenum
• Minimum Bundle Diameter: .06 in, 1.5 mm
• Brand: Panduit®
• Standard: CSA Certified, UL Recognized (File #E56854), UL 62275 Compliant (Type 2, 21), RoHS Compliant
