Product Description

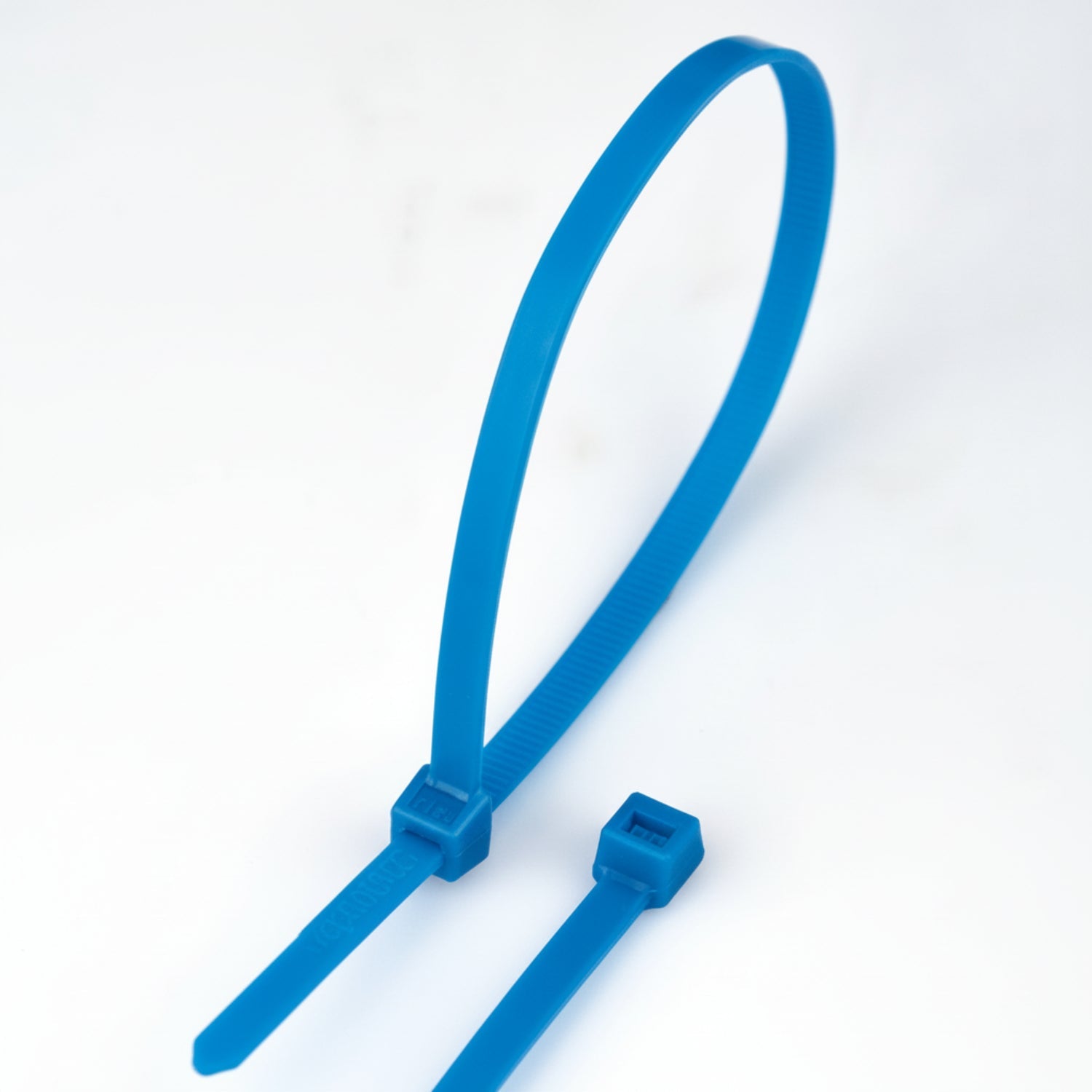

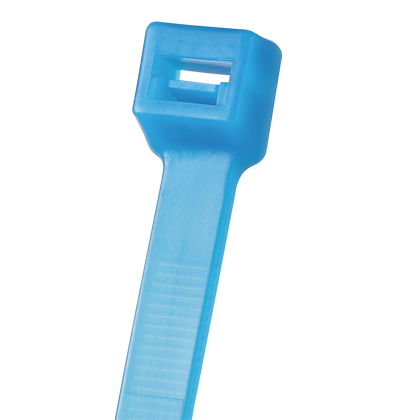

The PANDUIT PLT2S-C76 cable tie is a standard locking tie designed for cable management. Constructed from ethylenterafluorineethylene (ETFE), it is ideal for environments requiring resistance to chemical attack, radiation, and extreme temperatures. This cable tie features a flame-retardant and radiation-resistant design for indoor or outdoor use.
- Flame Retardant
- Radiation Resistant
- One-piece construction for consistent performance and reliability
Product Highlights
Durable Tefzel cable tie with a standard locking design, suitable for harsh environments and versatile cable management.
Product Information
Standard Information
-
Brand: PANDUIT
-
Manufacturer Part Number: PLT2S-C76
-
Country of Origin: Costa Rica
Technical Specifications
-
Category: Cables, Wires - Management, Cable Ties and Zip Ties
-
Width: 0.190" (4.83mm)
-
Manufacturer: Panduit Corp
-
Length - Actual: 0.617' (187.96mm, 7.40")
-
Series: PAN-TY® PLT
-
Mounting Type: Free Hanging (In-Line)
-
Packaging: Bulk
-
Tensile Strength: 50 lbs (22.68 kg)
-
Part Status: Active
-
Features: Flame Retardant, Radiation Resistant
-
Wire/Cable Tie Type: Standard, Locking
-
Material: Ethylenterafluorineethylene (ETFE)
-
Length - Approximate: 7.5"
-
Bundle Diameter: 1.88" (47.75mm)
-
Base Product Number: PLT2S
-
RoHS Status: ROHS3 Compliant
-
ECCN: EAR99
-
Moisture Sensitivity Level (MSL): Not Applicable
-
HTSUS: 3926.90.9989
-
REACH Status: REACH Unaffected
-
Length: 7.4" (188 mm)
-
Max. Bundle Diam: 1.88" (48 mm)
-
Part Number: PLT2S-C76
-
Bag Quantity: 100
-
Maximum Operating Temperature: 170 °C, 338 °F
-
Minimum Operating Temperature: -60 °C, -76 °F
-
Overall Width: .32 in, 8.1 mm
-
Overall Length: 188 mm, 7.4 in
-
Maximum Bundle Diameter: 1.88 in, 47.8 mm
-
Environment Application: indoor
-
Minimum Bundle Diameter: .06 in, 1.5 mm
-
Part Aliases: MS3367-1-15
-
Brand: Panduit
-
Item Length: 7.4 Inches
-
Style: Lock
-
Number of Pieces: 1, 100
-
UNSPSC: 39121703
-
Standard: CSA Certified, UL Recognized (File #E56854), UL 62275 Compliant (Type 1, 11), RoHS Compliant
-
Use With: GTS-E, GS2B-E, GTH-E, GS4H-E, PTS, PTH, PPTS, STS2, STH2
-
Duty Rating: Standard
-
Nominal Length: 7.4 in.
-
Max. Temperature Rating: 338°F
