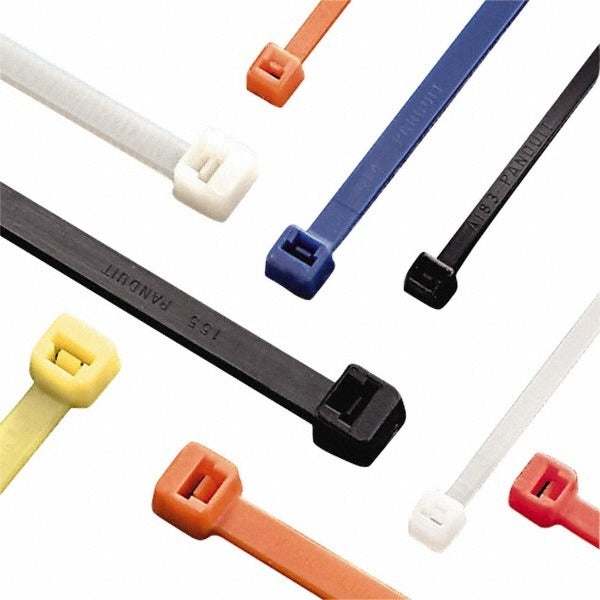

Panduit PLT2S-C2 Standard Cable Tie 7.4in Red Nylon

Product Description

The PANDUIT PLT2S-C2 is a standard-duty nylon cable tie designed for electrical and low-voltage wiring applications. Measuring 7.4 inches in overall length with a width of 0.19 inches, it delivers a rated tensile strength of 50 lb. The red color allows for quick visual identification of bundled wire groups in panels, conduit runs, or equipment enclosures. Rated for service from -76 degrees F to 185 degrees F, this tie holds up in a wide range of ambient conditions. Electricians, panel builders, and installation technicians use this tie for organizing and securing wire bundles to code-compliant standards.

This tie is suited for residential and commercial electrical installations, low-voltage data and control wiring, and panel fabrication. The 1.88-inch maximum bundle diameter accommodates a range of wire harness sizes common in control panels and enclosure wiring. The red color coding is particularly useful in multi-circuit installations where quick identification of a specific wire group is required. Sold individually with a minimum order quantity of 100 units, making it appropriate for project-quantity procurement.

Key Features

• 50 lb tensile strength for reliable bundle retention in standard wiring applications
• Red nylon construction provides color-coded identification for multi-circuit wiring
• 7.4-inch length accommodates bundle diameters up to 1.88 inches
• Operating temperature range of -76 degrees F to 185 degrees F
• CE Certified, CSA Certified, RoHS Compliant, and UL Listed (File E56854)
• Compliant with UL 62275 Type 2S and 21S and military standard MS3367-1-2

Compatibility

Designed as an OEM-style standard cable tie suitable for general electrical, low-voltage, and panel wiring applications requiring color-coded bundle identification.

Installation Notes

Installation is typically performed by licensed electricians or low-voltage technicians. De-energize all circuits before working inside panels or enclosures. Insert the tie tail through the locking head, wrap around the bundle, and cinch to the appropriate tension without overtightening, which can nick insulation. Trim excess tail flush with the locking head after securing. Follow applicable NEC guidelines for conductor bundling and identification.
