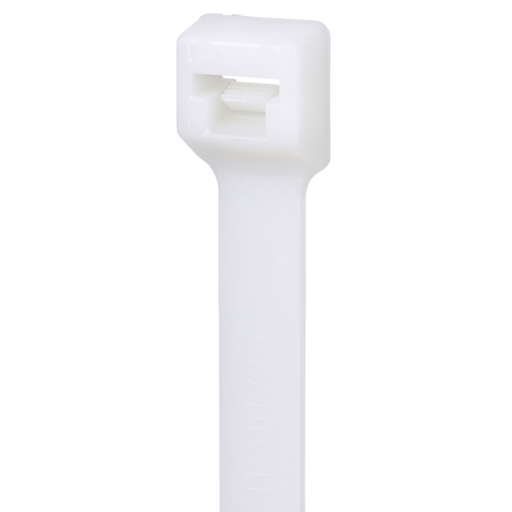

Panduit PLT1M-M69 Cable Tie Locking Nat 18lb 3.90 inches

Product Description

The PANDUIT PLT1M-M69 is a standard locking cable tie with a miniature cross section and a length of 3.9 inches. Constructed from flame-retardant nylon 6.6, it is suitable for indoor use in various environments. It has a maximum bundle diameter of 22.1mm and a tensile strength of 18lb.

• Flame Retardant
• Miniature cross section
• Tensile strength of 18lb

Product Highlights

This RoHS compliant cable tie is an environmentally friendly choice for wire and cable management.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: PLT1M-M69
• Country of Origin: SG

Technical Specifications

• Category: Cables, Wires - Management, Cable Ties and Zip Ties
• Length - Actual: 0.325' (99.06mm, 3.90")
• Manufacturer: Panduit Corp
• Mounting Type: Free Hanging (In-Line)
• Series: PAN-TY PLT
• Tensile Strength: 18 lbs (8.16 kg)
• Packaging: Bulk
• Features: Flame Retardant
• Part Status: Active
• Material: Polyamide (PA66), Nylon 6/6
• Wire/Cable Tie Type: Standard, Locking
• Length - Approximate: 4"
• Shelf Life: 48 Months
• Bundle Diameter: 0.87" (22.10mm)
• Shelf Life Start: Date of Manufacture
• Width: 0.098" (2.50mm)
• Base Product Number: PLT1M
• Product Category: Products Wire & Cable Management Products Cable Ties & Cable Tie Mounts Cable Ties
• Manufacturer Part Number: Panduit PLT1M-M69
• Color: Natural Ivory
• Maximum Operating Temperature: 100 °C, 212 °F
• Minimum Operating Temperature: -60 °C, -76 °F
• Overall Width: 18 in, 4.6 mm
• Overall Length: 3.9 in, 99.1 mm
• Maximum Bundle Diameter: 22.1 mm, .87 in
• Environment Application: indoor
• Minimum Bundle Diameter: .06 in, 1.5 mm
• SKU: PANPLT1M-M69
• Bundle Diameter Max: 1"
• Max Temperature: 100C
• Min Temperature: -60C
• Specification(s): CE, CSA, UL
• Standard Package Quantity: 1000
• Supplier Series: Pan-Ty
• Tensile Strength Max: 18 LBS
