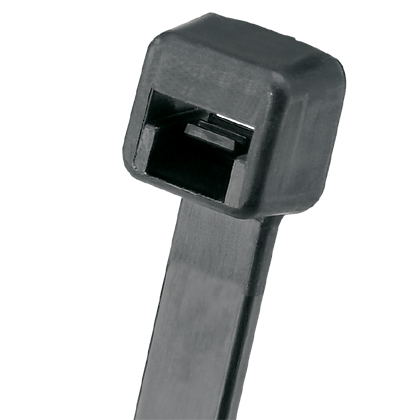

Panduit PLT1M-M30 cable tie 3.9-inch length

Product Description

The Panduit PLT1M-M30 is a cable tie with a miniature cross section and a length of 3.9 inches, ideal for indoor use. Constructed from heat stabilized nylon 6.6, it withstands temperatures from -60°C to 115°C. This cable tie offers a maximum tensile strength of 18 lbs and a maximum bundle diameter of 22.1mm.

• Heat stabilized for high-temperature applications up to 115°C
• One-piece construction ensures consistent performance and reliability
• Made from durable nylon 6.6

Product Highlights

The Panduit PLT1M-M30 cable tie provides a reliable and efficient solution for cable management in various environments.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: PLT1M-M30

Technical Specifications

• Category: Cables, Wires - Management, Cable Ties and Zip Ties
• Length - Actual: 0.325' (99.06mm, 3.90")
• Manufacturer: Panduit Corp
• Mounting Type: Free Hanging (In-Line)
• Series: PAN-TY PLT
• Tensile Strength: 18 lbs (8.16 kg)
• Packaging: Bulk
• Features: Heat Stabilized
• Part Status: Active
• Material: Polyamide (PA66), Nylon 6/6
• Wire/Cable Tie Type: Standard, Locking
• Color: Black
• Length - Approximate: 4"
• Shelf Life: 48 Months
• Bundle Diameter: 0.87" (22.10mm)
• Shelf Life Start: Date of Manufacture
• Width: 0.098" (2.50mm)
• Base Product Number: PLT1M
• Item Length: 3.9 Inches
• Style: Lock
• Material Type: Nylon
• Maximum Operating Temperature: 115 °C, 239 °F
• Minimum Operating Temperature: -60 °C, -76 °F
• Overall Width: 18 in, 4.6 mm
• Overall Length: 3.9 in, 99.1 mm
• Maximum Bundle Diameter: 22.1 mm, .87 in
• Environment Application: indoor
• Minimum Bundle Diameter: .06 in, 1.5 mm
• Part Aliases: MS3367-4-11
• SKU: PANPLT1M-M30
