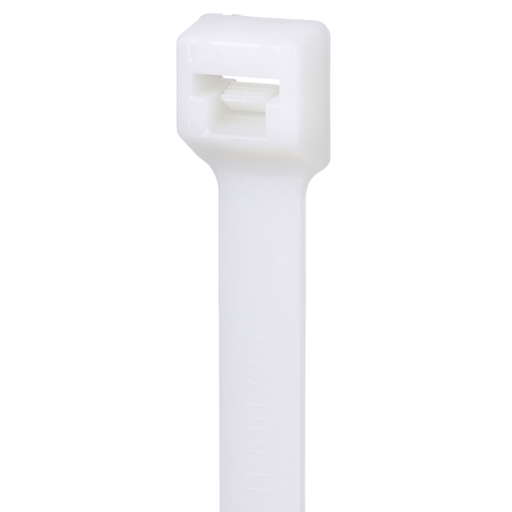

Panduit PLT10LH-L Heavy Duty Tie, 120 lbs, Natural

Product Description

The PANDUIT PLT10LH-L is a heavy-duty tie with a tensile strength of 120 lbs. Constructed from durable Nylon 6.6 material, this tie is suitable for indoor use. Its one-piece construction ensures consistent performance and reliability in various applications. The curved tip allows for faster initial threading, speeding up installation.

• For indoor use
• Made of Nylon 6/6 Material
• One-piece construction for consistent performance and reliability

Product Highlights

Durable nylon construction, easy threading, and reliable performance for heavy-duty applications.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: PLT10LH-L
• Country of Origin: Costa Rica

Technical Specifications

• Color: NATURAL
• Length: 34.30"
• Material: Nylon 6.6
• Manufacturer: Panduit
• Max Temperature: 85C
• Tensile Strength Max: 120 LBS
• Width: 0.30" (7.6 mm)
• Max. Bundle Diam: 10.31" (262 mm)
• Type: Cable Ties
• MPN: PLT10LH-L
• UPC: 074983919765
• Country of Origin: United States
• Mounting Type: Free Hanging (In-Line)
• Series: PAN-TY PLT
• Packaging: Bulk
• Part Status: Active
• Wire/Cable Tie Type: Standard, Locking
• Bundle Diameter: 10.31" (261.87mm)
• Base Product Number: PLT10L
• ECCN: EAR99
• UNSPSC: 39121703
• Standard: UL 62275 Compliant (Type 2, 21), UL Recognized (File #E56854), CSA Certified, RoHS Compliant
• Application: General
• Use With: GTH-E, GS4H-E, GS4EH-E, PTH
• Duty Rating: Heavy Duty
• Nominal Length: 34.2 in.
• Max. Temperature Rating: 185 F
• Basic Material - Cable Tie: Nylon
• Cable Tie Duty: Heavy Duty
• Cable Tie Style: Standard
• Color - Cable Tie: Natural
• Indoor/Outdoor: Indoor
• Length - Cable Tie: 34.3 in
• Locking Style: Plastic Pawl
• Metal Detectable: No
• Standards: 21), CE, CSA, Plenum AH-2, RoHS, UL 62275 (Type 2
• Temperature Range: -76 Degrees to 185 Degrees F
• Tensile Strength - Cable Tie: 120 lb
• Thickness: 0.07 in
• Tool Code: F
• UL Type: 2, 21
