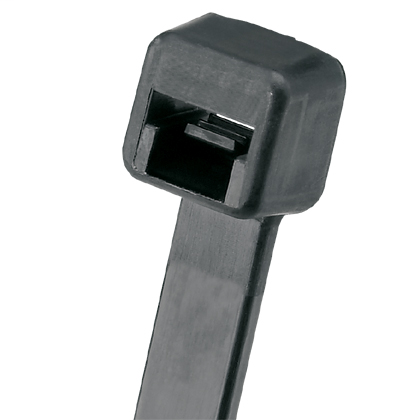

Panduit PLT1.5M-M0 Locking Cable Tie Weather Resistant 5.6 inches

Product Description

The Panduit PLT1.5M-M0 Locking Cable Ties are designed for general applications, delivering consistent performance and reliability. They feature a curved tip for easy pickup from flat surfaces and faster initial threading. These miniature cable ties are 5.6" (142mm) long and made of weather-resistant Nylon 6.6 with high resistance to ultraviolet light.

• Greater resistance to damage caused by ultraviolet light for indoor or outdoor use
• Versatile cable ties can be used in countless applications
• One-piece construction for consistent performance and reliability

Product Highlights

Panduit PLT1.5M-M0 locking cable ties offer reliable performance with weather-resistant nylon construction and a curved tip for easy handling.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: PLT1.5M-M0
• Country of Origin: Unknown

Technical Specifications

• Cable Tie Diameter: 1"
• Type: CABLES TIES AND ACCESSORIES
• Size: 5"
• UNSPSC Code: 39121703
• Length - Actual: 0.467' (142.24mm, 5.60")
• Manufacturer: Panduit Corp
• Mounting Type: Free Hanging (In-Line)
• Series: PAN-TY PLT
• Tensile Strength: 18 lbs (8.16 kg)
• Packaging: Bulk
• Features: Weather Resistant
• Material: Polyamide (PA66), Nylon 6/6
• Wire/Cable Tie Type: Standard, Locking
• Length - Approximate: 5.5"
• Shelf Life: 48 Months
• Bundle Diameter: 1.25" (31.75mm)
• Shelf Life Start: Date of Manufacture
• Width: 0.098" (2.50mm)
• Base Product Number: PLT1.5
• RoHS Status: ROHS3 Compliant
• ECCN: EAR99
• Moisture Sensitivity Level (MSL): Not Applicable
• HTSUS: 3926.90.9989
• REACH Status: REACH Unaffected
• Item Length: 5.6 Inches
• Style: Lock
• Standard: UL Recognized (File #E56854), UL 62275 Compliant (Type 2, 21), RoHS Compliant
• Use With: GTS-E, GS2B-E, PTS, PPTS, STS2
• Duty Rating: Miniature
• Nominal Length: 5.6 in.
• Max. Temperature Rating: 185 °F
• Cable Tie Material: Nylon 6.6 (Polyamide 6.6)
• Cable Tie Length: 142mm
• Cable Tie Width: 2.5mm
• Cable Bundle Diameter Max: 35mm
• Minimum Loop Tensile Strength: 18lb
• Cable Tie Type: Miniature
• Product Range: Pan-Ty Series
• SVHC: No SVHC (04-Feb-2026)
• Product Category: Products, Wire & Cable Management Products, Cable Ties & Cable Tie Mounts, Cable Ties
• Manufacturer Part Number: Panduit PLT1.5M-M0
• Maximum Operating Temperature: 185 °F, 85 °C
• Minimum Operating Temperature: -60 °C, -76 °F
• Overall Width: 18 in, 4.6 mm
• Overall Length: 142.2 mm, 5.6 in
• Maximum Bundle Diameter: 1.25 in, 31.8 mm
• Environment Application: Plenum
• Minimum Bundle Diameter: .06 in, 1.5 mm
