Product Description

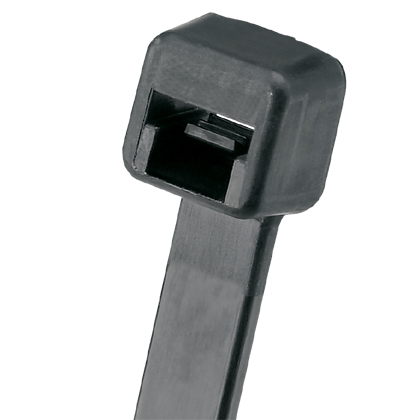

The PANDUIT PLT1.5M-C0 is a cable tie designed for general applications, delivering consistent performance and reliability. It features a curved tip for easy pickup and faster threading. Made of weather-resistant Nylon 6.6 with high resistance to ultraviolet light. Miniature cross section, 5.6" (142mm) length.
- Designed for general applications
- Made of Weather Resistant Nylon 6.6 with high resistance to ultraviolet light
- Curved tip to allow for easy pick up from flat surfaces and faster initial threading
Product Highlights
This cable tie delivers consistent performance and reliability for general applications. Its weather-resistant nylon 6.6 construction ensures durability, while the curved tip allows for easy pickup and faster threading.
Product Information
Standard Information
-
Brand: PANDUIT
-
Manufacturer Part Number: PLT1.5M-C0
-
Country of Origin: Singapore
Technical Specifications
-
Category: Cables, Wires - Management, Cable Ties and Zip Ties
-
Length - Actual: 0.467' (142.24mm, 5.60")
-
Manufacturer: Panduit Corp
-
Mounting Type: Free Hanging (In-Line)
-
Series: PAN-TY
PLT
-
Tensile Strength: 18 lbs (8.16 kg)
-
Packaging: Bulk
-
Features: Weather Resistant
-
Part Status: Active
-
Material: Polyamide (PA66), Nylon 6/6
-
Wire/Cable Tie Type: Standard, Locking
-
Cable Tie Colour: Black
-
Length - Approximate: 5.5"
-
Shelf Life: 48 Months
-
Bundle Diameter: 1.25" (31.75mm)
-
Shelf Life Start: Date of Manufacture
-
Width: 0.098" (2.50mm)
-
Base Product Number: PLT1.5
-
Maximum Operating Temperature: 185 °F, 85 °C
-
Minimum Operating Temperature: -60 °C, -76 °F
-
Overall Width: .18 in, 4.6 mm
-
Overall Length: 142.2 mm, 5.6 in
-
Maximum Bundle Diameter: 1.25 in, 31.8 mm
-
Environment Application: indoor
-
Minimum Bundle Diameter: .06 in, 1.5 mm
-
ECCN: EAR99
-
UNSPSC: 39121703
-
Standard: UL Recognized (File #E56854), UL 62275 Compliant (Type 2, 21), RoHS Compliant
-
Duty Rating: Miniature
-
Color Family: Black
-
Length: 5.6 in.
-
Nominal Length: 5.6 in.
-
Max. Temperature Rating: 185°F
-
Cable Tie Length: 142mm
-
Cable Tie Width: 2.5mm
-
Cable Bundle Diameter Max: 32mm
-
Cable Tie Type: Miniature
-
Product Range: Pan-Ty Series
-
SVHC: No SVHC (04-Feb-2026)
-
EU ECCN: Unknown
-
RoHS Compliant: Yes
-
RoHS Phthalates Compliant: Yes
-
Cable Manager Type: Cable Tie
-
Product Material: Nylon
-
Depth: 5.60 inch
