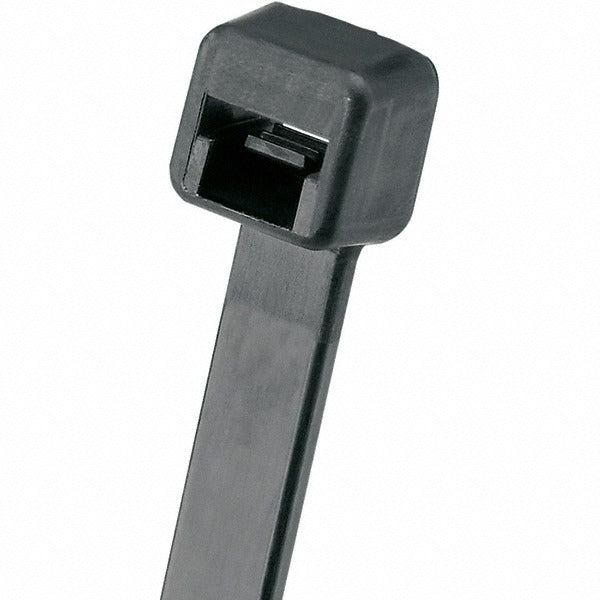

Panduit PLT1.5I-C0 Standard Cable Tie 5.6in 40lb Uv Black

Product Description

The PANDUIT PLT1.5I-C0 is a standard nylon cable tie designed for general-purpose wire and cable bundling in electrical, data, and industrial installations. Measuring 5.6 inches in overall length with a 0.142-inch width and a tensile strength of 40 pounds, this tie handles light to medium bundling loads. The black nylon construction is UV-resistant, making it suitable for both indoor and outdoor applications where sunlight exposure is a concern. Licensed electricians, low-voltage installers, and panel technicians commonly use this tie for raceway dressing, harness management, and general wire organization tasks. It complies with UL 62275 Type 1 and Type 11 standards and carries UL Listed and UL Recognized status under File E56854.

This cable tie is well-suited for residential and light commercial electrical work, telecommunications cabling, and industrial wire management. With a maximum bundle diameter of 1.38 inches, it accommodates a range of conductor bundles and small conduit assemblies. Its operating temperature range of -76 degrees F to 185 degrees F makes it viable in unconditioned spaces, exterior panels, and equipment rooms. Sold in minimum order quantities of 100, this tie is a standard stocking item for service vans, panel shops, and electrical supply staging areas.

Key Features

• 40 lb tensile strength for reliable bundling of light to medium wire harnesses
• UV-resistant black nylon construction for indoor and outdoor use
• 5.6-inch length accommodates bundles up to 1.38 inches in diameter
• Wide operating temperature range: -76 degrees F to 185 degrees F
• UL 62275 Type 1 and Type 11 compliant; UL Listed and Recognized File E56854

Compatibility

Designed as a standard-duty cable tie for general wire bundling applications in electrical, data, and light industrial installations where a 5.6-inch, 40 lb nylon tie meets the required specifications.

Installation Notes

Installation does not require specialized tools, though a cable tie tensioning and cut-off tool is recommended for consistent tension and a flush cut on the tail. Power down or de-energize circuits before dressing conductors in live panels in accordance with NFPA 70 (NEC) lockout/tagout requirements. Do not over-tension ties on fine-stranded or small-gauge conductors, as excessive cinching can damage insulation.
