Panduit PLM1M-M Marker Tie Natural 18lb 3.90 inches

Product Description

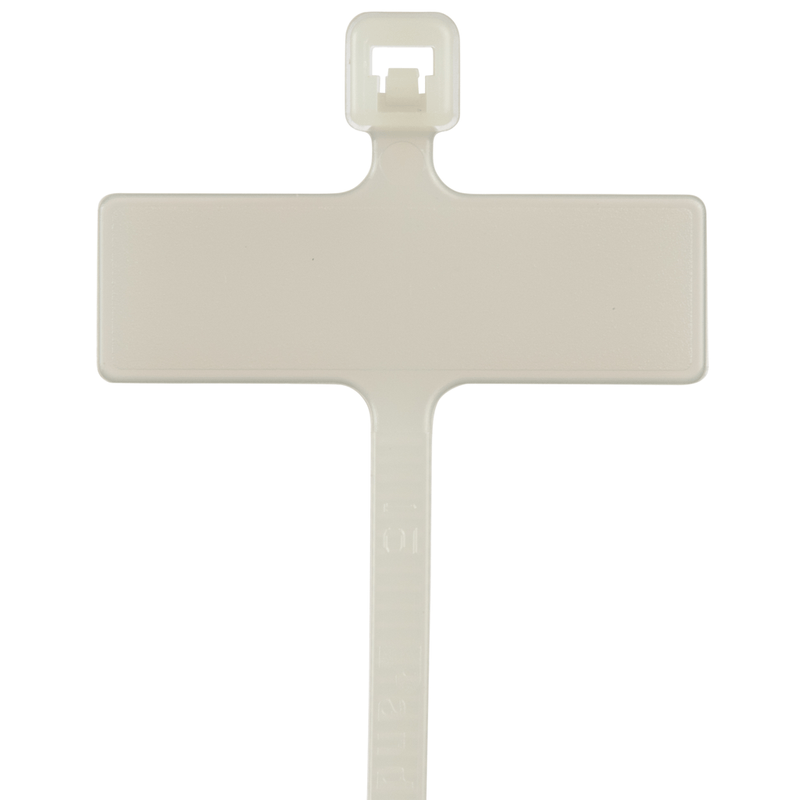

The PANDUIT PLM1M-M marker strap/flag tie is designed for efficient wire management. This miniature cross-section tie features a 3.9-inch length and a .26 x .95-inch marker write-on area, allowing for clear identification. Crafted from durable nylon 6.6, it offers reliable performance in indoor environments. It can accommodate bundles up to .87 inches in diameter, with an 18 lb tensile strength.

• Write-On Area
• Miniature cross section
• 3.9 (99mm) length

Product Highlights

The PANDUIT PLM1M-M marker tie is ideal for cable and wire management, offering durability and clear identification in various applications.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: PLM1M-M
• Country of Origin: Singapore

Technical Specifications

• Category: Cables, Wires - Management, Cable Ties and Zip Ties
• Length - Actual: 0.325' (99.06mm, 3.90")
• Manufacturer: Panduit
• Mounting Type: Free Hanging (In-Line)
• Series: PAN-TY PLM
• Tensile Strength: 18 lbs (8.16 kg)
• Packaging: Bulk
• Features: Write-On Area
• Part Status: Active
• Material: Polyamide (PA66), Nylon 6/6
• Wire/Cable Tie Type: Marker Strap/Flag Tie
• Color: Natural
• Length - Approximate: 4"
• Bundle Diameter: 0.75" (19.05mm)
• Width: 0.098" (2.50mm)
• Base Product Number: PLM1M
• RoHS Status: ROHS3 Compliant
• Maximum Operating Temperature: 185 F, 85 C
• Minimum Operating Temperature: -60 C, -70 F
• Maximum Bundle Diameter: 22.1 mm, .87 in
• Product: Marker & Flag Cable & Wire Ties
• Product Type: Wrap
• Environment Application: indoor
• Minimum Bundle Diameter: .06 in, 1.5 mm
• Marker Write On Area: 159.1 mm , .25 in
• Part Aliases: MS3368-5-9E
• Type: Colored & Identification Cable Ties
• Package Quantity: 1000 Per Pkg.
• Maximum Diameter: 0.75"
• Minimum Diameter: 0.18"
• Operating Temperature Range: 185 to -60 F
• Thickness: 0.035"
• Tie Length: <4 Inches
• Typical Use: For Indoor Use Only
• UNSPSC: 39121703
• Standard: CE Compliant,RoHS Compliant
• Application: General
• Use With: Bundles
• Color Family: Natural
• Nominal Length: 3.9 in.
• Max. Temperature Rating: 185 F
• Cross Section: Miniature
• Style: Locking
• Minimum Loop Tensile Strength: 18 Pounds
• Plenum Rating: No
• Flammability Rating: V-2
