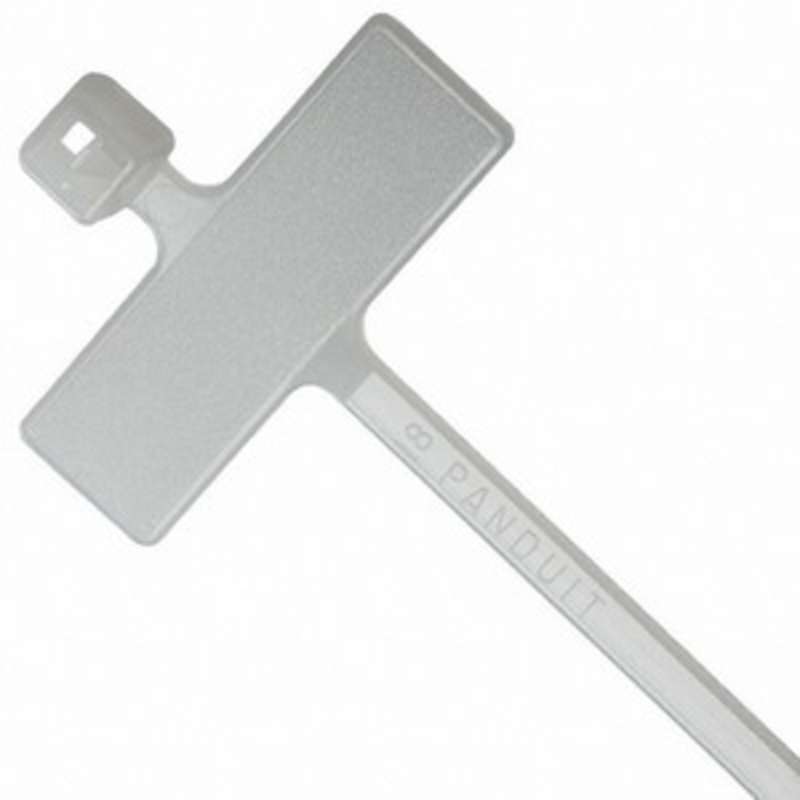

Panduit PLM1M-C Wrap Style Marker Tie 3.9 inches

Product Description

The PANDUIT PLM1M-C Wrap Style Marker Ties are used to fasten and identify bundles. They can be marked with Panduit marker pens or custom imprinted with text, symbols or trademarks using Panduit Custom Hot Stamping Service. The curved tip allows faster initial threading. Miniature cross section, 3.9" (99mm) length.

• For indoor use
• Used to fasten and identify bundles at the same time
• One-piece construction for consistent performance and reliability

Product Highlights

The PANDUIT PLM1M-C marker ties are ideal for cable management and identification, featuring a write-on area and easy installation.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: PLM1M-C
• Country of Origin: SG - Singapore

Technical Specifications

• UNSPSC Code: 39121703
• Length - Actual: 0.325' (99.06mm, 3.90")
• Manufacturer: Panduit Corp
• Mounting Type: Free Hanging (In-Line)
• Series: PAN-TY PLM
• Tensile Strength: 18 lbs (8.16 kg)
• Packaging: Bulk
• Features: Write-On Area
• Part Status: Active
• Material: Polyamide (PA66), Nylon 6/6
• Wire/Cable Tie Type: Marker Strap/Flag Tie
• Length - Approximate: 4"
• Shelf Life: 48 Months
• Bundle Diameter: 0.75" (19.05mm)
• Shelf Life Start: Date of Manufacture
• Width: 0.098" (2.50mm)
• Base Product Number: PLM1M
• ECCN: EAR99
• Application: General
• Use With: Bundles
• Length: 3.9 in.
• Nominal Length: 3.9 in.
• Max. Temperature Rating: 185°F
• Standard: CE Compliant,RoHS Compliant
• Product Type: Cable Tie
• Type: Non-Releasable
• Material Category: Plastic
• Maximum Bundle Diameter: 0.75in
• Minimum Operating Temperature: -76°F
• Locking Style: Plastic Pawl
• Standards Met: CE Compliant, CSA Certified, UL Listed File No 62275 Compliant, RoHS Compliant
