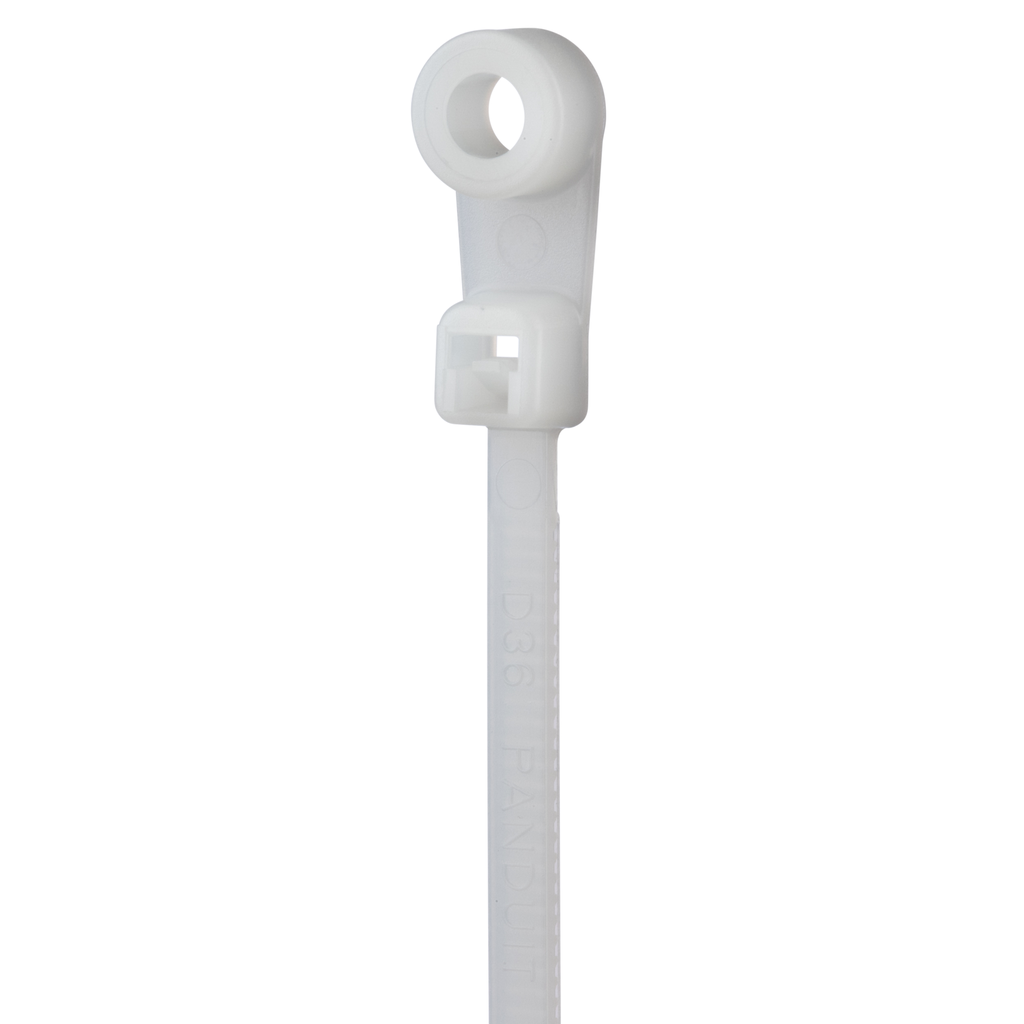

Panduit PLC3S-S10-M Clamp Tie 12.0 inchesL (305mm), #10 (M5) Screw

Product Description

The PANDUIT PLC3S-S10-M locking clamp cable ties secure cable bundles to surfaces like control panels, walls, or ceilings. The cable tie design allows bundling before or after screwing the clamp in place, and it is designed for use with a #10 (M5) screw. It features a standard cross section and a 12.0" (305mm) length.

• Pan-Ty locking clamp tie
• Standard cross section
• #10 (M5) screw

Product Highlights

This locking clamp tie is perfect for organizing wires in industrial or residential settings.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: PLC3S-S10-M
• Country of Origin: Singapore

Technical Specifications

• Manufacturer: Panduit
• Manufacturer Part Number: Panduit PLC3S-S10-M
• Maximum Operating Temperature: 85 00b0C
• Minimum Operating Temperature: -60 00b0C
• Overall Width: 4.8 mm
• Overall Length: 304.8 mm
• Material: Nylon 6.6
• Screw Size: #10 M5
• Maximum Bundle Diameter: 76 mm
• Product: Clamp & Locking Cable & Wire Ties
• Product Type: Locking Clamp Ties
• Environment Application: General
• Minimum Bundle Diameter: 1.5 mm
• Mounting Hole Width: 9.5 mm
• Environmental Initiative: ROHS
• Compliant: Yes
• ECCN: EAR99
• Country of Origin: SG - Singapore
• UPC: 07498355583
• UNSPSC: 39121703
• Standard: CE Compliant; CSA Certified; UL 62275 Compliant (Type 2, 21); UL Listed; UL Recognized
• Application: Used to secure a cable bundle to another surface such a control panel, wall or ceiling.
• Use With: GTS-E, GS2B-E, GTH-E, GS4H-E
• Tensile Strength: 50 lbs.
• Color Family: Natural
• Length: 12 in.
• Nominal Length: 12 in.
• Max. Temperature Rating: 185 00b0F
• Cable Tie Type: Self-Locking
• Cable Tie Mounting: Mounting Hole
• Clip Material: Nylon
• Hole Size: #10 Stud
• Width: 0.19 in.
• Applications: Used to secure a cable bundle to another surface such a control panel, wall or ceiling.
• Body Thickness: 0.052 in
• Body Width: 0.19 in
• Bundle Diameter: 3 In.
• Max Operating Temperature: 185 degrees F
• Min Operating Temperature: -60 degrees C
• Type: Locking Clamp Tie
• Brand: Panduit Corp.
• Sub Brand: Pan-Ty
• Color: Natural
• Environment: Indoor
• Product UPC: 07498355583
• Buy American Compliant: Y
• Country Of Origin: Malaysia
• Standards and Certifications: Standards Met: CE Compliant; CSA Certified; UL 62275 Compliant (Type 2, 21); UL Listed; UL Recognized
