Panduit PLC1M-S4-C Cbl Tie Locking Nat 18lb 4.30 inches

Product Description

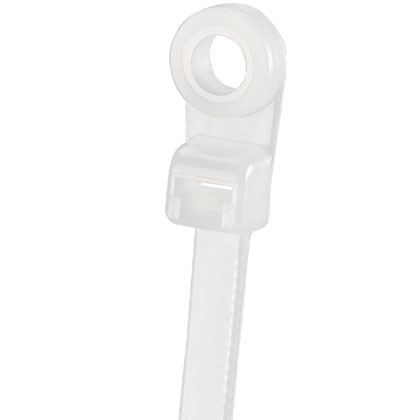

The PANDUIT PLC1M-S4-C locking cable tie is used to secure cable bundles to surfaces like control panels or walls. It features a design that allows bundling before or after screwing the clamp in place, and is suitable for use with a #4 (M2.5) screw. This miniature cross section tie is made of durable nylon 6.6.

• Used to secure cable bundles to another surface
• Design allows for bundling before or after screwing clamp in place
• Miniature cross section – plenum-rated

Product Highlights

This Pan-Ty® locking clamp tie is easy to pick from a flat surface and allows faster initial threading to speed installation.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: PLC1M-S4-C
• Country of Origin: Singapore

Technical Specifications

• Category: Cables, Wires - Management, Cable Ties and Zip Ties
• Length - Actual: 0.358' (109.12mm, 4.30")
• Manufacturer: Panduit Corp
• Mounting Type: Screw Mount, Mounting Hole
• Series: PAN-TY® PLC
• Tensile Strength: 18 lbs (8.16 kg)
• Packaging: Bulk
• Material: Polyamide (PA66), Nylon 6/6
• Part Status: Active
• Color: Natural
• Wire/Cable Tie Type: Standard, Locking
• Bundle Diameter: 0.75" (19.05mm)
• Base Product Number: PLC1M
• Width: 0.100" (2.54mm)
• Length - Approximate: 4.25"
• Cable Tie Material: Nylon 6.6 (Polyamide 6.6)
• Cable Tie Colour: Natural
• Cable Tie Length: 109mm
• Cable Tie Width: 2.5mm
• Cable Bundle Diameter Max: 19mm
• Minimum Loop Tensile Strength: 18lb
• Cable Tie Type: Miniature
• Product Range: PLC Series
• Application: Used to secure a cable bundle to another surface such a control panel, wall or ceiling.
• Use With: GTS-E, GS2B-E
• Screw Size: #4
• Color Family: Natural
• Length: 4.3 in.
• Nominal Length: 4.3 in.
• Max. Temperature Rating: 185
• Product Category: Products Wire & Cable Management Products Cable Ties & Cable Tie Mounts Cable Ties
• Product: Clamp & Locking Cable & Wire Ties
• Product Type: Locking Clamp Ties
• Environment Application: General
• Minimum Bundle Diameter: .06 in, 1.5 mm
• Mounting Hole Width: .23 in, 6.1 mm
• SKU: PANPLC1M-S4-C
