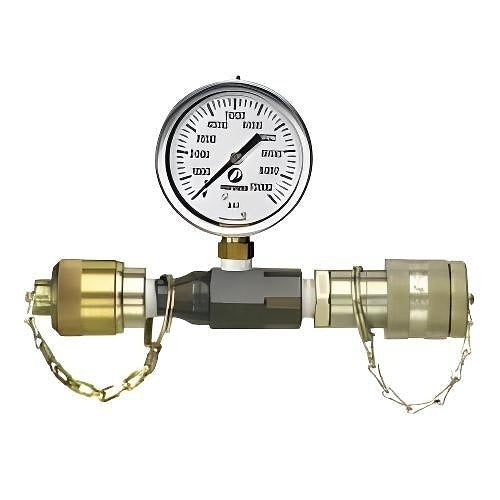

Panduit PG-1SC In-line Low Pressure Gauge

Product Description

The PANDUIT PG-1SC is an in-line low pressure gauge designed for monitoring pressure within a system line. It mounts directly in the flow path, providing a real-time pressure reading without requiring a separate tap or tee fitting. This type of gauge is commonly installed by HVAC technicians, plumbers, and industrial service professionals who need a compact, inline solution for low-pressure system monitoring. The in-line configuration keeps the installation clean and minimizes potential leak points compared to traditional side-port gauge arrangements.

This gauge is suited for low-pressure applications in residential and light commercial environments. It is typically found in HVAC refrigerant circuits, pneumatic control lines, and plumbing systems where low-pressure monitoring is required. The inline design allows it to be installed along an existing line run during new installation or service. Technicians selecting this gauge should verify that the pressure range and connection size are appropriate for the target system before installation.

Key Features

• In-line mounting configuration integrates directly into the system line
• Designed for low-pressure monitoring applications
• Compact form factor suitable for space-constrained installations
• Sold individually as a single unit

Compatibility

Designed as an inline low pressure gauge for use in low-pressure fluid or gas line applications. Verify connection size and pressure range against the target system requirements before installation.

Installation Notes

Installation should be performed by a qualified HVAC technician or plumber familiar with the system being serviced. Depressurize and isolate the system line completely before making any connections to avoid injury or equipment damage. Use appropriate thread sealant or fittings as required by local codes such as the IFGC or IPC. Do not exceed the rated pressure range of the gauge during operation or testing.
