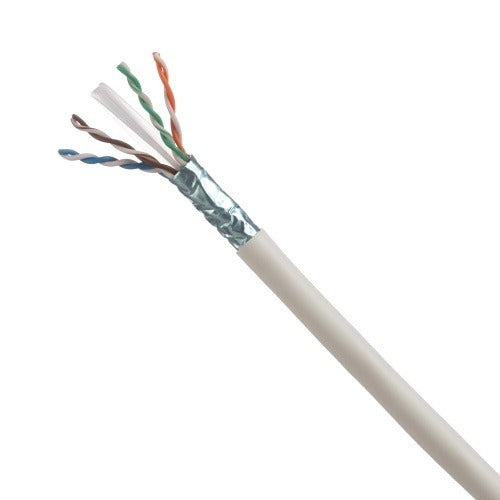

Panduit PFP6X04GR-UG Cat 6a Plenum Copper Cable

Product Description

The PANDUIT PFP6X04GR-UG is a Cat 6a plenum-rated copper network cable designed for structured cabling installations in commercial and enterprise environments. Built with a 4-pair configuration, this cable supports 10 Gigabit Ethernet and meets the performance requirements of the Cat 6a standard. The plenum rating makes it suitable for installation in air-handling spaces where fire and smoke propagation must be limited by code. Licensed low-voltage contractors and network cabling technicians are the primary installers of this cable type.

This cable is intended for use in plenum spaces such as suspended ceiling cavities and raised-floor air-return plenums in commercial buildings. It supports horizontal runs in structured cabling systems built to ANSI/TIA-568 specifications. The 4-pair construction makes it compatible with standard RJ45 terminations and patch panel installations serving data, VoIP, and PoE applications. It is sold as a single unit per purchase.

Key Features

• Cat 6a performance rating supports 10 Gigabit Ethernet up to 100 meters
• Plenum-rated jacket meets fire and smoke requirements for air-handling spaces
• 4-pair copper construction for standard RJ45 termination
• Suitable for data, VoIP, and Power over Ethernet (PoE) applications
• Designed for horizontal structured cabling runs in commercial environments

Compatibility

Designed as an OEM-style plenum Cat 6a cable for use in ANSI/TIA-568-compliant structured cabling systems requiring 4-pair horizontal copper runs in air-handling spaces.

Installation Notes

Installation should be performed by a licensed low-voltage or network cabling contractor in accordance with ANSI/TIA-568 and applicable local fire and building codes. De-energize any adjacent active equipment before pulling cable through conduit or ceiling spaces. Do not exceed the cable minimum bend radius or maximum pull tension during installation, as doing so can degrade high-frequency signal performance. Plenum-rated cable must be used in any air-handling plenum space as required by the National Electrical Code (NEC).
