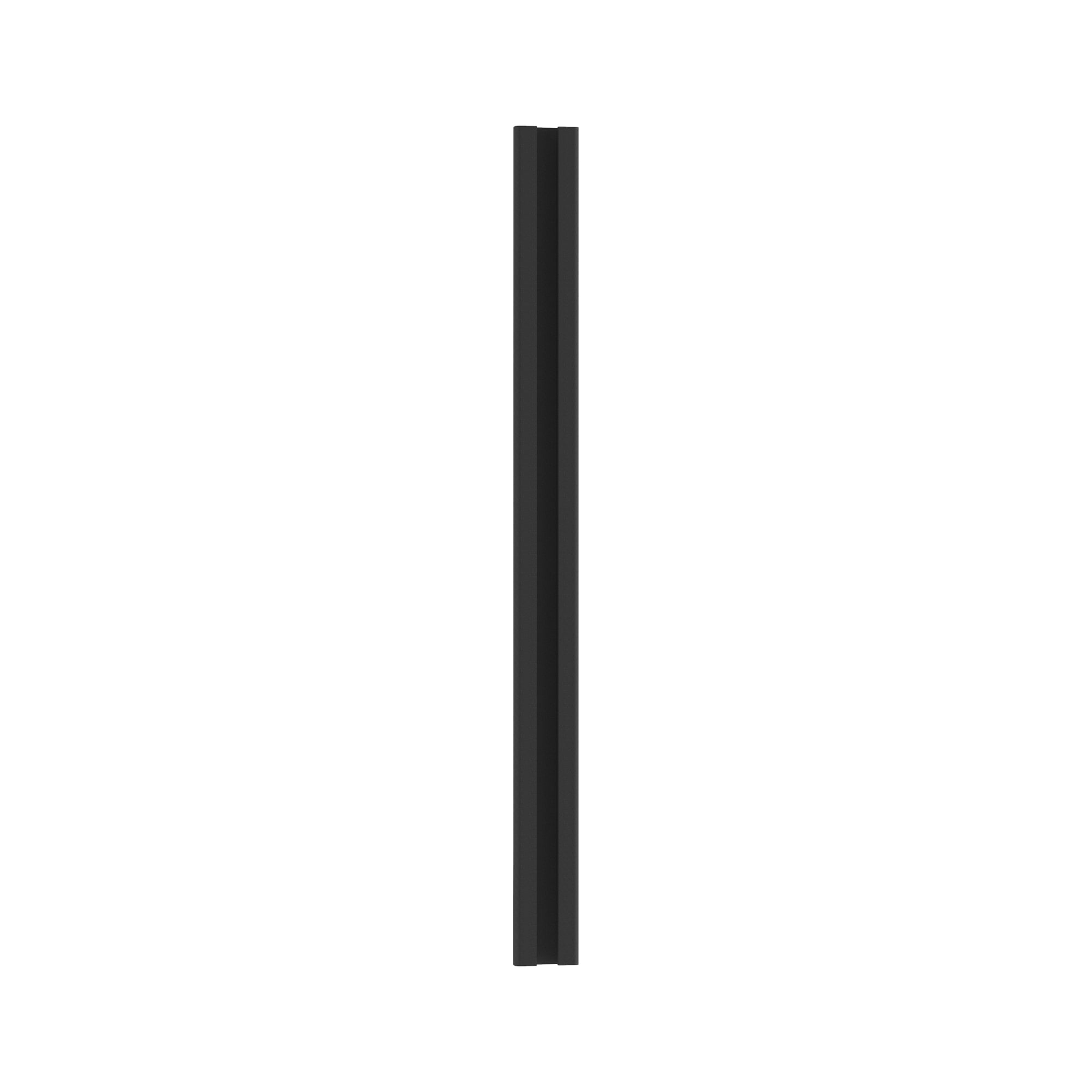

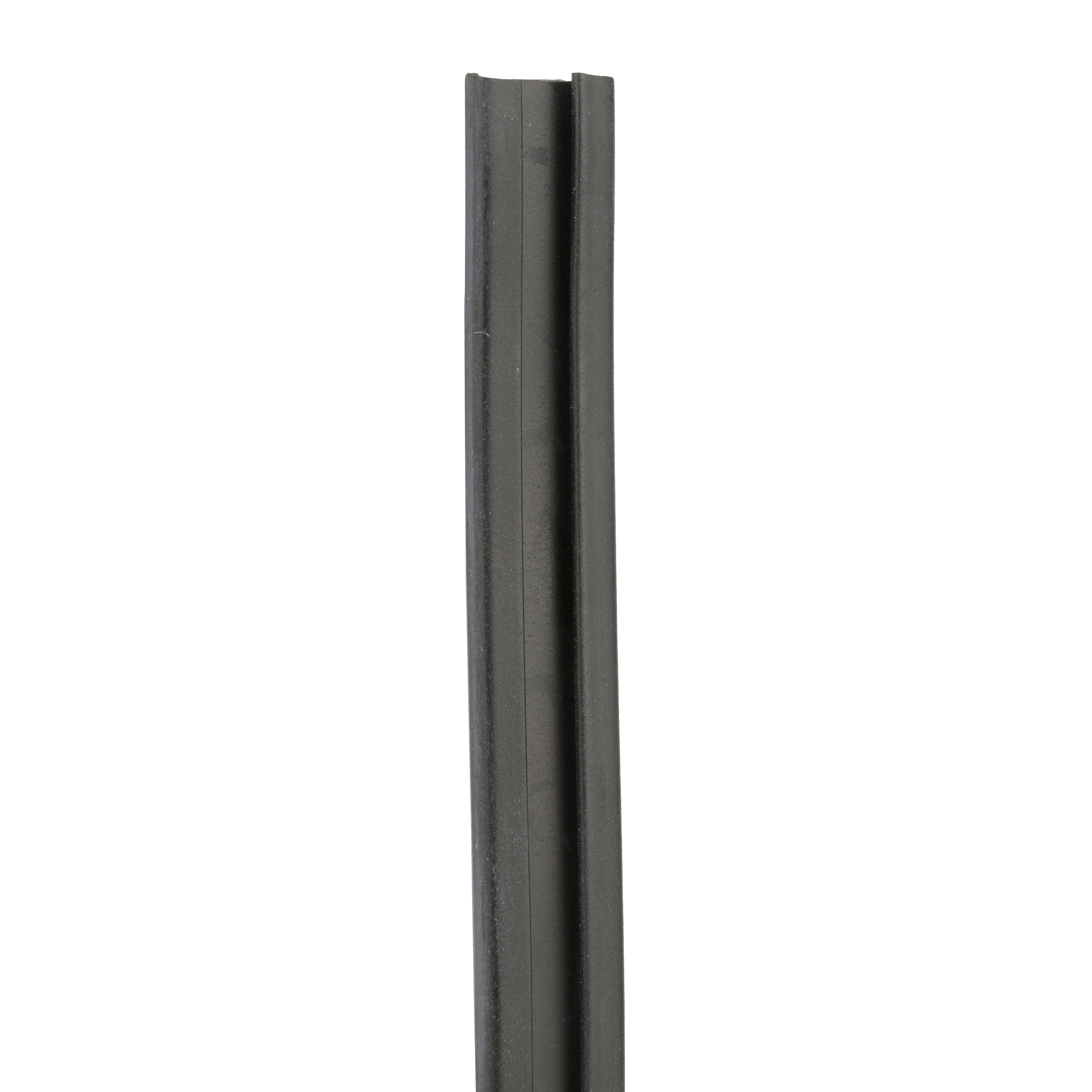

Panduit PCSH-B-CR Cushion Sleeving (0.47 in W x 100 ft L)

Product Description

Panduit PCSH-B-CR is a neoprene cushion sleeving supplied on 100 ft reels and measuring 0.47 in (11.9 mm) wide. The C-shaped channel profile provides cushioning for metal locking strap and buckle strap cable cleats, light and heavy cross-section ties, and custom-length banding systems for indoor and outdoor cable management. The sleeving meets UL94 V-0 flammability requirements.

• C-shaped channel neoprene sleeving, 0.47 in (11.9 mm) width, supplied on 100 ft (1200 in / 30.5 m) reels
• Compatible with metal locking strap and buckle strap cable cleats, MLTLH and MLTH ties, light and heavy cross-section ties, and mild steel strapping
• UL94 V-0 flammability rating; chemical, fuel, and UV resistant; suitable for indoor/outdoor use

Product Highlights

Neoprene C-shaped cushion sleeving; 0.47 in x 100 ft; indoor/outdoor use; Made in USA

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: PCSH-B-CR
• Country of Origin: United States

Technical Specifications

• Brand: Panduit
• Manufacturer: Panduit
• Manufacturer Part Number: PCSH-B-CR
• Series: Pan-Steel
• Product Type: Cable cleat cushion sleeve
• Material: Neoprene

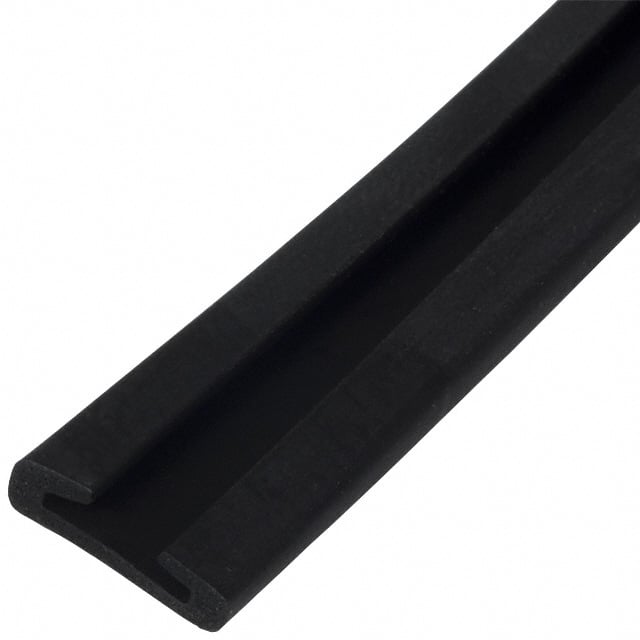

• Channel Profile: C-shaped
• Width: 0.47 in (11.9 mm)
• Length: 100 ft (1200 in / 30.5 m)
• Height: 0.13 in
• Operating Temperature Range: -112°F to 1000°F (as stated) — value flagged as likely incorrect for neoprene; see notes
• Flammability Rating: UL94 V-0
• For Use With: Metal locking strap and buckle strap cable cleats; MLTLH; MLTH; light and heavy cross-section ties; mild steel strapping
• Environment/Application: Indoor/Outdoor
• Country of Origin: United States
• RoHS Status: ROHS3 Compliant
• REACH Status: REACH Unaffected
• Packaging: Supplied on 100 ft reel; sold individually
• Unit Of Measure: Each
• Item Type: Cable Cleat Cushion Sleeve
• Sub Brand: Pan-Steel
• UPC: 074983544318
• GTIN: 00074983544318
• DigiKey Part Number: 298-1104-ND
• Features: Chemical resistant; Fuel resistant; UV resistant; Indoor/Outdoor use
