Panduit PCSB250-3S-6Y Multi-Tap Mech Con 600VAC 1 Each

Product Description

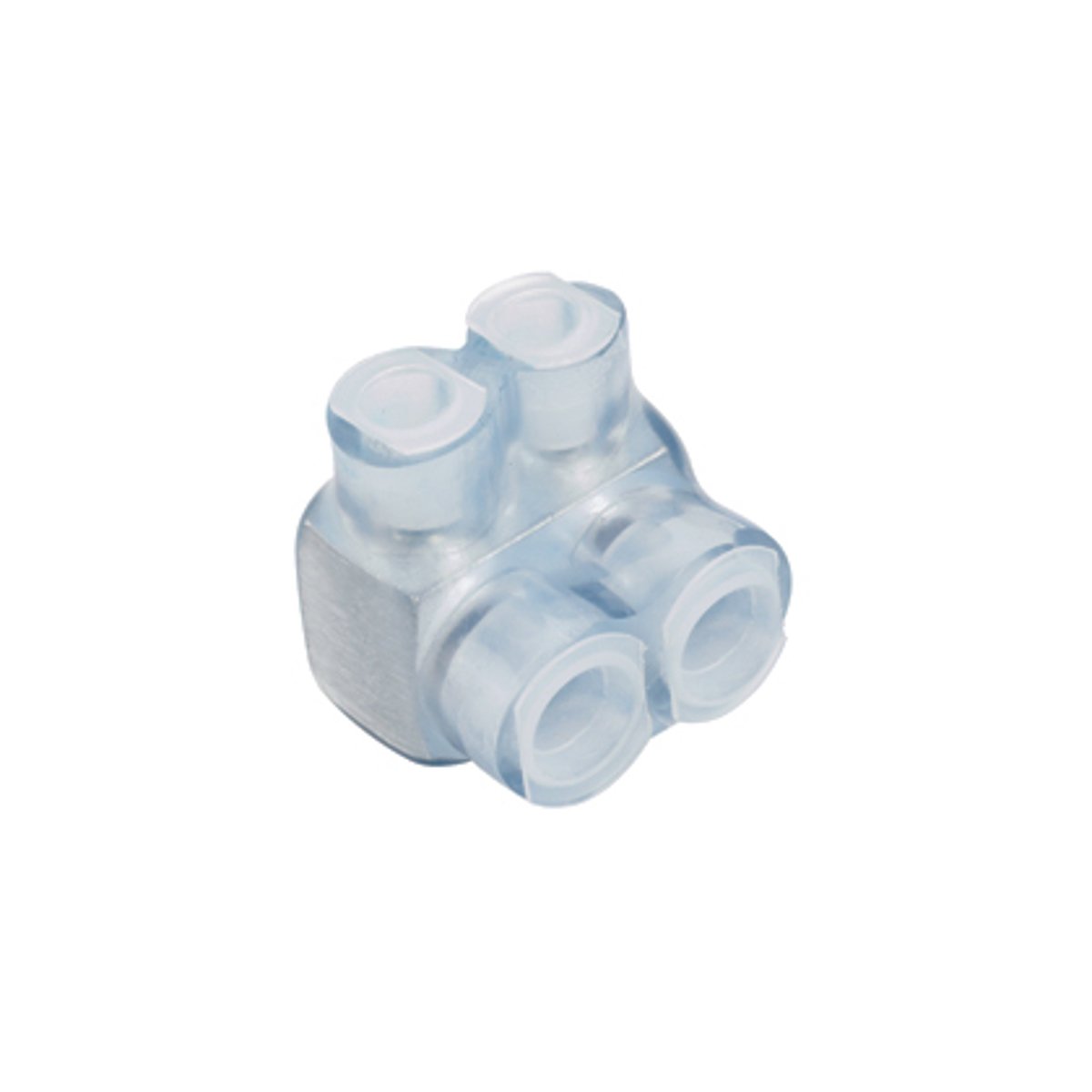

The Panduit PCSB250-3S-6Y is a Multi-Tap Mechanical Connector designed for reliable electrical connections. It has a single-sided structure with three ports suitable for 10 AWG to 250 kcmil stranded conductors. The connector features clear PVC insulation, allowing for visual inspection of the conductor insertion.

• Single-sided multi-tap configuration
• Three ports for versatile connections
• Clear PVC insulation for protection and visibility

Product Highlights

The Panduit PCSB250-3S-6Y is engineered for easy installation and maintenance. It is ideal for use with aluminum or copper code conductors.

Product Information

Standard Information

• Catalog Number: PCSB250-3S-6Y
• Manufacturer: Panduit

Technical Specifications

• Voltage Rating: 600 VAC
• Temperature Rating: 90 degrees Celsius
• Material: Aluminum/PVC
• Dimensions: 2.97 inches (length) x 2 inches (width) x 2.13 inches (height)
• Conductor Size: 10 AWG to 250 kcmil stranded
• Installation Type: Screw
• Country of Origin: United States
